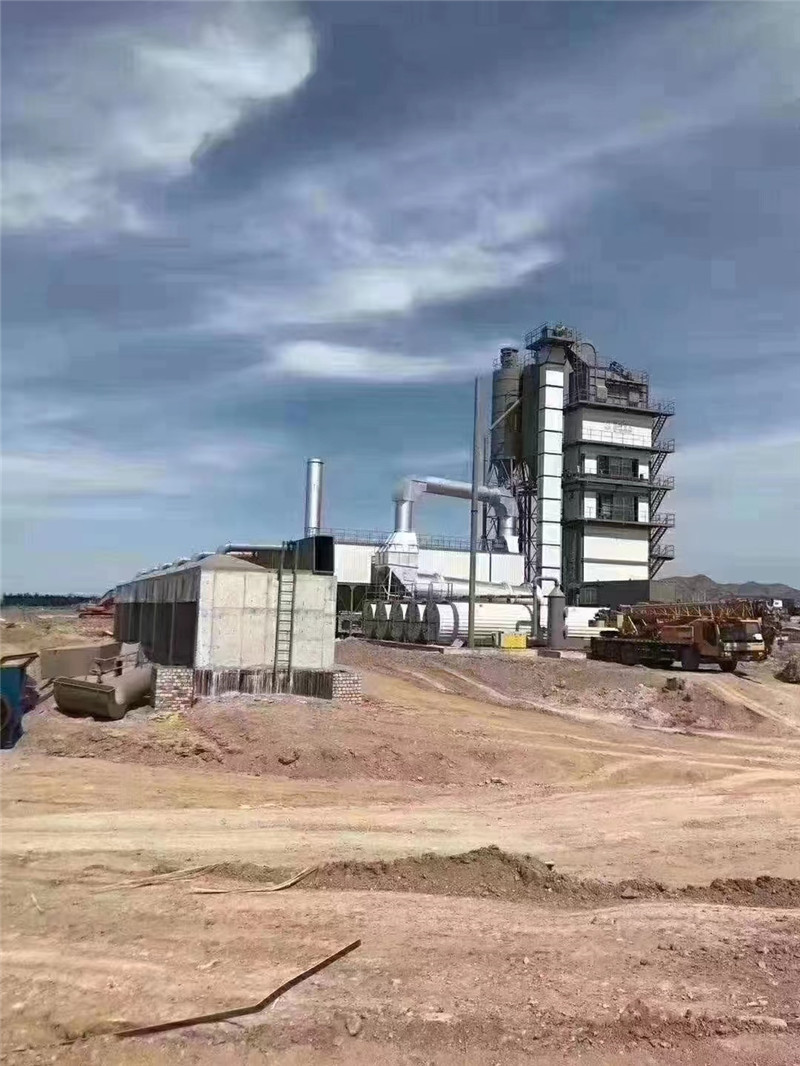

Asphalt Concrete Mixing Plant is a continuous asphalt mixing plant of large capacity, which can reach up to 3-8% filler content. It comes with a wide range of voltage options such as 220V, 380V, 440V and 480V to meet different needs. It also has a dust collection system like bag filter, wet dust collector, and cyclone dust collector, which is ideal for a safe and clean working environment. The aggregate size of Asphalt Concrete Mixing Plant can reach up to 0-60mm. It is a reliable and efficient asphalt mixing plant that helps to ensure the highest quality of asphalt concrete for construction roads. With its advanced features and high performance, Asphalt Concrete Mixing Plant is the perfect choice for any asphalt mixing project.
The agitator is made of high-strength and wear-resistant materials, which greatly improves its service life. We adopt the first-stage cyclone dust removal system, the second-stage water-type dust collector system and the negative pressure dust-proof design of the building. This not only reduces investment costs for customers, but is also economical and practical. The linear vibrating screen, driven by imported vibrating electric drives, improves sceening efficiency and reduces the failure rate of equipment. The aggregate hoist adopts plate chain hoisting, increasing the service life of the hoist and the stability of operation. The optimization of the structure of the drying drum's lifting plate allows the drying system to be more efficient and more reliable. This whole machine adopts a modular design, making handling and installation faster and more convenient. The computer/manual control system has a full-automatic setting complemented by a fault self-diagnosis and feedback program to ensure a simple and safe operation.
| Item | ||
| Production capacity (t/h) | 120 | 160 |
| Capacity per pot (kg) | 1800 | 2000 |
| Total installed capacity (kw) | 360 | 490 |
| Sand and gravel material (four kinds of material accumulation) metering accuracy | ± 0.5% | ± 0.5% |
| Powder (two kinds of material accumulation) measuring accuracy | ± 0.5% | ± 0.5% |
| Asphalt metering accuracy | ± 0.3% | ± 0.3% |
| Temperature control accuracy (℃) | ≤± 5 | ≤± 5 |
| Dust prevention efficiency (mg/Nm3) | ≤100 | ≤100 |
| Doser length × width (m) | 2.0 × 3.3 | 2.45 × 3.6 |
| Hopper capacity (m3) | 7 | 11.3 |
| Aggregate belt machine width (mm) | 500 | 650 |
| Aggregate belt machine power (kw) | 5.5 | 7.5 |
| Drying cylinder diameter × length | 1.8×6.54 | 2.2×8.0 |
| Drying cylinder power (kw) | 30 | 11×4 |
| Vibrating screen length×width(m) | 4.0×1.5 | 5×1.8 |
| Vibrating screen power (kw) | 5.5×2 | 11×2 |
| Weighing hopper stone capacity (kg) | 1500 | 2000 |
| Weighing hopper powder capacity (kg | 250 | 350 |
| Weighing hopper asphalt capacity (kg) | 200 | 300 |
| Mixing pot capacity (kg) | 1500 | 2000 |
| Mixing pot power (kw) | 37 | 75 |
Beian asphalt mixing plant is made in China and is renowned for its large capacity and excellent quality. It features a twin-shaft mixer, providing stable and homogeneous asphalt concrete mixing, as well as a smart control system with filler moisture content ≤2%. This asphalt batching plant can be used for continuous asphalt mixing, and it is available in 220V/380V/440V/480V voltage. With its advanced technologies, Beian asphalt mixing plant is an ideal choice for large-scale construction projects.
Asphalt Mixing Plant Technical Support and Service
A1: The Brand Name of the Asphalt Mixing Plant is Beian, which is made in China.
A2: Asphalt Mixing Plant is designed for easy operation, high efficiency, low fuel consumption, low noise and environmental protection.
A3: The capacity of Asphalt Mixing Plant ranges from 20t/h to 400t/h.
A4: Asphalt Mixing Plant is suitable for urban and rural roads, highways, airports and other engineering projects.
A5: Asphalt Mixing Plant mainly consists of mixing tower, hot aggregate bin, hot aggregate elevator, vibrating screen, weighing system, mixing system, asphalt supply system, dust collector, control system and other components.
