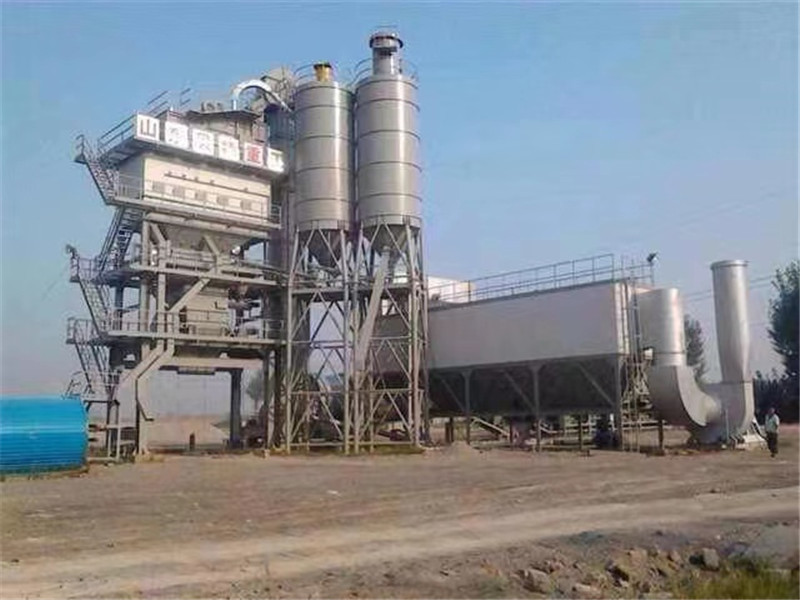

Asphalt Concrete Mixing Plant
Details:
Asphalt mixing plant, also known as asphalt concrete mixing plant. It Refers to the complete set of equipment for mass production of asphalt concrete. According to the mixing method, it can be divided into forced batch type and continuous production type; according to the handling method, it can be divided into fixed type, semi-fixed type and mobile type.
The product Specification :
1. According to production capacity can be divided into: small, medium and large.
The Application
Asphalt mixing plant, also known as asphalt concrete mixing plant, refers to a complete set of equipment for mass production of asphalt concrete. It can produce asphalt mixture, modified asphalt mixture, and colored asphalt mixture. It is an important equipment for municipal roads, airports and ports.
Specifications:
| Item | ||
| Production capacity (t/h) | 120 | 160 |
| Capacity per pot (kg) | 1800 | 2000 |
| Total installed capacity (kw) | 360 | 490 |
| Sand and gravel material (four kinds of material accumulation) metering accuracy | ± 0.5% | ± 0.5% |
| Powder (two kinds of material accumulation) measuring accuracy | ± 0.5% | ± 0.5% |
| Asphalt metering accuracy | ± 0.3% | ± 0.3% |
| Temperature control accuracy (℃) | ≤± 5 | ≤± 5 |
| Dust prevention efficiency (mg/Nm3) | ≤100 | ≤100 |
| Doser length × width (m) | 2.0 × 3.3 | 2.45 × 3.6 |
| Hopper capacity (m3) | 7 | 11.3 |
| Aggregate belt machine width (mm) | 500 | 650 |
| Aggregate belt machine power (kw) | 5.5 | 7.5 |
| Drying cylinder diameter × length | 1.8×6.54 | 2.2×8.0 |
| Drying cylinder power (kw) | 30 | 11×4 |
| Vibrating screen length×width(m) | 4.0×1.5 | 5×1.8 |
| Vibrating screen power (kw) | 5.5×2 | 11×2 |
| Weighing hopper stone capacity (kg) | 1500 | 2000 |
| Weighing hopper powder capacity (kg | 250 | 350 |
| Weighing hopper asphalt capacity (kg) | 200 | 300 |
| Mixing pot capacity (kg) | 1500 | 2000 |
| Mixing pot power (kw) | 37 | 75 |
Competitive Advantage:
1. The agitator is made of high-strength and wear-resistant materials, which improves the service life.
2. It is economical and practical that we adopt the first-stage cyclone dust removal system, the second-stage water-type dust collector system and the negative pressure dust-proof design of the building . And it also reduces investment costs for customers
3. The linear vibrating screen driven by imported vibrating electric drives improves the screening efficiency and reduces the failure rate of equipment.
4. The aggregate hoist adopts plate chain hoisting, which increases the service life of the hoist and improves the stability of operation.
5. The optimized structure of the lifting plate of the drying drum makes the drying system more efficient and stable.
6. The whole machine adopts modular design, which makes handling and installation faster and more convenient
7. Fully automatic computer/manual control system, with fault self-diagnosis feedback program, make the operation simple and safe.
