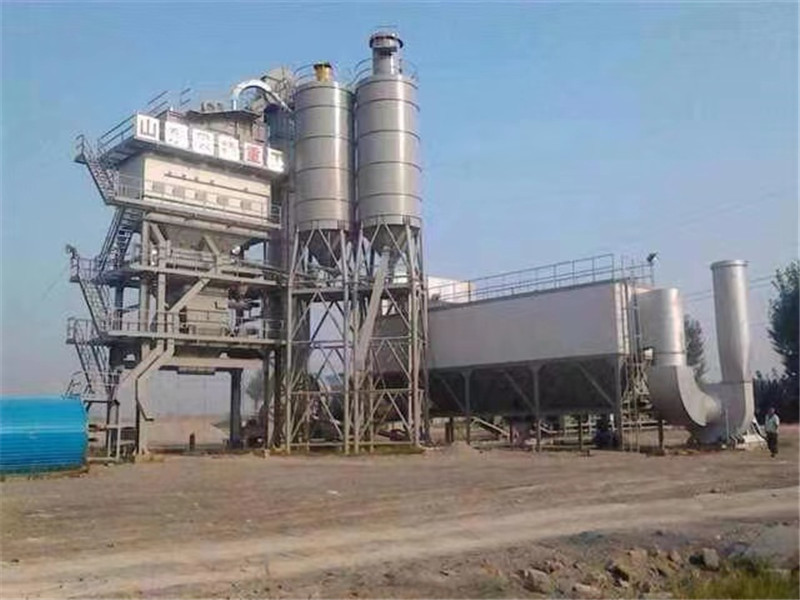

Asphalt Mixing Plant is a type of asphalt batching plant that is used for mixing bitumen and other materials to produce asphalt. It has a large capacity of mixing asphalt and features environmental protection with its dust collection system. It has a mixing time of 30-45 seconds, making it a reliable and efficient plant. The dust collection system has options of bag filter, wet dust collector, and cyclone dust collector. As asphalt mixing plant is the ideal choice for bitumen mixing station, asphalt batching plant, and asphalt production.
The agitator is made of high-strength and wear-resistant materials, which increases its service life. For customers, it is economical and practical to employ the first-stage cyclone dust removal system, the second-stage water-type dust collector system and the negative pressure dust-proof design. Moreover, it reduces investment costs. The linear vibrating screen is driven by imported vibrating electric drivers. This enhances the screening efficiency and lowers the failure rate of gear. In addition, the aggregate hoist utilizes plate chain hoisting, which escalates the service life of the hoist and improves the operation stability.Optimization of the lifting plate of the drying drum makes the drying device more efficient and stable.
Moreover, all the parts are designed modularly, which ensures fast and hassle-free handling and installation. Lastly, fully automatic computer/manual control system, with fault self-diagnosis feedback program, sets the operation simple and secure.
| Item | ||
| Production capacity (t/h) | 120 | 160 |
| Capacity per pot (kg) | 1800 | 2000 |
| Total installed capacity (kw) | 360 | 490 |
| Sand and gravel material (four kinds of material accumulation) metering accuracy | ± 0.5% | ± 0.5% |
| Powder (two kinds of material accumulation) measuring accuracy | ± 0.5% | ± 0.5% |
| Asphalt metering accuracy | ± 0.3% | ± 0.3% |
| Temperature control accuracy (℃) | ≤± 5 | ≤± 5 |
| Dust prevention efficiency (mg/Nm3) | ≤100 | ≤100 |
| Doser length × width (m) | 2.0 × 3.3 | 2.45 × 3.6 |
| Hopper capacity (m3) | 7 | 11.3 |
| Aggregate belt machine width (mm) | 500 | 650 |
| Aggregate belt machine power (kw) | 5.5 | 7.5 |
| Drying cylinder diameter × length | 1.8×6.54 | 2.2×8.0 |
| Drying cylinder power (kw) | 30 | 11×4 |
| Vibrating screen length×width(m) | 4.0×1.5 | 5×1.8 |
| Vibrating screen power (kw) | 5.5×2 | 11×2 |
| Weighing hopper stone capacity (kg) | 1500 | 2000 |
| Weighing hopper powder capacity (kg | 250 | 350 |
| Weighing hopper asphalt capacity (kg) | 200 | 300 |
| Mixing pot capacity (kg) | 1500 | 2000 |
| Mixing pot power (kw) | 37 | 75 |
Beian Bitumen Mixing Plant, also known as asphalt batching plant, is a type of Asphalt Concrete Mixing Plant used for producing hot-mix asphalt. It is manufactured by Beian, a leading asphalt equipment manufacturer in China. This bitumen mixing plant is designed to provide maximum efficiency and minimum fuel consumption. It has a mixing cycle of 45s-60s, and can accommodate a filler content of 3-8%. It can also be powered by different fuel types, such as diesel, natural gas, coal, and heavy oil.
Beian Bitumen Mixing Plant is renowned for its high efficiency and power. It is also praised for its environmental protection capabilities, making it an ideal choice for the construction industry. With its advanced technology and reliable performance, Beian Bitumen Mixing Plant sets the standard for asphalt mixing plants.
We provide excellent technical support and service for Asphalt Mixing Plant. Our service includes:
Our technical team is always ready to answer any of your questions and provide necessary technical support throughout the whole life cycle of the product.
