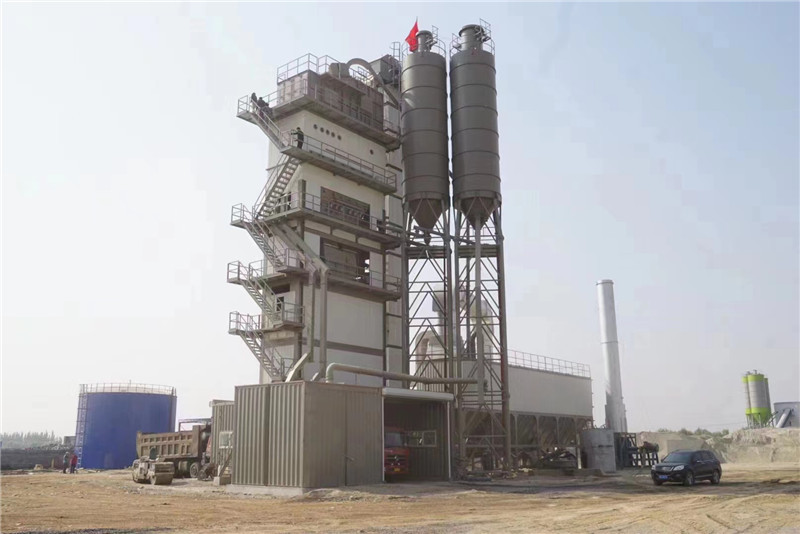

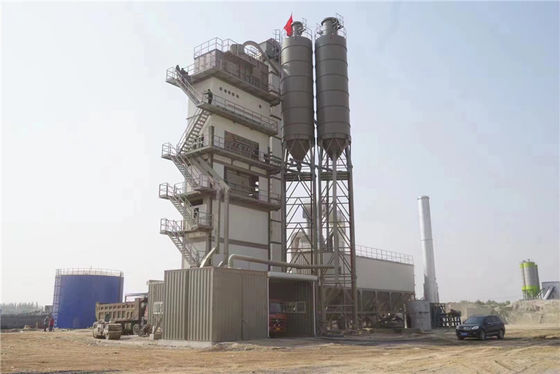

Asphalt Mixing Plant is an efficient bitumen mixing plant designed for asphalt batching. It adopts advanced technology and high-tech components to ensure high productivity, energy efficiency and dust collection system. It has features of high-precision mixing, high-efficiency production, fully automated control, and high-precision weighing. It can be used as Asphalt Concrete Mixing Plant for mixing asphalt, bitumen and other materials. The plant can be equipped with various types of dust collection system such as bag filter, wet dust collector and cyclone dust collector. It has a mixing cycle of 45s-60s, and the filler content can be adjusted to 3-8%.
The agitator is made of high-strength and wear-resistant materials, which has an improved service life.
It is both economical and practical that adopts the first-stage cyclone dust removal system, the second-stage water-type dust collector system and the negative pressure dust-proof design of the building. Moreover, it reduces the investment costs for customers.
The screening efficiency is improved and the failure rate of equipment is decreased with the Linear vibrating screen that is driven by imported vibrating electric drives.
The aggregate hoist adopts plate chain hoisting, which increases the service life of the hoist and stabilizes the operation.
The optimization in the lifting plate of the drying drum raises the efficiency and stableness of the drying system.
Modular design is adopted in the entire machine, which shortens handling and installation time.
Fully automatic computer/manual control system is applied along with fault self-diagnosis feedback program, making the operation safer and more effortless.
| Item | ||
| Production capacity (t/h) | 120 | 160 |
| Capacity per pot (kg) | 1800 | 2000 |
| Total installed capacity (kw) | 360 | 490 |
| Sand and gravel material (four kinds of material accumulation) metering accuracy | ± 0.5% | ± 0.5% |
| Powder (two kinds of material accumulation) measuring accuracy | ± 0.5% | ± 0.5% |
| Asphalt metering accuracy | ± 0.3% | ± 0.3% |
| Temperature control accuracy (℃) | ≤± 5 | ≤± 5 |
| Dust prevention efficiency (mg/Nm3) | ≤100 | ≤100 |
| Doser length × width (m) | 2.0 × 3.3 | 2.45 × 3.6 |
| Hopper capacity (m3) | 7 | 11.3 |
| Aggregate belt machine width (mm) | 500 | 650 |
| Aggregate belt machine power (kw) | 5.5 | 7.5 |
| Drying cylinder diameter × length | 1.8×6.54 | 2.2×8.0 |
| Drying cylinder power (kw) | 30 | 11×4 |
| Vibrating screen length×width(m) | 4.0×1.5 | 5×1.8 |
| Vibrating screen power (kw) | 5.5×2 | 11×2 |
| Weighing hopper stone capacity (kg) | 1500 | 2000 |
| Weighing hopper powder capacity (kg | 250 | 350 |
| Weighing hopper asphalt capacity (kg) | 200 | 300 |
| Mixing pot capacity (kg) | 1500 | 2000 |
| Mixing pot power (kw) | 37 | 75 |
Beian asphalt mixing plant is a kind of asphalt concrete mixing plant with brand name of Beian, which is manufactured in China. It has voltage of 220V/380V/440V/480V and can be controlled by both automatic and manual systems. It has a maximum filler moisture of 2% and is equipped with a highly efficient power system. Moreover, it is equipped with a double-shaft mixer, which makes it a top choice for bitumen mixing plant, asphalt concrete mixing plant, as well as asphalt mixing station.
We have a dedicated team of technical experts that provide comprehensive technical support and services for our asphalt mixing plants. Our experts have extensive knowledge and experience in all aspects of asphalt plant maintenance and operations, and provide a range of support services, including:
Q1. What is Asphalt Mixing Plant?
A1. Asphalt Mixing Plant is a kind of equipment that is used to produce hot-mix asphalt mixture, which is a combination of aggregate, filler, asphalt, and other materials. It is manufactured by Beian, a Chinese brand.
Q2. What are the benefits of using Asphalt Mixing Plant?
A2. Asphalt Mixing Plant offers numerous benefits, such as improved pavement quality, better road surface, reduced construction time, better fuel economy, and less environmental impact.
Q3. What are the components of Asphalt Mixing Plant?
A3. Asphalt Mixing Plant includes a cold aggregate feeder, a drying drum, an oil burner, a dust collector, a hot aggregate elevator, a vibrating screen, a mixing tower, and a control system.
Q4. What is the capacity of Beian Asphalt Mixing Plant?
A4. Beian Asphalt Mixing Plant offers a wide range of capacity, ranging from 40t/h to 320t/h.
Q5. Is Asphalt Mixing Plant easy to operate?
A5. Yes, Beian Asphalt Mixing Plant is designed with user-friendly operation interface, so even beginners can quickly get familiar with the operation of the equipment.
