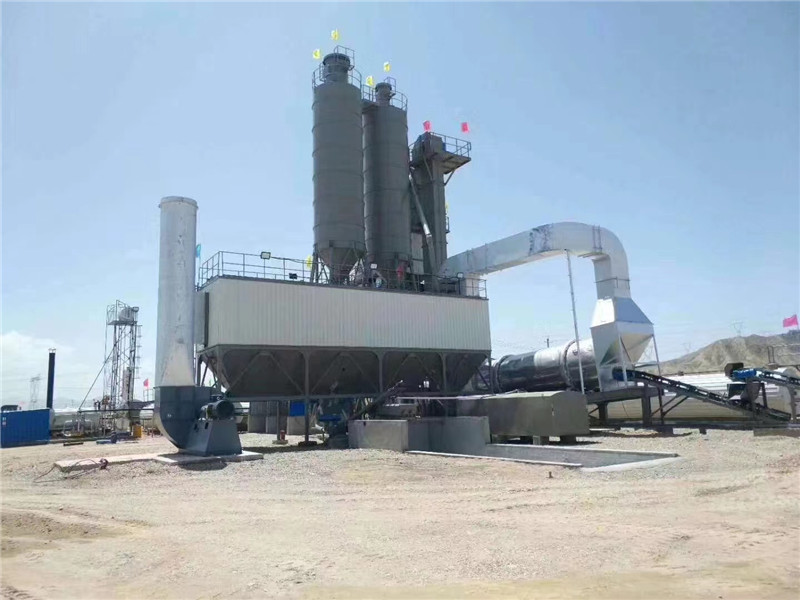

The Asphalt Mixing Plant is a continuous asphalt mixing plant that is specifically designed to produce asphalt concrete for construction and road repair purposes. It consists of a twin-shaft mixer, a large capacity filler moisture of up to 2%, a dust collection system of either bag filter, wet dust collector or cyclone dust collector, and a capacity large enough to meet large construction and road repair needs. This asphalt mixing plant is the ideal solution for a variety of construction projects such as highways, bridges, airports, and tunnels.
The plant is also equipped with advanced technologies such as the asphalt batching plant and the Asphalt Concrete Mixing Plant, which allow for efficient and accurate production of asphalt concrete. In addition to this, the plant is equipped with advanced safety features such as an automated shut-off system and an emergency stop switch in case of an emergency.
The Asphalt Mixing Plant is a reliable and efficient solution for any construction or road repair project. Its large capacity, advanced technologies and safety features make it the ideal choice for any project.
The agitator is made of high-strength and wear-resistant materials, which improves the service life and makes the machine economical and practical.
We adopt the first-stage cyclone dust removal system, the second-stage water-type dust collector system and the negative pressure dust-proof design of the building, which reduces investment costs for customers.
The linear vibrating screen driven by imported vibrating electric drives improves the screening efficiency and reduces the failure rate of equipment.
The aggregate hoist adopts plate chain hoisting, which increases the service life of the hoist and improves the stability of operation.
The optimized structure of the lifting plate of the drying drum makes the drying system more efficient and stable.
The whole machine adopts modular design, which makes handling and installation faster and more convenient.
Fully automatic computer/manual control system, with fault self-diagnosis feedback program, make the operation simple and safe.
| Item | ||
| Production capacity (t/h) | 120 | 160 |
| Capacity per pot (kg) | 1800 | 2000 |
| Total installed capacity (kw) | 360 | 490 |
| Sand and gravel material (four kinds of material accumulation) metering accuracy | ± 0.5% | ± 0.5% |
| Powder (two kinds of material accumulation) measuring accuracy | ± 0.5% | ± 0.5% |
| Asphalt metering accuracy | ± 0.3% | ± 0.3% |
| Temperature control accuracy (℃) | ≤± 5 | ≤± 5 |
| Dust prevention efficiency (mg/Nm3) | ≤100 | ≤100 |
| Doser length × width (m) | 2.0 × 3.3 | 2.45 × 3.6 |
| Hopper capacity (m3) | 7 | 11.3 |
| Aggregate belt machine width (mm) | 500 | 650 |
| Aggregate belt machine power (kw) | 5.5 | 7.5 |
| Drying cylinder diameter × length | 1.8×6.54 | 2.2×8.0 |
| Drying cylinder power (kw) | 30 | 11×4 |
| Vibrating screen length×width(m) | 4.0×1.5 | 5×1.8 |
| Vibrating screen power (kw) | 5.5×2 | 11×2 |
| Weighing hopper stone capacity (kg) | 1500 | 2000 |
| Weighing hopper powder capacity (kg | 250 | 350 |
| Weighing hopper asphalt capacity (kg) | 200 | 300 |
| Mixing pot capacity (kg) | 1500 | 2000 |
| Mixing pot power (kw) | 37 | 75 |
Beian Asphalt Concrete Mixing Plant is a highly efficient, reliable and durable asphalt batching plant that can meet various requirements for road construction projects. It is equipped with the latest automatic control system and dust collection system, such as bag filter, wet dust collector and cyclone dust collector, to ensure the best performance. The filler moisture of the plant is ≤2%, and the mixing time is 30s-45s. It is designed with high power efficiency and its brand name is Beian. It is made in China and is one of the best asphalt mixing plants in the market.
Asphalt Mixing Plant Technical Support and Service
We provide professional technical support and service for Asphalt Mixing Plant. Our team of experts are available to assist you with any technical problems you may have. We provide quick response times and our team of professionals are ready to help you with any technical needs.
We also provide scheduled maintenance to keep your Asphalt Mixing Plant running smoothly and efficiently. We use only the highest quality parts and components to ensure your plant operates at its peak performance. We provide detailed service reports to ensure your plant is running properly and efficiently.
If you have any questions or concerns about your Asphalt Mixing Plant, please do not hesitate to contact us. We are here to help you and ensure your plant is running at its best.
