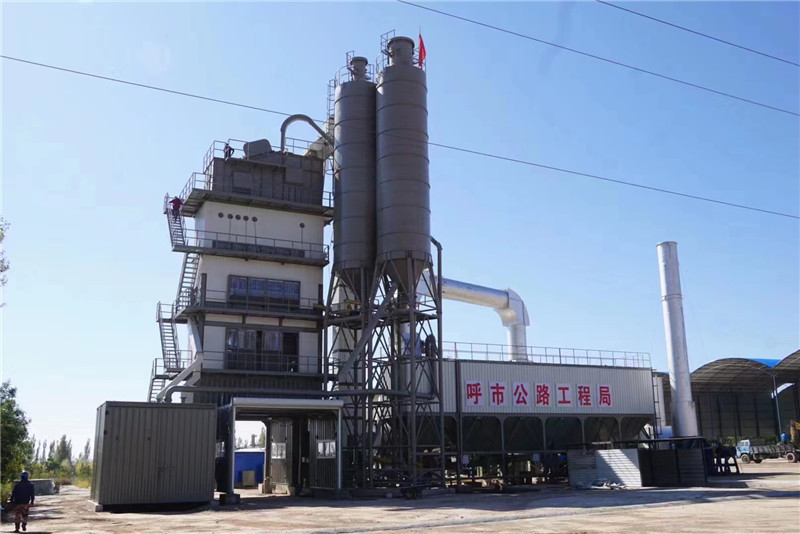

Asphalt Mixing Plant is an important bitumen mixing station for producing asphalt concrete and other related construction materials. It is equipped with a dust collection system, including bag filter, wet dust collector and cyclone dust collector, which can effectively reduce the dust emission. Moreover, the voltage of the plant can be 220V, 380V, 440V or 480V, and its power efficiency is high. The moisture content of the aggregate is strictly controlled to be less than 3%, and it is equipped with a twin-shaft mixer to ensure the quality of the asphalt concrete.
Asphalt Mixing Plant is a highly reliable asphalt concrete mixing station with a wide range of applications in construction projects. It is capable of producing high-quality asphalt mixtures in various proportions according to the requirements of different construction projects. It is widely used in the construction of roads, bridges, tunnels, airports, and other large-scale infrastructure projects. With its superior performance, Asphalt Mixing Plant has become the preferred choice of many construction companies and contractors.
The agitator is made of high-strength and wear-resistant materials, which improves the service life and increases efficiency.
We adopt the first-stage cyclone dust removal system, the second-stage water-type dust collector system and the negative pressure dust-proof design of the building, which is economical and practical. It also reduces investment costs for customers.
The linear vibrating screen is driven by imported vibrating electric drives, which improve the screening efficiency and reduces the failure rate of equipment.
The aggregate hoist adopts plate chain hoisting, which not only increases the service life of the hoist but also improves the stability of operation.
The optimized structure of the lifting plate of the drying drum makes the drying system more efficient and stable.
The whole machine adopts modular design, making handling and installation faster and more convenient.
Fully automatic computer/manual control system, with fault self-diagnosis feedback program, make the operation simple and safe.
| Item | ||
| Production capacity (t/h) | 120 | 160 |
| Capacity per pot (kg) | 1800 | 2000 |
| Total installed capacity (kw) | 360 | 490 |
| Sand and gravel material (four kinds of material accumulation) metering accuracy | ± 0.5% | ± 0.5% |
| Powder (two kinds of material accumulation) measuring accuracy | ± 0.5% | ± 0.5% |
| Asphalt metering accuracy | ± 0.3% | ± 0.3% |
| Temperature control accuracy (℃) | ≤± 5 | ≤± 5 |
| Dust prevention efficiency (mg/Nm3) | ≤100 | ≤100 |
| Doser length × width (m) | 2.0 × 3.3 | 2.45 × 3.6 |
| Hopper capacity (m3) | 7 | 11.3 |
| Aggregate belt machine width (mm) | 500 | 650 |
| Aggregate belt machine power (kw) | 5.5 | 7.5 |
| Drying cylinder diameter × length | 1.8×6.54 | 2.2×8.0 |
| Drying cylinder power (kw) | 30 | 11×4 |
| Vibrating screen length×width(m) | 4.0×1.5 | 5×1.8 |
| Vibrating screen power (kw) | 5.5×2 | 11×2 |
| Weighing hopper stone capacity (kg) | 1500 | 2000 |
| Weighing hopper powder capacity (kg | 250 | 350 |
| Weighing hopper asphalt capacity (kg) | 200 | 300 |
| Mixing pot capacity (kg) | 1500 | 2000 |
| Mixing pot power (kw) | 37 | 75 |
The Beian Asphalt Mixing Plant from China is a powerful and efficient asphalt batching plant that offers superior performance for continuous asphalt mixing. With an impressive capacity that is large, this Asphalt Concrete Mixing Plant is capable of delivering high performance and excellent quality. Its filler moisture is ≤2%, and its aggregate size is 0-60mm. In addition, it offers superior power and efficiency.
We provide comprehensive technical support and service for Asphalt Mixing Plant. Our qualified engineers are available to answer your questions and provide technical advice. We can also provide spare parts and on-site maintenance services.
Our support services include:
We are committed to providing the best technical support and service for Asphalt Mixing Plant and look forward to working with you.
