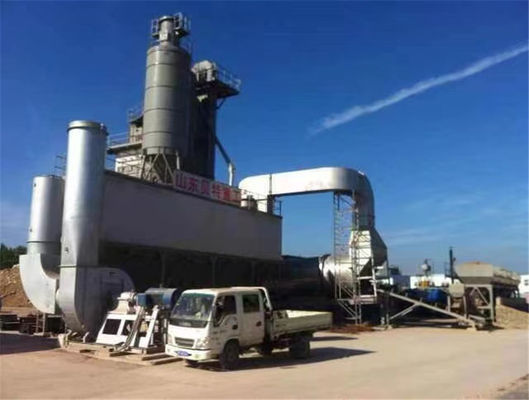

Asphalt Concrete Mixing Plant, also known as a continuous asphalt mixing plant, bitumen mixing plant, is an advanced aggregate moisture control system, power efficiency, dust collection system, with filler content of 3-8% and aggregate size of 0-60mm. It is designed to provide high-quality asphalt mixture for foundation, roads, highways, airports and other projects. Our asphalt mixing plant has a dust collection system, such as a bag filter, wet dust collector, and cyclone dust collector, to reduce pollution and provide a safe operating environment. It also provides an efficient power system to ensure high energy efficiency, and its aggregate moisture control system can ensure the moisture of asphalt mix does not exceed 3%. With these features, the asphalt mixing plant is a reliable and cost-effective choice for any project.
The agitator is made of high-strength and wear-resistant materials, which improves the service life. The construction features a first-stage cyclone dust removal system, a second-stage water-type dust collector system, and a negative pressure dust-proof design, as well as reducing the investment costs for customers.
The linear vibrating screen, driven by imported vibrating electric drives, improves the screening efficiency while reducing the failure rate of the equipment. The aggregate hoist adopts plate chain hoisting, which increases the service life of the hoist and ensures the stability of operation.
The optimized structure of the lifting plate of the drying drum makes the drying system more efficient and steady. The whole machine adopts a modular design, allowing faster and simpler handling and installation.
A fully automatic computer/manual control system, with fault self-diagnosis feedback program, facilitates a safe and easy operation.
| Item | ||
| Production capacity (t/h) | 120 | 160 |
| Capacity per pot (kg) | 1800 | 2000 |
| Total installed capacity (kw) | 360 | 490 |
| Sand and gravel material (four kinds of material accumulation) metering accuracy | ± 0.5% | ± 0.5% |
| Powder (two kinds of material accumulation) measuring accuracy | ± 0.5% | ± 0.5% |
| Asphalt metering accuracy | ± 0.3% | ± 0.3% |
| Temperature control accuracy (℃) | ≤± 5 | ≤± 5 |
| Dust prevention efficiency (mg/Nm3) | ≤100 | ≤100 |
| Doser length × width (m) | 2.0 × 3.3 | 2.45 × 3.6 |
| Hopper capacity (m3) | 7 | 11.3 |
| Aggregate belt machine width (mm) | 500 | 650 |
| Aggregate belt machine power (kw) | 5.5 | 7.5 |
| Drying cylinder diameter × length | 1.8×6.54 | 2.2×8.0 |
| Drying cylinder power (kw) | 30 | 11×4 |
| Vibrating screen length×width(m) | 4.0×1.5 | 5×1.8 |
| Vibrating screen power (kw) | 5.5×2 | 11×2 |
| Weighing hopper stone capacity (kg) | 1500 | 2000 |
| Weighing hopper powder capacity (kg | 250 | 350 |
| Weighing hopper asphalt capacity (kg) | 200 | 300 |
| Mixing pot capacity (kg) | 1500 | 2000 |
| Mixing pot power (kw) | 37 | 75 |
Beian is a leading brand name in the asphalt mixing plant industry. Beian asphalt mixing plants are designed and manufactured in China with reliable quality and advanced technology. They are perfect for creating asphalt that meets the highest standards of safety and performance. The dust collection systems of Beian asphalt mixing plants are available in three models: Bag Filter, Wet Dust Collector, and Cyclone Dust Collector. The mixing time of Beian asphalt mixing plants is between 30s-45s. In addition, Beian asphalt mixing plants are environmental-friendly and have a filler moisture of ≤2%.
Beian asphalt mixing plants are ideal for a wide range of applications, including asphalt production, paving projects, and road construction. They are easy to install and maintain and highly efficient, making them an ideal choice for asphalt mixing stations, asphalt batching plants, and asphalt plants. With Beian, you can trust that the asphalt you produce will meet the highest standards of safety and performance.
We provide comprehensive technical support and service for our Asphalt Mixing Plant. Our services include:
We are committed to providing the highest level of technical service to our customers and ensuring their Asphalt Mixing Plant is operating at peak efficiency.
