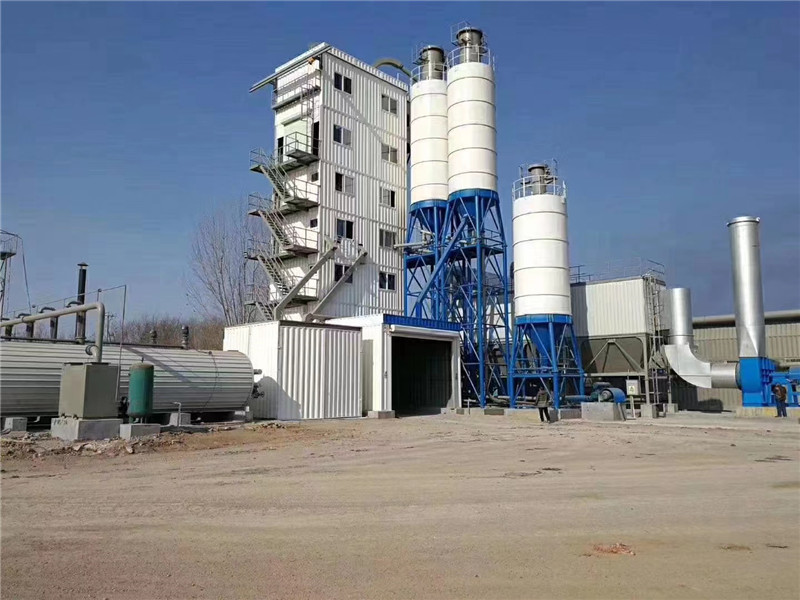

Asphalt Mixing Plant is a type of bitumen mixing plant with a capacity of large, designed for asphalt mixing station. It has a mixing time of 30 seconds to 45 seconds, and a maximum aggregate moisture of 3%. The aggregate size is from 0 to 60mm. Asphalt Mixing Plant is able to provide superior asphalt mixture due to its excellent mixing performance, accurate measurement technology, high reliability and environmental protection. It is an ideal choice for road maintenance and construction projects.
The Agitator is constructed from high-strength and wear-resistant materials that improve its durability. Opting for a first-stage cyclone dust removal system, a second-stage water-type dust collector system, and a negative pressure dust-proof design in the building not only make it more economical and practical, but also reduce investment costs from customers.
The linear vibrating screen, driven by imported vibrating electric drives, increases efficiency and enhances the rate of equipment failure. Meanwhile, the aggregate hoist uses a plate chain hoisting system, which increases efficiency and operational stability. Having an optimized structure on the drying drum's lifting plate, the drying system further enhances efficiency and stability.
The modular design of the Agitator makes handling and installation easier and quicker. Additionally, a computer/manual control system with a self-diagnosis feedback program is incorporated, deepening its simplicity and boosting safety.
| Item | ||
| Production capacity (t/h) | 120 | 160 |
| Capacity per pot (kg) | 1800 | 2000 |
| Total installed capacity (kw) | 360 | 490 |
| Sand and gravel material (four kinds of material accumulation) metering accuracy | ± 0.5% | ± 0.5% |
| Powder (two kinds of material accumulation) measuring accuracy | ± 0.5% | ± 0.5% |
| Asphalt metering accuracy | ± 0.3% | ± 0.3% |
| Temperature control accuracy (℃) | ≤± 5 | ≤± 5 |
| Dust prevention efficiency (mg/Nm3) | ≤100 | ≤100 |
| Doser length × width (m) | 2.0 × 3.3 | 2.45 × 3.6 |
| Hopper capacity (m3) | 7 | 11.3 |
| Aggregate belt machine width (mm) | 500 | 650 |
| Aggregate belt machine power (kw) | 5.5 | 7.5 |
| Drying cylinder diameter × length | 1.8×6.54 | 2.2×8.0 |
| Drying cylinder power (kw) | 30 | 11×4 |
| Vibrating screen length×width(m) | 4.0×1.5 | 5×1.8 |
| Vibrating screen power (kw) | 5.5×2 | 11×2 |
| Weighing hopper stone capacity (kg) | 1500 | 2000 |
| Weighing hopper powder capacity (kg | 250 | 350 |
| Weighing hopper asphalt capacity (kg) | 200 | 300 |
| Mixing pot capacity (kg) | 1500 | 2000 |
| Mixing pot power (kw) | 37 | 75 |
Asphalt mixing plant, manufactured by Beian in China, is an important equipment for producing asphalt mixtures. It is mainly composed of twin-shaft mixer, dust collection system, aggregate moisture control system, and environmental protection system. The twin-shaft mixer offers uniform and high-efficiency mixing of asphalt and aggregate with less energy consumption, and can be used in asphalt batching plants and continuous asphalt mixing plants. The dust collection system, including bag filter, wet dust collector, and cyclone dust collector, can effectively reduce dust emission. The aggregate moisture control system can effectively control the moisture content of aggregate within 3%. The environmental protection system provides a safe and healthy working environment for the operators. In addition, the mixing cycle is 45s-60s, which is faster than other traditional asphalt mixing plants. In conclusion, Beian asphalt mixing plant is a reliable and high-performance product for producing asphalt mixtures.
Asphalt Mixing Plant technical support and service includes but is not limited to:
