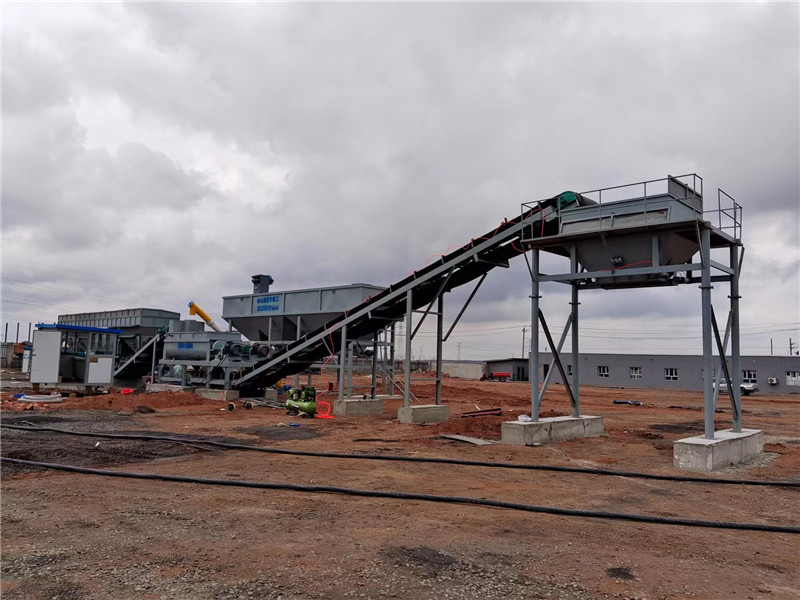

Introduction of the Stabilized soil mixing plant with vertical cement silo:
WDJ Series Stabilized Soil Mixing Plant is adapted to mix the basic materials for ordinary highways, high-grade highways, expressways, high-speed railroads and urban roads, sports fields, airports, etc. (According to the requirements of raw materials)
The machine's aggregate batching system and powder supply system adopt the domestic advanced computerized frequency-controlled belt weigher and spiral electronic weigher respectively. The computer belt weigher controls the speed of the belt weigher through its own load sensor and frequency converter, so as to realize continuous automatic quantitative feeding by a single machine. When the material proportioning needs to be changed, the operator only needs to adjust the proportioning value on its industrial control mainframe according to the adjusted proportioning amount of a certain material, and the computer belt weigher can then automatically quantitatively feed or batch the material, with simple operation and high metering accuracy.
The mixer with double motors and double reducers is continuous forced double horizontal shaft mixing, two mixing shafts equipped with cross slurry sheet, parallel and reversing each other, so that various kinds of stabilized soil materials with particle size less than 60mm can be fully mixed, the slurry sheet of the mixing shaft is made of high strength wear-resistant material, with long working life and easy to replace.
The machine is arranged in one-line or right-angle shape, with compact structure, reasonable arrangement and easy observation. Its control adopts centralized control and manual sequence start and stop.
Introduction of the Stabilized soil mixing plant with horizontal cement silo :
Cement silo is free from foundation and easy to install. Horizontal cement silo is composed of several legs, lower cone, silo body, feeding pipe, climbing ladder, safety explosion-proof valve, gravity dispersion, only need to harden below the horizontal cement tank can be placed and used, eliminating the trouble of making foundation and pre-burial, saving time and effort, low height and wide application.
The horizontal cement silo discharge cone is square cone, the silo body is corrugated board and profile framework welded together, and for vertical cement tanks, even the small tonnage of 50 tons of cement silo installed height is nearly 9 meters, while the overall height of horizontal cement tanks is low, especially suitable for use in the plant, and installation does not require the removal of plant roof. No need to do external encapsulation, saving cost. The horizontal cement tank has high strength and good airtightness, and because of the low height, it eliminates the need to do external encapsulation, which greatly saves the cost of use.
Specification parameters.
WDJ300.400.500.600.700.800 type stabilized soil mixing plant main performance parameters:
| Parameter Model | WDJ300 | WDJ400 | WDJ500 | WDJ600 | WDJ700 | WDJ800 |
| Productivity | 300t/h | 400t/h | 500t/h | 600t/h | 700t/h | 800t/h |
| Measuring method | Computerized | Computerized | Computerized | Computerized | Computerized | Computerized |
| Adjustment method | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control |
| Control mode | automatic | automatic | automatic | automatic | automatic | automatic |
| Weighing accuracy (aggregate) | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Weighing accuracy (powder) | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Main motor power | 37KW | 45KW | 60KW | 75KW | 90KW | 110KW |
| Total Weight | 24t | 24t | 27t | 27t | 30t | 30t |
| Total power | 115KW | 125KW | 140KW | 155KW | 180KW | 200KW |
Product configuration:
1, Batching supply system: dividing hopper, speed-controlled frequency-controlled metering belt machine, belt conveyor.
2, Cement material supply system: cement silo (cement hopper), speed-controlled variable frequency metering impeller feeder, spiral electronic weighing conveyor.
3, Automatic water supply system: pressure tank, submersible pump, pipeline, pressure reducing valve, water flow meter, water sprinkler.
4, Mixing system: motor reducer, double horizontal shaft continuous mixer.
5, Storage bin device system: double discharge storage bin, inclined belt machine, air compressor.
6, Electrical system: operation control cabinet, operation room.
7, Measuring control system: Adopt domestic famous manufacturer electronic parts, frequency conversion speed control, microcomputer control manual and automatic two forms. This machine is equipped with bulk cement silo, (including screw conveyor). For bagged cement hopper, it can be equipped with another device according to the user's needs.
Stabilized soil mixing plants are used in a wide range of infrastructure projects, especially in the construction of roads and airports. Some common applications of stabilized soil mixing plants include:
Road construction: Stabilized soil is commonly used as a base or subbase layer in road construction. It provides a strong and stable foundation that can support heavy loads and withstand traffic.
Airport runways: Stabilized soil is also used as a base layer in the construction of airport runways. The stability and durability of stabilized soil make it a reliable choice for supporting heavy aircraft.
Parking areas: Stabilized soil can be used as a base layer for parking areas, providing a strong and stable foundation for vehicles.
Industrial sites: Stabilized soil can be used in the construction of industrial sites, providing a stable and durable foundation for heavy equipment and machinery.
Landfills: Stabilized soil can be used in the construction of landfills, providing a stable base layer for waste disposal.
