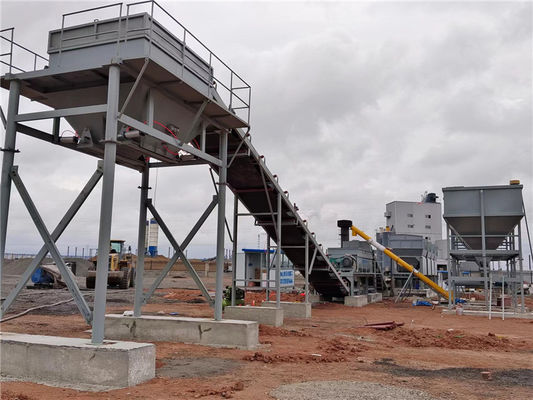

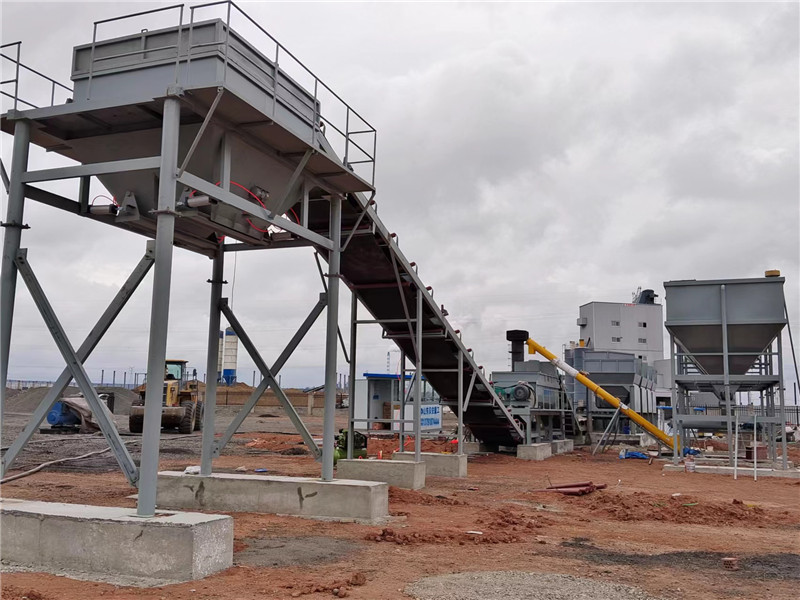

The Soil Cement Mixing Plant is widely used to produce high-quality stabilized soil cement mixtures. It is an ideal choice for construction projects such as road, railway, bridge, and airport construction.
The Soil Cement Mixing Plant features a modular design, which allows for the addition of multiple components, such as stone powder silos, dust collectors, and cement silos, to create a complete production line. The twin-shaft forced concrete mixer is equipped with a unique mixing blade, which ensures high-efficiency mixing and a uniform mixture. The PLC system allows for easy operation and monitoring of the production process. The Soil Cement Mixing Plant is reliable, durable, and easy to maintain, making it an ideal choice for any construction project.
Product configuration:
1, Batching supply system: dividing hopper, speed-controlled frequency-controlled metering belt machine, belt conveyor.
2, Cement material supply system: cement silo (cement hopper), speed-controlled variable frequency metering impeller feeder, spiral electronic weighing conveyor.
3, Automatic water supply system: pressure tank, submersible pump, pipeline, pressure reducing valve, water flow meter, water sprinkler.
4, Mixing system: motor reducer, double horizontal shaft continuous mixer.
5, Storage bin device system: double discharge storage bin, inclined belt machine, air compressor.
6, Electrical system: operation control cabinet, operation room.
7, Measuring control system: Adopt domestic famous manufacturer electronic parts, frequency conversion speed control, microcomputer control manual and automatic two forms. This machine is equipped with bulk cement silo, (including screw conveyor). For bagged cement hopper, it can be equipped with another device according to the user's needs.
WDJ300.400.500.600.700.800 type stabilized soil mixing plant main performance parameters:
| Parameter Model | WDJ300 | WDJ400 | WDJ500 | WDJ600 | WDJ700 | WDJ800 |
| Productivity | 300t/h | 400t/h | 500t/h | 600t/h | 700t/h | 800t/h |
| Measuring method | Computerized | Computerized | Computerized | Computerized | Computerized | Computerized |
| Adjustment method | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control |
| Control mode | automatic | automatic | automatic | automatic | automatic | automatic |
| Weighing accuracy (aggregate) | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Weighing accuracy (powder) | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Main motor power | 37KW | 45KW | 60KW | 75KW | 90KW | 110KW |
| Total Weight | 24t | 24t | 27t | 27t | 30t | 30t |
| Total power | 115KW | 125KW | 140KW | 155KW | 180KW | 200KW |
Soil Cement Mixing Plant Technical Support and Services include:
A1: The Soil Cement Mixing Plant is a machine that is designed to produce a consistent mix of soil and cement in a short period of time.
A2: The Soil Cement Mixing Plant can produce up to 60 tons of soil and cement mix per hour.
A3: The Soil Cement Mixing Plant is powered by diesel, natural gas, or electric.
A4: The Soil Cement Mixing Plant should be operated in accordance with the manufacturer's instructions.
A5: The average life expectancy of the Soil Cement Mixing Plant is approximately 10 years with proper maintenance.
