WDJ series stabilized soil mixing plant is a complete set of special equipment for continuous mixing of road base material, which is developed by our company on the basis of absorbing the advantages of continuous stabilized soil mixing plant at home and abroad.
Our WBZ series stabilized soil mixing plant and graded gravel mixing plant with favorable price is a special mixing equipment developed and produced by our company to meet the construction needs of grass-roots materials for high-grade highways, urban roads, airports, docks, sports fields and other facilities by adopting the first technology at home and abroad. It can use lime, slaked lime (water content in 10-15%), soil, sand and gravel, fly ash, cement and other raw materials to produce cement stabilized sand and gravel, grey soil stabilized base material, compressible concrete and other grass-roots materials. The base materials produced by it are accurately proportioned, evenly mixed and meet the construction requirements.
Specification parameters.
WDJ300.400.500.600.700.800 type stabilized soil mixing plant main performance parameters:
| Parameter Model | WDJ300 | WDJ400 | WDJ500 | WDJ600 | WDJ700 | WDJ800 |
| Productivity | 300t/h | 400t/h | 500t/h | 600t/h | 700t/h | 800t/h |
| Measuring method | Computerized | Computerized | Computerized | Computerized | Computerized | Computerized |
| Adjustment method | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control |
| Control mode | automatic | automatic | automatic | automatic | automatic | automatic |
| Weighing accuracy (aggregate) | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Weighing accuracy (powder) | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Main motor power | 37KW | 45KW | 60KW | 75KW | 90KW | 110KW |
| Total Weight | 24t | 24t | 27t | 27t | 30t | 30t |
| Total power | 115KW | 125KW | 140KW | 155KW | 180KW | 200KW |
Product configuration:
1, Batching supply system: dividing hopper, speed-controlled frequency-controlled metering belt machine, belt conveyor.
2, Cement material supply system: cement silo (cement hopper), speed-controlled variable frequency metering impeller feeder, spiral electronic weighing conveyor.
3, Automatic water supply system: pressure tank, submersible pump, pipeline, pressure reducing valve, water flow meter, water sprinkler.
4, Mixing system: motor reducer, double horizontal shaft continuous mixer.

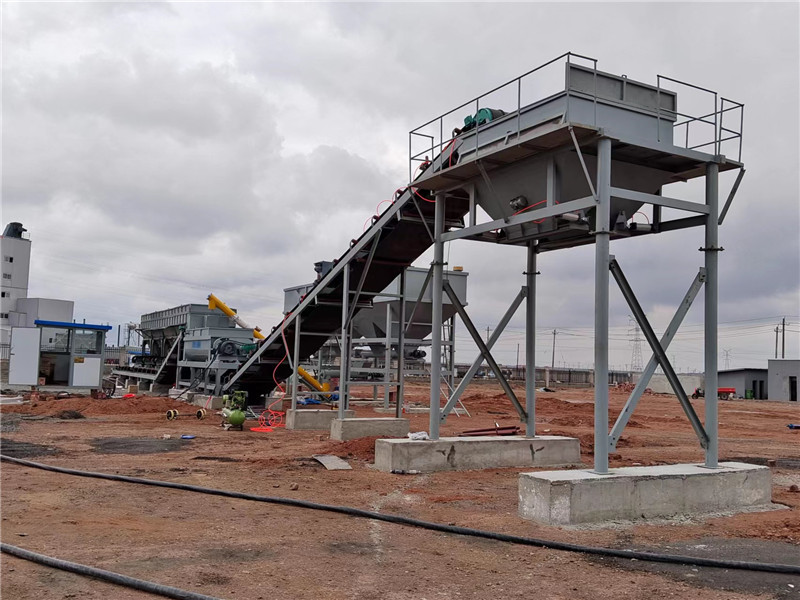

5, Storage bin device system: double discharge storage bin, inclined belt machine, air compressor.
6, Electrical system: operation control cabinet, operation room.
7, Measuring control system: Adopt domestic famous manufacturer electronic parts, frequency conversion speed control, microcomputer control manual and automatic two forms. This machine is equipped with bulk cement silo, (including screw conveyor). For bagged cement hopper, it can be equipped with another device according to the user's needs.
The Soil Cement Mixing Plant is a specialized equipment used for road construction. It is suitable for various soil stabilization operations, such as lime stabilized soil mixing, cement soil mixing, etc. It can also be used to produce a variety of stabilized soil mixtures for highways, roads, parks, squares, and other projects. The plant is composed of a twin-shaft forced concrete mixer, metering system, control system, aggregate hopper and other components. The discharging height of the plant is 3.7m. The mixer type is twin-shaft forced concrete mixer. The voltage is 380V/50Hz/3Phase.The Soil Cement Mixing Plant is widely used in highways, roads, parks, squares, and other projects, which can help to improve the construction quality of the projects.
We provide the highest quality technical support and service for our Soil Cement Mixing Plant. Our team of experts is available to help you every step of the way, from pre-sales advice and product selection to post-sales installation, maintenance and repair.
We provide comprehensive training for operators, technicians and engineers, and offer a wide range of spare parts and accessories. Our team is also available to provide remote support and troubleshooting.
We are committed to providing the best possible customer experience, and our technical support and service team is here to ensure that you get the most out of your Soil Cement Mixing Plant.
A: Soil Cement Mixing Plant is a type of construction equipment that can be used to mix soil and cement to produce a soil-cement mixture for construction purposes.
A: The main advantages of using a Soil Cement Mixing Plant are improved compaction, better mixing, and improved workability when compared to traditional methods.
A: Different types of soil can be used in a Soil Cement Mixing Plant, such as sand, clay, silt, and gravel.
A: Generally, Portland cement is used in a Soil Cement Mixing Plant, however other types of cement may be suitable depending on the application.
A: It is important to ensure that safety measures are taken when operating a Soil Cement Mixing Plant, such as wearing protective gear and following the manufacturer's instructions.
