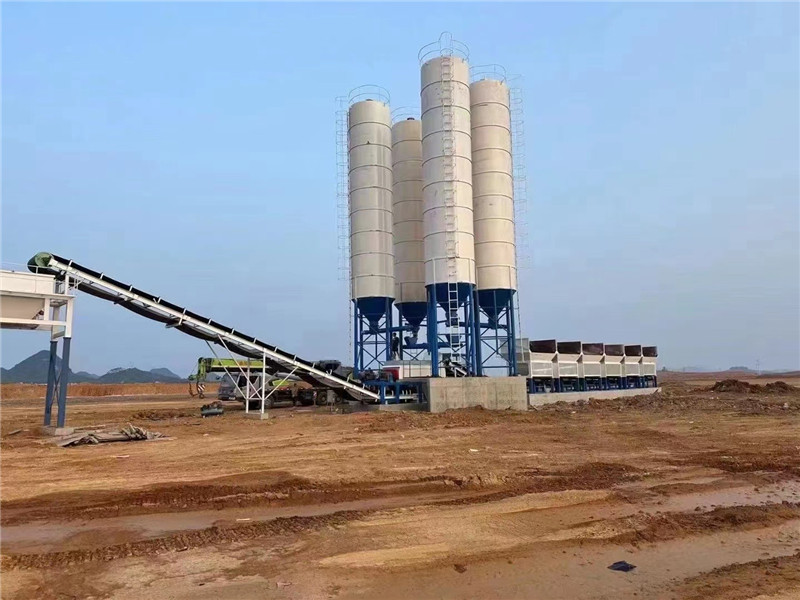

WDJ series stabilized soil mixing plant is a complete set of special equipment for continuous mixing of road base material, which is developed by our company on the basis of absorbing the advantages of continuous stabilized soil mixing plant at home and abroad.
Our WBZ series stabilized soil mixing plant and graded gravel mixing plant with favorable price is a special mixing equipment developed and produced by our company to meet the construction needs of grass-roots materials for high-grade highways, urban roads, airports, docks, sports fields and other facilities by adopting the first technology at home and abroad. It can use lime, slaked lime (water content in 10-15%), soil, sand and gravel, fly ash, cement and other raw materials to produce cement stabilized sand and gravel, grey soil stabilized base material, compressible concrete and other grass-roots materials. The base materials produced by it are accurately proportioned, evenly mixed and meet the construction requirements
WDJ300.400.500.600.700.800 type stabilized soil mixing plant main performance parameters:
Parameter Model | WDJ300 | WDJ400 | WDJ500 | WDJ600 | WDJ700 | WDJ800 |
Productivity | 300t/h | 400t/h | 500t/h | 600t/h | 700t/h | 800t/h |
Measuring method | Computerized | Computerized | Computerized | Computerized | Computerized | Computerized |
Adjustment method | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control |
Control mode | automatic | automatic | automatic | automatic | automatic | automatic |
Weighing accuracy (aggregate) | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
Weighing accuracy (powder) | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Main motor power | 37KW | 45KW | 60KW | 75KW | 90KW | 110KW |
Total Weight | 24t | 24t | 27t | 27t | 30t | 30t |
Total power | 115KW | 125KW | 140KW | 155KW | 180KW | 200KW |
Soil Cement Mixing Plant offers technical support and service to ensure that you get the most out of your product. Technical support and service includes:
