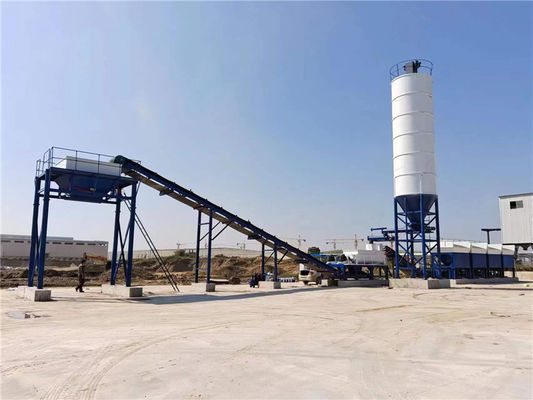

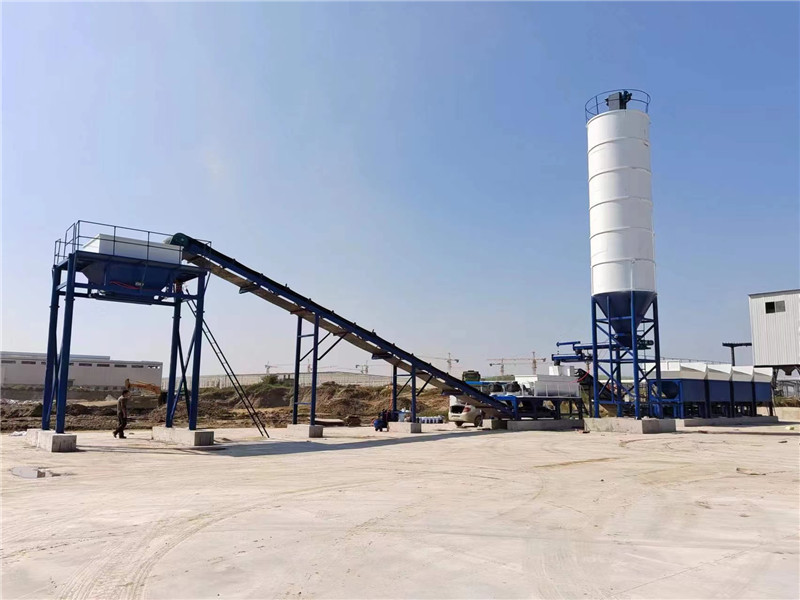

60s Lime Stabilized Soil Mixing Station with Bag-type Dust Collector WDJ400
The WDJ series stabilized soil mixing plant is an ideal choice for those wanting to mix road base material continuously. Developed by our company, it combines the excellent aspects of both domestic and international stabilized soil mixing plants.
Our WBZ series stabilized soil mixing plant gives a great value for money and is designed and built by our company to fulfil the needs of most primary material constructions such as highways, city roads, airports, docks, sports grounds and others. At first, it is created with the latest overseas technology. Lime, slaked lime (with humidity between 10-15%), soil, sand and gravel, fly ash, cement and other raw materials can be combined to make cement stabilized sand and gravel, grey soil stabilized base material, compressible concrete and other primary material types. The products made by this plant are always properly proportioned, well mixed, and meet the construction requirements.
The product configuration includes a batching supply system, a cement material supply system, an automatic water supply system, a mixing system, a storage bin device system, an electrical system, and a measuring control system.
The batching supply system consists of a dividing hopper, a speed-controlled frequency-controlled metering belt machine, and a belt conveyor.
The cement material supply system consists of a cement silo (cement hopper), a speed-controlled variable frequency metering impeller feeder, and a spiral electronic weighing conveyor.
The automatic water supply system consists of a pressure tank, a submersible pump, a pipeline, a pressure reducing valve, a water flow meter, and a water sprinkler.
The mixing system consists consists of a motor reducer and a double horizontal shaft continuous mixer.
The storage bin device system consists of a double discharge storage bin, an inclined belt machine, and an air compressor.
The electrical system consists of an operation control cabinet and an operation room.
The measuring control system adopts electronic parts from a domestic famous manufacturer, with frequency conversion speed control, Microcomputer control, which can work in both manual and automatic forms. This machine is equipped with a bulk cement silo (including a screw conveyor), and, for bagged cement hopper, it can be further equipped with another device according to the user's needs.
WDJ300.400.500.600.700.800 type stabilized soil mixing plant main performance parameters:
| Parameter Model | WDJ300 | WDJ400 | WDJ500 | WDJ600 | WDJ700 | WDJ800 |
| Productivity | 300t/h | 400t/h | 500t/h | 600t/h | 700t/h | 800t/h |
| Measuring method | Computerized | Computerized | Computerized | Computerized | Computerized | Computerized |
| Adjustment method | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control |
| Control mode | automatic | automatic | automatic | automatic | automatic | automatic |
| Weighing accuracy (aggregate) | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Weighing accuracy (powder) | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Main motor power | 37KW | 45KW | 60KW | 75KW | 90KW | 110KW |
| Total Weight | 24t | 24t | 27t | 27t | 30t | 30t |
| Total power | 115KW | 125KW | 140KW | 155KW | 180KW | 200KW |
Beian WDJ series stabilized soil mixing plant is ideal for road construction and building projects, as it is capable of producing various kinds of stabilized soil for these projects. The WDJ series has various models - WDJ300, WDJ400, WDJ500, WDJ600, WDJ700 and WDJ800, and is suitable for many applications.
We provide comprehensive technical support and service for our Stabilized Soil Mixing Plant. Our team of experienced technicians can provide support for installation, commissioning, troubleshooting and maintenance. We also provide spare parts and technical advice on how to best use the equipment.
We also offer regular maintenance and calibration services to ensure that the Stabilized Soil Mixing Plant is running at optimum efficiency. Our technicians are available 24/7 to provide technical advice and support in case of any issues.
We also provide training to ensure that our customers are able to use the equipment safely and effectively. We provide detailed instruction manuals and user guides to assist in the operation of the Stabilized Soil Mixing Plant.
Our customer service team is available to answer any questions or concerns that you may have about the Stabilized Soil Mixing Plant. We are committed to providing the best service and support to ensure that our customers are able to get the most out of their equipment.
