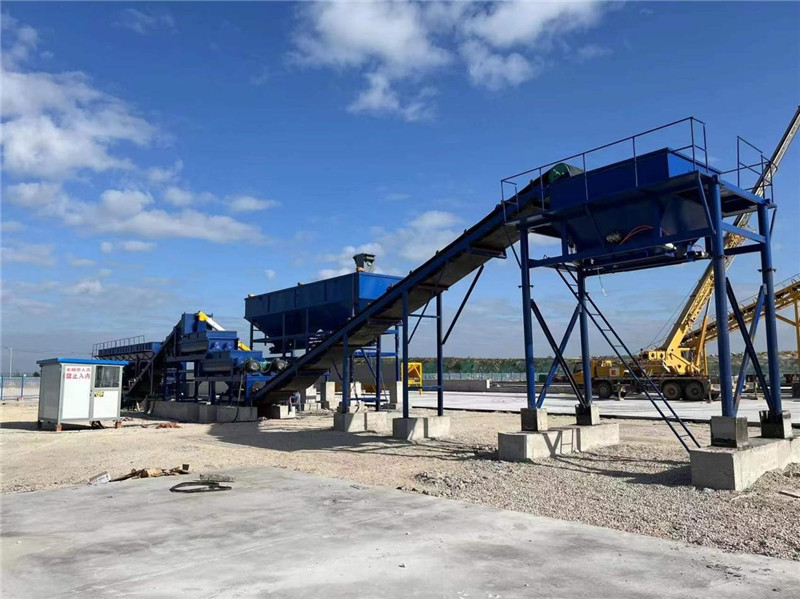

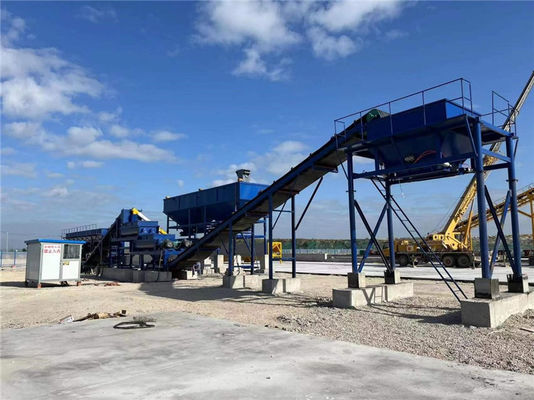

18m×8m×10m Stabilized Soil Mixing Plant with PLC Control System
WDJ Series Stabilized Soil Mixing Plant is a set of specialized equipment to continuous mix road base material, which is developed by our company upon absorb the advantages of continuous stabilized soil mixing plants both in our country and overseas.
In order to meet the requirements of construction on the basic ground for high grade highways, urban roads, squares, docks, airports, stadiums and other infrastructures, our WBZ Series Stabilized Soil Mixing Plant and Graded Gravel Mixing Plant are specially developed and manufactured. These are equiped with the most advanced technology home and abroad. It's adaptive to use lime, slaked lime (water content in 10-15%), soil, sand, gravel, fly ash, cement and other raw material to produce cement stabilized sand and gravel, grey soil stabilized base material, compressible concrete and other grass-roots materials. The finished base materials are accurate in proportion, evenly blended and can meet the necessary constructure.
WDJ300.400.500.600.700.800 type stabilized soil mixing plant main performance parameters:
| Parameter Model | WDJ300 | WDJ400 | WDJ500 | WDJ600 | WDJ700 | WDJ800 |
| Productivity | 300t/h | 400t/h | 500t/h | 600t/h | 700t/h | 800t/h |
| Measuring method | Computerized | Computerized | Computerized | Computerized | Computerized | Computerized |
| Adjustment method | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control |
| Control mode | automatic | automatic | automatic | automatic | automatic | automatic |
| Weighing accuracy (aggregate) | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Weighing accuracy (powder) | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Main motor power | 37KW | 45KW | 60KW | 75KW | 90KW | 110KW |
| Total Weight | 24t | 24t | 27t | 27t | 30t | 30t |
| Total power | 115KW | 125KW | 140KW | 155KW | 180KW | 200KW |
WDJ600 D type computer measured and frequency speed controlled stabilized soil mixing plant sub-configuration table
| No. | Part Name | Specification Model | Quantity | Place of Origin | Remarks | ||
| 1 | Complete machine |
6,Assembly form: detachable type 7, Area:50m*15m 8 Configuration:Four hoppers and two bins (double motor secondary mixing superposition type) |
Aggregate hopper, finished bin iron plate adopts 5mm,;flat belt machine, inclined belt machine channel steel adopts 18;aggregate hopper, mixer legs adopts 20 I-beam,. Flat belt and inclined belt adopt nylon belt. .
|
||||
| 2 |
Aggregate batching system
|
Aggregate hopper | 12m³ iron plate using 5mm | 4 | Beian,Shandong |
Combination type: Single bin composition Hopper width: 3300mm |
|
| Vibrator | 1.1KW | 4 | Henan Xinxiang | ||||
| Grid screen |
Grid-reinforced screen
|
4 | Beian,Shandong | ||||
| Belt scale | Weighing accuracy ±0.5-1% | 4 | Beian,Shandong | ||||
| Belt scale drum | 4KW | 4 |
Zibo Shandong |
||||
| Pressure sensor | 150Kg | 4 | Bengbu Anhui | ||||
| Belt scale carrier rollers | φ89×1080 | 1set | Beian,Shandong | ||||
| Belt scale carrier roller | φ89×1040 | 1set | Beian,Shandong | ||||
| Pressure belt pulley | 1 | Beian ,Shandong | |||||
| Dosing belt machine Frame | channel steel [18 | 1 | Beian ,Shandong | ||||
| Motorized pulley | 50100－15KW－2.5 | 1 | Beian ,Shandong | ||||
| Ring flat belt | 1000×5－47.5m nylon belt | 1 | Hebei | ||||
| Belt machine carrier rollers | φ89×375 | 1 set | Beian ,Shandong | ||||
| Belt machine carrier rollers | φ89×1150 | 1 set | Beian ,Shandong | ||||
| Vertical stick | 1 set | Beian ,Shandong | |||||
| 3 | Powder supply system | Feeding system Powder bin | 80—100T | 2 | Beian ,Shandong | ||
| Dust removal | None | optional | |||||
| Gate valve | 800×800 | 2 | Beian ,Shandong | ||||
| Gate valve hand wheel | 320 | 4 | Beian ,Shandong | ||||
| Screw conveyor | φ325×2700mm | 2 | Beian ,Shandong | ||||
| Spiral motor | 5.5KW | 2 | Beian ,Shandong | ||||
| Steel wire rope | φ6－10m | 2 | Beian ,Shandong | ||||
| Cloth bag | φ325 | 4 | Beian ,Shandong | ||||
| Spiral electronic scale | Φ325×1400mm | 2 | Beian ,Shandong | ||||
| Electronic weighing motor | 4KW | 2 | Beian ,Shandong | ||||
| Current tension sensor | 500Kg | 2 |
Bengbu, Anhui |
||||
| 4 | Operation room | Control room | 1 | Beian ,Shandong |
Control mode: Computer control
|
||
| LED light | 1 | Beian ,Shandong | |||||
| Air conditioner | 1HP (cooling and heating type) | 1 | |||||
| socket | 1 | famous brand | |||||
| 5 | water supply system | submersible pump | 2.2KW | 1 | Zibo , Shandong | water control mode: frequency regulation | |
| Water pump flow | 40m³/h | 1 | Beian , Shandong | ||||
| Pipelines and fittings | 1 | Weifang, Shandong | |||||
| 6 | Mixing device | Mixer | 2 | Beian , Shandong |
machine type: Double horizontal shaft strong Continuous type |
||
| Double motor | 37KW | 4 | motor | ||||
| Blade | High manganese alloy wear-resistant material | 60*2 | Weifang, Shandong | ||||
| Speed reducer | ZLY180 | 4 | Zibo, Shandong | ||||
| 7 | Storage device | Inclined belt machine |
Installation inclination Q=18° Frame channel :steel [18 |
1 | Beian , Shandong |
Hopper door drive Method: Pneumatic
storage bin Unloading hight:3700mm |
|
| electric drive drum | 50100－18.5KW－2.5 | 1 | Zibo, Shandong | ||||
| Annular flat belt | 1000×4－38m nylon belt | 1 | Hebei | ||||
| Belt machine carrier rollers | φ89×375 | 1 set | Beian , Shandong | ||||
| Belt machine carrier rollers | φ89×1150 | 1set | Beian , Shandong | ||||
| Vertical roll | 1set | Beian , Shandong | |||||
| Final storage bin | 8m³ (stacked) iron plate using 5mm | 1 | Beian , Shandong | ||||
| Vibrator | 1.1KW | 1 | Xinxiang, Henan | ||||
| 8 | Air circuit system | Solenoid valve | 4V310 | 2 | Zhejiang | ||
| Motor | Y132S1－2－5.5KWB3 | 1 | Beian ,Shandong | ||||
| Air compressor | 0.67/7－5.5KW | 1 | |||||
| Air cylinder | 100×250 | 4 | |||||
| 9 | Electrical control system | Electrical components | 1 | Chint Dexie |
Electrical components can be optional Adopt 485 communication connection |
||
| Control system | 1 | Beian , Shandong | |||||
| Computer host | 1 | Lenovo | |||||
| Monitor | 1 | Lenovo | |||||
| Inverter | 3.7kw | 5 | Hai Li Pu | ||||
| Inverter | 5.5kw | 2 | Hai Li Pu | ||||
| 11 | Attachments | Special tools | 1 | Beian ,Shandong | |||
| user guide | 1 | Beian ,Shandong | |||||
| Certificate of Conformity | 1 | Beian ,Shandong | |||||
Note: 1 Due to technical improvement,the origin of purchased parts and the model of technical parameters may be changed, but the functions are not worse than the existing ones;
2 The buyer needs to prepare the following facilities: the concrete foundation of the mixing station, the power supply to the power distribution cabinet of the mixing station and the water storage source of the mixing station; the mechanical oil required for the equipment, and the necessary lightning protection system in the mixing station.
Product configuration:
Beian's WDJ300/WDJ400/WDJ500/WDJ600/WDJ700/WDJ800 Stabilized Soil Mixing Plant is the perfect solution for highways, roads and bridges construction projects. This plant has a capacity of 50-300t/h, offering high accuracy in water and aggregate weighing, and a PLC control system. It is also equipped with a bag-type dust collector for dust emission control. With the features of high mixing efficiency, homogeneous mixing, and good stability, the stabilized soil mixing plant is the ideal choice for highway projects.
The stabilized soil mixing plant from Beian is the best-in-class choice for highway and roads stabilization projects, with its precise water and aggregate weighing accuracy of ±1% and ±2% respectively. It is a high-performance plant with a PLC control system for advanced automation, making it easier to operate and maintain. Furthermore, this plant is equipped with a bag-type dust collector to ensure dust emission control. With its high mixing efficiency, homogeneous mixing, and good stability, Beian's stabilized soil mixing plant is the ideal choice for highway projects.
