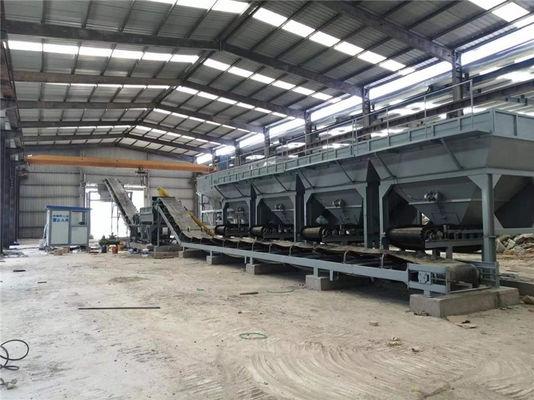

The WDJ series stabilized soil mixing plant has been developed to meet the need for high-grade highways, urban roads, airports, docks, sports fields and other facilities. It is capable of using lime, slaked lime (within 10-15% water content), soil, sand and gravel, fly ash, cement and other raw materials and producing cement stabilized sand and gravel, grey soil stabilized base material, compressible concrete and other grass-roots materials. All of the produced materials will be accurately proportioned and evenly mixed.
Our WBZ series stabilized soil mixing plant and graded gravel mixing plant are produced with the latest technology and favorable price. It is designed to provide construction needs of grass-roots materials with high-performance base materials. Each raw material mixes accurately in the production process, ensuring the produced materials meet the construction requirements.
WDJ300.400.500.600.700.800 type stabilized soil mixing plant main performance parameters:
| Parameter Model | WDJ300 | WDJ400 | WDJ500 | WDJ600 | WDJ700 | WDJ800 |
| Productivity | 300t/h | 400t/h | 500t/h | 600t/h | 700t/h | 800t/h |
| Measuring method | Computerized | Computerized | Computerized | Computerized | Computerized | Computerized |
| Adjustment method | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control |
| Control mode | automatic | automatic | automatic | automatic | automatic | automatic |
| Weighing accuracy (aggregate) | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Weighing accuracy (powder) | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Main motor power | 37KW | 45KW | 60KW | 75KW | 90KW | 110KW |
| Total Weight | 24t | 24t | 27t | 27t | 30t | 30t |
| Total power | 115KW | 125KW | 140KW | 155KW | 180KW | 200KW |
WDJ600 D computer measured and frequency speed controlled stabilized soil mixing plant sub-configuration table
| No. | Part Name | Specification Model | Quantity | Place of Origin | Remarks | ||
| 1 | Complete machine |
3,Maximum grain size of mixing aggregate: 60mm 4,Measuring accuracy of aggregate: ±0.5-1% 5,Measuring accuracy of powder material: ±0.5-1% 6,Assembly form: detachable type 7,Area:43m*15m 8,Configuration: four hopper and one bin (double motors) |
Aggregate hopper, finished bin iron plate adopts 5mm,;flat belt machine, inclined belt machine channel steel adopts 18;aggregate hopper, mixer legs adopts 20 I-beam,. Flat belt and inclined belt adopt nylon belt.
|
||||
| 2 | Aggregate batching system | Aggregate hopper | 12m³ iron plate using 5mm | 4 | Beian,Shandong |
Combination type: Single bin composition Hopper width: 3300mm |
|
| Vibrator | 1.1KW | 4 | Henan Xinxiang | ||||
| Grid screen |
Grid-reinforced screen
|
4 | Beian,Shandong | ||||
| Belt scale | Weighing accuracy ±0.5-1% | 4 | Beian,Shandong | ||||
| Belt scale drum | 4KW | 4 |
Zibo Shandong |
||||
| Pressure sensor | 150Kg | 4 | Bengbu Anhui | ||||
| Belt scale carrier rollers | φ89×1080 | 1set | Beian,Shandong | ||||
| Belt scale carrier roller | φ89×1040 | 1set | Beian,Shandong | ||||
| Pressure belt pulley | 1 | Beian ,Shandong | |||||
| Dosing belt machine Frame | channel steel [18 | 1 | Beian ,Shandong | ||||
| Motorized pulley | 50100－15KW－2.5 | 1 | Beian ,Shandong | ||||
| Ring flat belt | 1000×5－39.3m nylon belt | 1 | Hebei | ||||
| Belt machine carrier rollers | φ89×375 | 1 set | Beian ,Shandong | ||||
| Belt machine carrier rollers | φ89×1150 | 1 set | Beian ,Shandong | ||||
| Vertical stick | 1 set | Beian ,Shandong | |||||
| 3 | Powder supply system | Feeding system Powder bin | 80—100T | 1 | Beian ,Shandong | ||
| Dust removal | None | Beian ,Shandong | |||||
| Gate valve | 800×800 | 1 | Beian ,Shandong | ||||
| Gate valve hand wheel | 320 | 2 | Beian ,Shandong | ||||
| Screw conveyor | φ325×2700mm | 1 | Beian ,Shandong | ||||
| Spiral motor | 5.5KW | 1 | Beian ,Shandong | ||||
| Steel wire rope | φ6－10m | 1 | Beian ,Shandong | ||||
| Cloth bag | φ325 | 2 | Beian ,Shandong | ||||
| Spiral electronic scale | Φ325×1400mm | 1 | Beian ,Shandong | ||||
| Electronic weighing motor | 4KW | 1 | Beian ,Shandong | ||||
| Current tension sensor | 500Kg | 1 |
Bengbu, Anhui |
||||
| 4 | Operation room | Control room | 1 | Beian ,Shandong |
Control mode: Computer control
|
||
| Air conditioner | 1.2HP (cooling and heating type) | 1 | |||||
| 5 | water supply system | submersible pump | 2.2KW | 1 | Zibo , Shandong | water mode: frequency regulation | |
| Water pump flow | 40m³/h | 1 | Beian ,Shandong | ||||
| 6 | Mixing device | Mixer | 1 | Beian ,Shandong |
machine type: Double horizontal shaft strong Continuous type |
||
| Double motor | 37KW | 2 | motor | ||||
| Blade | High manganese alloy wear-resistant material | 60 | Weifang, Shandong | ||||
| Speed reducer | ZLY180 | 2 | Zibo, Shandong | ||||
| 7 | Storage device | Inclined belt machine |
Installation inclination Q=18° Frame channel :steel [18 |
1 | Beian ,Shandong |
Bucket door drive Method: Pneumatic
storage bin Unloading hight:3700mm
|
|
| electric drive drum | 50100－18.5KW－2.5 | 1 | Zibo, Shandong | ||||
| Annular flat belt | 1000×4－38m nylon belt | 1 | Hebei | ||||
| Belt machine carrier rollers | φ89×375 | 1 set | Beian ,Shandong | ||||
| Belt machine carrier rollers | φ89×1150 | 1set | Beian ,Shandong | ||||
| Final storage bin | 8m³ iron plate using 5mm | 1 | Beian ,Shandong | ||||
| Vibrator | 0.5KW | 2 | Xinxiang, Henan | ||||
| Electric bell | 1 | Beian ,Shandong | |||||
| 8 | Air circuit system | Solenoid valve | 4V310 | 2 | Zhejiang | ||
| Motor | Y132S1－2－5.5KWB3 | 1 | Beian ,Shandong | ||||
| Air compressor | 0.67/7－5.5KW | 1 | |||||
| Air cylinder | 100×250 | 4 | |||||
| 9 | Electrical control system | Electrical components | 1 | Chint Dexie |
Electrical components can be optional Adopt 485 communication connection |
||
| Control system | 1 | Beian , Shandong | |||||
| Computer host | 1 | Lenovo | |||||
| Monitor | 1 | Lenovo | |||||
| Inverter | 3.7kw | 4 | Hai Li Pu | ||||
| Inverter | 5.5kw | 1 | Hai Li Pu | ||||
| 11 | Attachments | Special tools | 1 | Beian ,Shandong | |||
| user guide | 1 | Beian ,Shandong | |||||
| Certificate of Conformity | 1 | Beian ,Shandong | |||||
Note: 1 Due to technical improvement,the origin of purchased parts and the model of technical parameters may be changed, but the functions are not worse than the existing ones;
2 The buyer needs to prepare the following facilities: the concrete foundation of the mixing station, the power supply to the power distribution cabinet of the mixing station and the water storage source of the mixing station; the mechanical oil required for the equipment, and the necessary lightning protection system in the mixing station.
Product configuration:
1. Batching supply system: consisting of a dividing hopper, a speed-controlled frequency-controlled metering belt machine, and a belt conveyor.
2. Cement material supply system: made up of a cement silo (cement hopper), a speed-controlled variable frequency metering impeller feeder, and a spiral electronic weighing conveyor.
3. Automatic water supply system: consisting of a pressure tank, a submersible pump, a pipeline, a pressure reducing valve, a water flow meter, and a water sprinkler.
4. Mixing system: composed of a motor reducer and a double horizontal shaft continuous mixer.
5. Storage bin device system: featuring a double discharge storage bin, an inclined belt machine, and an air compressor.
6. Electrical system: including an operation control cabinet and an operation room.
7. Measuring control system: equipped with electronic parts from domestic famous manufacturers, featuring frequency conversion speed control and microcomputer control in both manual and automatic forms. This machine is also equipped with a bulk cement silo, including a screw conveyor. For a bagged cement hopper, another device is available according to user's needs.
The Beian WDJ300/WDJ400/WDJ500/WDJ600/WDJ700/WDJ800 stabilized soil mixing station is a professional machine for soil lime stabilization projects. It has a short mixing time, large production capacity and high mixing quality. It is easy to operate and maintain. It is an ideal choice for lime stabilized soil mixing station, stabilization soil mixing station for Highway, stabilized soil mixing station for Airport, stabilized soil mixing station for Railway and stabilized soil mixing station for Expressway.
We provide comprehensive technical support and service for our Stabilized Soil Mixing Plant. Our experienced technical staff are available to provide you with advice and assistance on all aspects of the plant, from installation to maintenance and repair.
We guarantee fast response times and reliable service to ensure your Stabilized Soil Mixing Plant continues to operate at peak performance.
