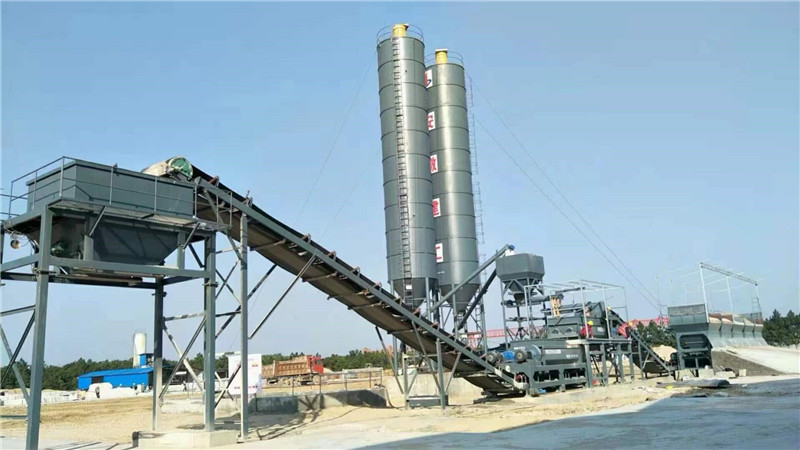

WDJ series stabilized soil mixing plant is a complete set of special equipment designed for the continuous mixing of road base material. By absorbing the advantages of continuous stabilized soil mixing plant from China and abroad, our company has developed it.
Moreover, WBZ series stabilized soil mixing plant and graded gravel mixing plant are also offered with a competitive price. Our company has developed and created these special mixing equipment to meet the construction needs of grass-roots materials.
It can be used in producing cement stabilized sand and gravel, grey soil stabilized base material, compressible concrete and other grass-roots materials using various raw materials like lime, slaked lime (water content in 10-15%), soil, sand and gravel, fly ash, cement and so on. With accurate proportions and even mixing, the materials produced can meet the construction requirements.
WDJ300.400.500.600.700.800 type stabilized soil mixing plant main performance parameters:
| Parameter Model | WDJ300 | WDJ400 | WDJ500 | WDJ600 | WDJ700 | WDJ800 |
| Productivity | 300t/h | 400t/h | 500t/h | 600t/h | 700t/h | 800t/h |
| Measuring method | Computerized | Computerized | Computerized | Computerized | Computerized | Computerized |
| Adjustment method | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control |
| Control mode | automatic | automatic | automatic | automatic | automatic | automatic |
| Weighing accuracy (aggregate) | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Weighing accuracy (powder) | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Main motor power | 37KW | 45KW | 60KW | 75KW | 90KW | 110KW |
| Total Weight | 24t | 24t | 27t | 27t | 30t | 30t |
| Total power | 115KW | 125KW | 140KW | 155KW | 180KW | 200KW |
WDJ600 D type computer measured and frequency speed controlled stabilized soil mixing plant sub-configuration table
| No. | Part Name | Specification Model | Quantity | Place of Origin | Remarks | ||
| 1 | Complete machine |
6,Assembly form: detachable type 7, Area:50m*15m 8 Configuration:Four hoppers and two bins (double motor secondary mixing superposition type) |
Aggregate hopper, finished bin iron plate adopts 5mm,;flat belt machine, inclined belt machine channel steel adopts 18;aggregate hopper, mixer legs adopts 20 I-beam,. Flat belt and inclined belt adopt nylon belt. .
|
||||
| 2 |
Aggregate batching system
|
Aggregate hopper | 12m³ iron plate using 5mm | 4 | Beian,Shandong |
Combination type: Single bin composition Hopper width: 3300mm |
|
| Vibrator | 1.1KW | 4 | Henan Xinxiang | ||||
| Grid screen |
Grid-reinforced screen
|
4 | Beian,Shandong | ||||
| Belt scale | Weighing accuracy ±0.5-1% | 4 | Beian,Shandong | ||||
| Belt scale drum | 4KW | 4 |
Zibo Shandong |
||||
| Pressure sensor | 150Kg | 4 | Bengbu Anhui | ||||
| Belt scale carrier rollers | φ89×1080 | 1set | Beian,Shandong | ||||
| Belt scale carrier roller | φ89×1040 | 1set | Beian,Shandong | ||||
| Pressure belt pulley | 1 | Beian ,Shandong | |||||
| Dosing belt machine Frame | channel steel [18 | 1 | Beian ,Shandong | ||||
| Motorized pulley | 50100－15KW－2.5 | 1 | Beian ,Shandong | ||||
| Ring flat belt | 1000×5－47.5m nylon belt | 1 | Hebei | ||||
| Belt machine carrier rollers | φ89×375 | 1 set | Beian ,Shandong | ||||
| Belt machine carrier rollers | φ89×1150 | 1 set | Beian ,Shandong | ||||
| Vertical stick | 1 set | Beian ,Shandong | |||||
| 3 | Powder supply system | Feeding system Powder bin | 80—100T | 2 | Beian ,Shandong | ||
| Dust removal | None | optional | |||||
| Gate valve | 800×800 | 2 | Beian ,Shandong | ||||
| Gate valve hand wheel | 320 | 4 | Beian ,Shandong | ||||
| Screw conveyor | φ325×2700mm | 2 | Beian ,Shandong | ||||
| Spiral motor | 5.5KW | 2 | Beian ,Shandong | ||||
| Steel wire rope | φ6－10m | 2 | Beian ,Shandong | ||||
| Cloth bag | φ325 | 4 | Beian ,Shandong | ||||
| Spiral electronic scale | Φ325×1400mm | 2 | Beian ,Shandong | ||||
| Electronic weighing motor | 4KW | 2 | Beian ,Shandong | ||||
| Current tension sensor | 500Kg | 2 |
Bengbu, Anhui |
||||
| 4 | Operation room | Control room | 1 | Beian ,Shandong |
Control mode: Computer control
|
||
| LED light | 1 | Beian ,Shandong | |||||
| Air conditioner | 1HP (cooling and heating type) | 1 | |||||
| socket | 1 | famous brand | |||||
| 5 | water supply system | submersible pump | 2.2KW | 1 | Zibo , Shandong | water control mode: frequency regulation | |
| Water pump flow | 40m³/h | 1 | Beian , Shandong | ||||
| Pipelines and fittings | 1 | Weifang, Shandong | |||||
| 6 | Mixing device | Mixer | 2 | Beian , Shandong |
machine type: Double horizontal shaft strong Continuous type |
||
| Double motor | 37KW | 4 | motor | ||||
| Blade | High manganese alloy wear-resistant material | 60*2 | Weifang, Shandong | ||||
| Speed reducer | ZLY180 | 4 | Zibo, Shandong | ||||
| 7 | Storage device | Inclined belt machine |
Installation inclination Q=18° Frame channel :steel [18 |
1 | Beian , Shandong |
Hopper door drive Method: Pneumatic
storage bin Unloading hight:3700mm |
|
| electric drive drum | 50100－18.5KW－2.5 | 1 | Zibo, Shandong | ||||
| Annular flat belt | 1000×4－38m nylon belt | 1 | Hebei | ||||
| Belt machine carrier rollers | φ89×375 | 1 set | Beian , Shandong | ||||
| Belt machine carrier rollers | φ89×1150 | 1set | Beian , Shandong | ||||
| Vertical roll | 1set | Beian , Shandong | |||||
| Final storage bin | 8m³ (stacked) iron plate using 5mm | 1 | Beian , Shandong | ||||
| Vibrator | 1.1KW | 1 | Xinxiang, Henan | ||||
| 8 | Air circuit system | Solenoid valve | 4V310 | 2 | Zhejiang | ||
| Motor | Y132S1－2－5.5KWB3 | 1 | Beian ,Shandong | ||||
| Air compressor | 0.67/7－5.5KW | 1 | |||||
| Air cylinder | 100×250 | 4 | |||||
| 9 | Electrical control system | Electrical components | 1 | Chint Dexie |
Electrical components can be optional Adopt 485 communication connection |
||
| Control system | 1 | Beian , Shandong | |||||
| Computer host | 1 | Lenovo | |||||
| Monitor | 1 | Lenovo | |||||
| Inverter | 3.7kw | 5 | Hai Li Pu | ||||
| Inverter | 5.5kw | 2 | Hai Li Pu | ||||
| 11 | Attachments | Special tools | 1 | Beian ,Shandong | |||
| user guide | 1 | Beian ,Shandong | |||||
| Certificate of Conformity | 1 | Beian ,Shandong | |||||
Note: 1 Due to technical improvement,the origin of purchased parts and the model of technical parameters may be changed, but the functions are not worse than the existing ones;
2 The buyer needs to prepare the following facilities: the concrete foundation of the mixing station, the power supply to the power distribution cabinet of the mixing station and the water storage source of the mixing station; the mechanical oil required for the equipment, and the necessary lightning protection system in the mixing station.
Product Configuration:
1,Batching Supply System: It includes a Divided Hopper, Speed-Controlled Frequency-Controlled Metering Belt Machine, and a Belt Conveyor.
2,Cement Material Supply System: Components include a Cement Silo or Cement Hopper, Speed-Controlled Variable Frequency Metering Impeller Feeder, and a Spiral Electronic Weighing Conveyor.
3,Automatic Water Supply System: This is made up of a Pressure Tank, Submersible Pump, Pipeline, Pressure Reducing Valve, Water Flow Meter, and a Water Sprinkler.
4,Mixing System: This includes a Motor Reducer and a Double Horizontal Shaft Continuous Mixer.
5,Storage Bin Device System: This has a Double Discharge Storage Bin, an Inclined Belt Machine, and an Air Compressor.
6,Electrical System: It consists of an Operation Control Cabinet and an Operation Room.
7,Measuring Control System: Top-quality Electronic Parts with a Frequency Conversion Speed Control and a Microcomputer Control for both Manual and Automatic forms. This machine also has a Bulk Cement Silo (including a Screw Conveyor). For Bagged Cement Hopper, another device can be equipped if needed by the user.
The Beian WDJ300/WDJ400/WDJ500/WDJ600/WDJ700/WDJ800 Stabilized Soil Mixing Plant is a reliable and efficient piece of equipment for producing high quality, stabilized soil. It is suitable for a variety of applications, such as road and bridge construction, excavation, earthwork and other engineering projects. This stabilized soil batching plant features a discharging height of ≤3.8m, a dimension of 18m×8m×10m and a bag-type dust collector for purifying the air. It also has a 60s mixing cycle which ensures that the soil is evenly mixed for improved stability and strength. With its high performance features, the Beian WDJ stabilized soil mixing plant is the perfect choice for any construction project.
Our Stabilized Soil Mixing Plant comes with a full range of technical support and services. Our experienced and knowledgeable staff can provide assistance on installation, commissioning, maintenance, and troubleshooting. We also provide technical training and workshops to help ensure that users are familiar with the proper operation and maintenance of the plant. In addition, we offer customized solutions to meet the specific needs of our clients and to ensure that they get the most out of their investment.
We are also available to provide on-site service and repairs, as well as to answer questions and provide advice on best practices when using the plant. Our team of experts is always ready to help and we strive to provide the highest level of customer service possible.
A1: The Brand Name is Beian.
A2: The available Model Numbers are WDJ300/WDJ400/WDJ500/WDJ600/WDJ700/WDJ800.
A3: Stabilized Soil Mixing Plant is made in China.
A4: Stabilized Soil Mixing Plant is equipped with high quality wear-resistant steel plates, high efficiency stirring blades and automatic lubrication system. It is highly efficient and stable.
A5: Stabilized Soil Mixing Plant has the advantages of advanced technology, simple operation and easy maintenance. It is energy-saving and eco-friendly.
