Four Hopper Stabilized Soil Mixing Plant For Railways Construction

1 unit

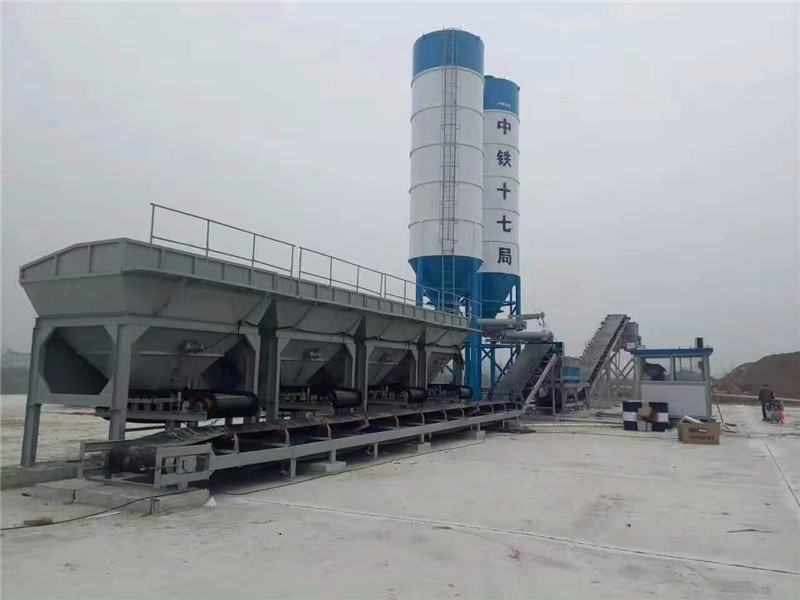

Four Hopper Stabilized Soil Mixing Plant For Railways Construction
Features Gallery Product Description Request A Quote
Mixer Type: Twin-shaft Forced Concrete Mixer
Total Power: ≤200KW
Dimension: 18m×8m×10m
Mixing Cycle: 60s
Cement Weighing Accuracy: ±1%
Water Weighing Accuracy: ±1%
Discharging Height: ≤3.8m
Aggregate Weighing Accuracy: ±2%
High Light:

Four Hopper Stabilized Soil Mixing Plant


Railways Construction Stabilized Soil Mixing Plant


Four Hopper stabilized soil mixing station

Basic Infomation
Place of Origin: China
Brand Name: Beian
Model Number: WDJ300/WDJ400/WDJ500/WDJ600/WDJ700/WDJ800
Payment & Shipping Terms
Packaging Details: Bare Packing
Delivery Time: 15 days
Payment Terms: deposit, full payment before shipment
Supply Ability: 1-100 units/month
Product Description

Product Description:

WDJ series Stabilized Soil Mixing Plant is modern equipment specially designed for continuous mixing of road base material. It is the combination of the best domestic and foreign technology, boasting factors such as stability and reliability, as well as competitive price.

WBZ series is a Stabilized Soil Mixing Plant developed by our company which meets the construction needs of high-grade highways, urban roads, airports, docks,sports fields, and other facilities. It is capable of using varying mixed materials such as lime, slaked lime, soil, sand and gravel, fly ash, and cement.

When installed, it can ensure the production of cement stabilized sand and gravel, grey soil stabilized base material, compressible concrete and other grass-roots materials. Thanks to its accurate proportional control and even mixture, the products conform to all the construction requirements.



  • Product Name: Stabilized Soil Mixing Plant
  • Cement Weighing Accuracy: ±1%
  • Mixing Cycle: 60s
  • Weight: ≤50t
  • Aggregate Weighing Accuracy: ±2%
  • Ideal for the construction of highways, railways, airports, ports, hydropower stations and other large-scale projects
  • Specialized in producing stabilized soil batching plants, stabilized soil mixing plants and stabilization soil mixing station for Highway


Technical Parameters:


WDJ300.400.500.600.700.800 type stabilized soil mixing plant main performance parameters:


Parameter Model WDJ300 WDJ400 WDJ500 WDJ600 WDJ700 WDJ800
Productivity 300t/h 400t/h 500t/h 600t/h 700t/h 800t/h
Measuring method Computerized Computerized Computerized Computerized Computerized Computerized
Adjustment method Variable frequency speed control Variable frequency speed control Variable frequency speed control Variable frequency speed control Variable frequency speed control Variable frequency speed control
Control mode automatic automatic automatic automatic automatic automatic
Weighing accuracy (aggregate) ±2% ±2% ±2% ±2% ±2% ±2%
Weighing accuracy (powder) ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Main motor power 37KW 45KW 60KW 75KW 90KW 110KW
Total Weight 24t 24t 27t 27t 30t 30t
Total power 115KW 125KW 140KW 155KW 180KW 200KW


WDJ600 D computer measured and frequency speed controlled stabilized soil mixing plant sub-configuration table

No. Part Name Specification Model Quantity Place of Origin Remarks
1 Complete machine
  • Rated production capacity:100~600t/h of sand and gravel
  • Total power:155KW

3,Maximum grain size of mixing aggregate: 60mm

4,Measuring accuracy of aggregate: ±0.5-1%

5,Measuring accuracy of powder material: ±0.5-1%

6,Assembly form: detachable type


8,Configuration: four hopper and one bin (double motors)

Aggregate hopper, finished bin iron plate adopts 5mm,;flat belt machine, inclined belt machine channel steel adopts 18;aggregate hopper, mixer legs adopts 20 I-beam,. Flat belt and inclined belt adopt nylon belt.







2 Aggregate batching system Aggregate hopper 12m³ iron plate using 5mm 4 Beian,Shandong

Combination type: Single bin composition

Hopper width: 3300mm

Vibrator 1.1KW 4 Henan Xinxiang
Grid screen


Grid-reinforced screen


4 Beian,Shandong
Belt scale Weighing accuracy ±0.5-1% 4 Beian,Shandong
Belt scale drum 4KW 4



Pressure sensor 150Kg 4 Bengbu Anhui
Belt scale carrier rollers φ89×1080 1set Beian,Shandong
Belt scale carrier roller φ89×1040 1set Beian,Shandong
Pressure belt pulley   1 Beian ,Shandong
Dosing belt machine Frame channel steel [18 1 Beian ,Shandong
Motorized pulley 50100-15KW-2.5 1 Beian ,Shandong
Ring flat belt 1000×5-39.3m nylon belt 1 Hebei
Belt machine carrier rollers φ89×375 1 set Beian ,Shandong
Belt machine carrier rollers φ89×1150 1 set Beian ,Shandong
Vertical stick   1 set Beian ,Shandong
3 Powder supply system Feeding system Powder bin 80—100T 1 Beian ,Shandong
Dust removal None   Beian ,Shandong
Gate valve 800×800 1 Beian ,Shandong
Gate valve hand wheel 320 2 Beian ,Shandong
Screw conveyor φ325×2700mm 1 Beian ,Shandong
Spiral motor 5.5KW 1 Beian ,Shandong
Steel wire rope φ6-10m 1 Beian ,Shandong
Cloth bag φ325 2 Beian ,Shandong
Spiral electronic scale Φ325×1400mm 1 Beian ,Shandong
Electronic weighing motor 4KW 1 Beian ,Shandong
Current tension sensor 500Kg 1



4 Operation room Control room   1 Beian ,Shandong

Control mode:

Computer control


Air conditioner 1.2HP (cooling and heating type) 1
5 water supply system submersible pump 2.2KW 1 Zibo , Shandong water mode: frequency regulation
Water pump flow 40m³/h 1 Beian ,Shandong
6 Mixing device Mixer   1 Beian ,Shandong

machine type:

Double horizontal shaft strong

Continuous type

Double motor 37KW 2 motor
Blade High manganese alloy wear-resistant material 60 Weifang, Shandong
Speed reducer ZLY180 2 Zibo, Shandong
7 Storage device Inclined belt machine

Installation inclination Q=18°

Frame channel :steel [18

1 Beian ,Shandong

Bucket door drive

Method: Pneumatic


storage bin

Unloading hight:3700mm


electric drive drum 50100-18.5KW-2.5 1 Zibo, Shandong
Annular flat belt 1000×4-38m nylon belt 1 Hebei
Belt machine carrier rollers φ89×375 1 set Beian ,Shandong
Belt machine carrier rollers φ89×1150 1set Beian ,Shandong
Final storage bin 8m³ iron plate using 5mm 1 Beian ,Shandong
Vibrator 0.5KW 2 Xinxiang, Henan
Electric bell   1 Beian ,Shandong
8 Air circuit system Solenoid valve 4V310 2 Zhejiang
Motor Y132S1-2-5.5KWB3 1 Beian ,Shandong
Air compressor 0.67/7-5.5KW 1
Air cylinder 100×250 4
9 Electrical control system Electrical components   1 Chint Dexie

Electrical components can be optional

Adopt 485 communication connection

Control system   1 Beian , Shandong
Computer host   1 Lenovo
Monitor   1 Lenovo
Inverter 3.7kw 4 Hai Li Pu
Inverter 5.5kw 1 Hai Li Pu
11 Attachments Special tools   1 Beian ,Shandong
user guide   1 Beian ,Shandong
Certificate of Conformity   1 Beian ,Shandong

Note: 1 Due to technical improvement,the origin of purchased parts and the model of technical parameters may be changed, but the functions are not worse than the existing ones;

2 The buyer needs to prepare the following facilities: the concrete foundation of the mixing station, the power supply to the power distribution cabinet of the mixing station and the water storage source of the mixing station; the mechanical oil required for the equipment, and the necessary lightning protection system in the mixing station.


Product configuration:

1. Batching Supply System: it consists of a dividing hopper, a speed-controlled frequency-controlled metering belt machine, and a belt conveyor.

2. Cement Material Supply System: it consists of a cement silo (cement hopper), a speed-controlled variable frequency metering impeller feeder, and a spiral electronic weighing conveyor.

3. Automatic Water Supply System: it consists of a pressure tank, submersible pump, pipeline, pressure reducing valve, water flow meter, and water sprinkler.

4. Mixing System: it consists of a motor reducer and a double horizontal shaft continuous mixer.

5. Storage Bin Device System: it consists of a double discharge storage bin, an inclined belt machine, and an air compressor.

6. Electrical System: it consists of an operation control cabinet and an operation room.

7. Measuring Control System: it is equipped with domestic famous manufacturer electronic parts, frequency conversion speed control, and microcomputer control with manual and automatic two forms. It also comes with a bulk cement silo (including screw conveyor). As for the bagged cement hopper, it can be equipped with another device upon a user's need.



Support and Services:



Stabilized Soil Mixing Plant Technical Support and Service

We provide technical support and service for our stabilized soil mixing plant. Our experienced technical personnel can provide you with the following technical services:

  • Installation and commissioning of equipment
  • Troubleshooting and maintenance
  • Training of operators
  • Provide spare parts and consumables
  • Provide technical advice

If you have any questions or need technical support, please contact us. We are always here to help.




Q: What type of stabilized soil mixing plant does Beian provide?
A: Beian provides WDJ300/WDJ400/WDJ500/WDJ600/WDJ700/WDJ800 stabilized soil mixing plants.
Q: Where does Beian's stabilized soil mixing plant come from?
A: Beian's stabilized soil mixing plant is made in China.
Q: What is the capacity of Beian's stabilized soil mixing plant?
A: The capacity of Beian's stabilized soil mixing plant ranges from 300t/h to 800t/h.
Q: What is the power of Beian's stabilized soil mixing plant?
A: The power of Beian's stabilized soil mixing plant ranges from 150kw to 400kw.
Q: What are the advantages of Beian's stabilized soil mixing plant?
A: Beian's stabilized soil mixing plant has the advantages of high efficiency, low energy consumption, high degree of automation, low failure rate, and convenient maintenance.
