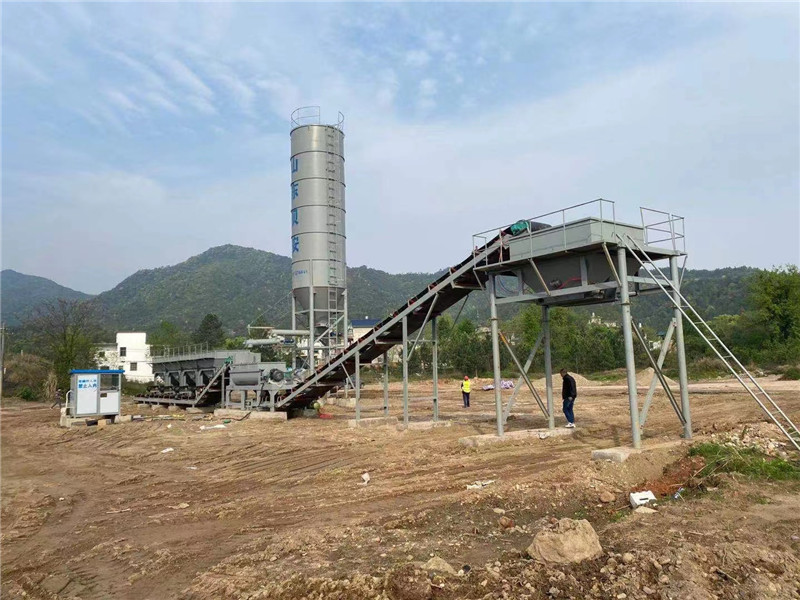

The WDJ series stabilized soil mixing plant is the perfect choice of equipment to facilitate the mixing of materials for roads. It has been developed on the basis of incorporating the best aspects of similar continuous mixing plant designs from both at home and abroad. Specifically tailored to suit the needs of base material for the construction of high-grade highways, city streets, airports, docks, sports arenas, and other facilities, our WBZ series stabilized soil mixing plant is available at a cost-effective price.
The soil, sand, and gravel mixture is created using aggregates like lime, slaked lime (water content ranging between 10-15%), mines, and cement combined with land-based and fly ash raw materials. This special mixture produced is known as cement-stabilized sand and gravel, gray soil-stabilized soil base material, compressible concrete, and other fundamental base materials. These ingredients are accurately weighed and thoroughly blended together to fulfill the construction requirements.
WDJ300.400.500.600.700.800 type stabilized soil mixing plant main performance parameters:
| Parameter Model | WDJ300 | WDJ400 | WDJ500 | WDJ600 | WDJ700 | WDJ800 |
| Productivity | 300t/h | 400t/h | 500t/h | 600t/h | 700t/h | 800t/h |
| Measuring method | Computerized | Computerized | Computerized | Computerized | Computerized | Computerized |
| Adjustment method | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control |
| Control mode | automatic | automatic | automatic | automatic | automatic | automatic |
| Weighing accuracy (aggregate) | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Weighing accuracy (powder) | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Main motor power | 37KW | 45KW | 60KW | 75KW | 90KW | 110KW |
| Total Weight | 24t | 24t | 27t | 27t | 30t | 30t |
| Total power | 115KW | 125KW | 140KW | 155KW | 180KW | 200KW |
WDJ600 D computer measured and frequency speed controlled stabilized soil mixing plant sub-configuration table
| No. | Part Name | Specification Model | Quantity | Place of Origin | Remarks | ||
| 1 | Complete machine |
3,Maximum grain size of mixing aggregate: 60mm 4,Measuring accuracy of aggregate: ±0.5-1% 5,Measuring accuracy of powder material: ±0.5-1% 6,Assembly form: detachable type 7,Area:43m*15m 8,Configuration: four hopper and one bin (double motors) |
Aggregate hopper, finished bin iron plate adopts 5mm,;flat belt machine, inclined belt machine channel steel adopts 18;aggregate hopper, mixer legs adopts 20 I-beam,. Flat belt and inclined belt adopt nylon belt.
|
||||
| 2 | Aggregate batching system | Aggregate hopper | 12m³ iron plate using 5mm | 4 | Beian,Shandong |
Combination type: Single bin composition Hopper width: 3300mm |
|
| Vibrator | 1.1KW | 4 | Henan Xinxiang | ||||
| Grid screen |
Grid-reinforced screen
|
4 | Beian,Shandong | ||||
| Belt scale | Weighing accuracy ±0.5-1% | 4 | Beian,Shandong | ||||
| Belt scale drum | 4KW | 4 |
Zibo Shandong |
||||
| Pressure sensor | 150Kg | 4 | Bengbu Anhui | ||||
| Belt scale carrier rollers | φ89×1080 | 1set | Beian,Shandong | ||||
| Belt scale carrier roller | φ89×1040 | 1set | Beian,Shandong | ||||
| Pressure belt pulley | 1 | Beian ,Shandong | |||||
| Dosing belt machine Frame | channel steel [18 | 1 | Beian ,Shandong | ||||
| Motorized pulley | 50100－15KW－2.5 | 1 | Beian ,Shandong | ||||
| Ring flat belt | 1000×5－39.3m nylon belt | 1 | Hebei | ||||
| Belt machine carrier rollers | φ89×375 | 1 set | Beian ,Shandong | ||||
| Belt machine carrier rollers | φ89×1150 | 1 set | Beian ,Shandong | ||||
| Vertical stick | 1 set | Beian ,Shandong | |||||
| 3 | Powder supply system | Feeding system Powder bin | 80—100T | 1 | Beian ,Shandong | ||
| Dust removal | None | Beian ,Shandong | |||||
| Gate valve | 800×800 | 1 | Beian ,Shandong | ||||
| Gate valve hand wheel | 320 | 2 | Beian ,Shandong | ||||
| Screw conveyor | φ325×2700mm | 1 | Beian ,Shandong | ||||
| Spiral motor | 5.5KW | 1 | Beian ,Shandong | ||||
| Steel wire rope | φ6－10m | 1 | Beian ,Shandong | ||||
| Cloth bag | φ325 | 2 | Beian ,Shandong | ||||
| Spiral electronic scale | Φ325×1400mm | 1 | Beian ,Shandong | ||||
| Electronic weighing motor | 4KW | 1 | Beian ,Shandong | ||||
| Current tension sensor | 500Kg | 1 |
Bengbu, Anhui |
||||
| 4 | Operation room | Control room | 1 | Beian ,Shandong |
Control mode: Computer control
|
||
| Air conditioner | 1.2HP (cooling and heating type) | 1 | |||||
| 5 | water supply system | submersible pump | 2.2KW | 1 | Zibo , Shandong | water mode: frequency regulation | |
| Water pump flow | 40m³/h | 1 | Beian ,Shandong | ||||
| 6 | Mixing device | Mixer | 1 | Beian ,Shandong |
machine type: Double horizontal shaft strong Continuous type |
||
| Double motor | 37KW | 2 | motor | ||||
| Blade | High manganese alloy wear-resistant material | 60 | Weifang, Shandong | ||||
| Speed reducer | ZLY180 | 2 | Zibo, Shandong | ||||
| 7 | Storage device | Inclined belt machine |
Installation inclination Q=18° Frame channel :steel [18 |
1 | Beian ,Shandong |
Bucket door drive Method: Pneumatic
storage bin Unloading hight:3700mm
|
|
| electric drive drum | 50100－18.5KW－2.5 | 1 | Zibo, Shandong | ||||
| Annular flat belt | 1000×4－38m nylon belt | 1 | Hebei | ||||
| Belt machine carrier rollers | φ89×375 | 1 set | Beian ,Shandong | ||||
| Belt machine carrier rollers | φ89×1150 | 1set | Beian ,Shandong | ||||
| Final storage bin | 8m³ iron plate using 5mm | 1 | Beian ,Shandong | ||||
| Vibrator | 0.5KW | 2 | Xinxiang, Henan | ||||
| Electric bell | 1 | Beian ,Shandong | |||||
| 8 | Air circuit system | Solenoid valve | 4V310 | 2 | Zhejiang | ||
| Motor | Y132S1－2－5.5KWB3 | 1 | Beian ,Shandong | ||||
| Air compressor | 0.67/7－5.5KW | 1 | |||||
| Air cylinder | 100×250 | 4 | |||||
| 9 | Electrical control system | Electrical components | 1 | Chint Dexie |
Electrical components can be optional Adopt 485 communication connection |
||
| Control system | 1 | Beian , Shandong | |||||
| Computer host | 1 | Lenovo | |||||
| Monitor | 1 | Lenovo | |||||
| Inverter | 3.7kw | 4 | Hai Li Pu | ||||
| Inverter | 5.5kw | 1 | Hai Li Pu | ||||
| 11 | Attachments | Special tools | 1 | Beian ,Shandong | |||
| user guide | 1 | Beian ,Shandong | |||||
| Certificate of Conformity | 1 | Beian ,Shandong | |||||
Note: 1 Due to technical improvement,the origin of purchased parts and the model of technical parameters may be changed, but the functions are not worse than the existing ones;
2 The buyer needs to prepare the following facilities: the concrete foundation of the mixing station, the power supply to the power distribution cabinet of the mixing station and the water storage source of the mixing station; the mechanical oil required for the equipment, and the necessary lightning protection system in the mixing station.
Product configuration:
1,Batching supply system: This system includes a dividing hopper, speed-controlled frequency-controlled metering belt machine, and belt conveyor.
2,Cement material supply system: This system consists of a cement silo (cement hopper), speed-controlled variable frequency metering impeller feeder, and spiral electronic weighing conveyor.
3,Automatic water supply system: This system includes a pressure tank, submersible pump, pipeline, pressure reducing valve, water flow meter, and water sprinkler.
4,Mixing system: This system consists of a motor reducer, and double horizontal shaft continuous mixer.
5, Storage bin device system: This system consists of a double discharge storage bin, inclined belt machine, and air compressor.
6,Electrical system: This system includes an operation control cabinet and an operation room.
7,Measuring control system: This system adopts domestic famous manufacturer electronic parts, frequency conversion speed control, and microcomputer control manual and automatic two forms. This machine is equipped with a bulk cement silo (including screw conveyor). It can also be equipped with a bagged cement hopper according to the user's needs.
The Beian WDJ300/WDJ400/WDJ500/WDJ600/WDJ700/WDJ800 stabilized soil mixing station is designed for creating lime stabilized soil mixtures for use in construction projects such as highways and roads.
We provide comprehensive technical support and service for our Stabilized Soil Mixing Plant. Our experienced engineers and technicians will be available to answer any questions you may have and offer solutions for any problems you may encounter.
We provide timely after-sales service to ensure your Stabilized Soil Mixing Plant is running at its optimal performance. Our service includes regular inspection and maintenance service, troubleshooting and repair, and spare parts replacement.
We also provide training services to help you operate and maintain the Stabilized Soil Mixing Plant. Our training services cover topics such as safety, operating instructions, and maintenance. We also offer customized training courses to meet the specific needs of our customers.
If you need any assistance with your Stabilized Soil Mixing Plant, please contact us and we will be more than happy to help.
A1: The Brand Name of the Stabilized Soil Mixing Plant is Beian.
A2: The available Model Numbers of the Stabilized Soil Mixing Plant are WDJ300/WDJ400/WDJ500/WDJ600/WDJ700/WDJ800.
A3: The Stabilized Soil Mixing Plant is produced in China.
A4: The Stabilized Soil Mixing Plant has two layers of mixing blades.
A5: The rated output of the Stabilized Soil Mixing Plant is 300-800t/h.
