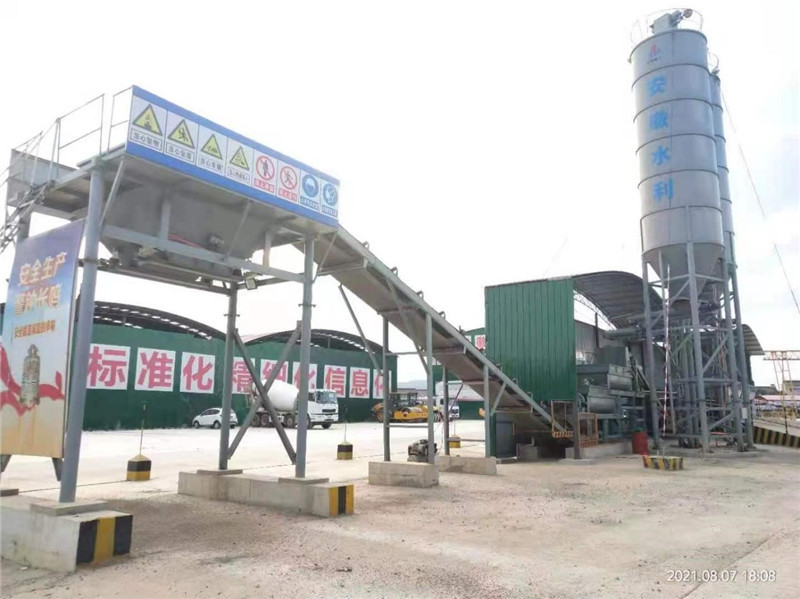

Stabilization Soil Mixing Station for Highway Cement Weighing Accuracy WDJ600
The WDJ series stabilized soil mixing plant is specifically designed for continuous mixing of road base material. This state-of-the-art equipment is developed based on the advantages of the continuous stabilized soil mixing plant from both at home and abroad, thus ensuring top quality technical performance.
The WBZ series stabilized soil mixing plant from our company offers a competitive price. It is specially designed to meet the needs of grass-roots materials for high-grade highways, urban roads, airports, docks, sports fields, and other facilities. It is engineered with the first of its kind technology from domestic and international sources.
The machine can use a variety of raw materials to produce different base materials, including cement-stabilized sand and gravel, gray soil stabilized base material, and compressible concrete. With accurate proportion and even mixing, the materials produced by the machine meet the corresponding governmental construction standards.
WDJ300.400.500.600.700.800 type stabilized soil mixing plant main performance parameters:
| Parameter Model | WDJ300 | WDJ400 | WDJ500 | WDJ600 | WDJ700 | WDJ800 |
| Productivity | 300t/h | 400t/h | 500t/h | 600t/h | 700t/h | 800t/h |
| Measuring method | Computerized | Computerized | Computerized | Computerized | Computerized | Computerized |
| Adjustment method | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control |
| Control mode | automatic | automatic | automatic | automatic | automatic | automatic |
| Weighing accuracy (aggregate) | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Weighing accuracy (powder) | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Main motor power | 37KW | 45KW | 60KW | 75KW | 90KW | 110KW |
| Total Weight | 24t | 24t | 27t | 27t | 30t | 30t |
| Total power | 115KW | 125KW | 140KW | 155KW | 180KW | 200KW |
WDJ600 D type computer measured and frequency speed controlled stabilized soil mixing plant sub-configuration table
| No. | Part Name | Specification Model | Quantity | Place of Origin | Remarks | ||
| 1 | Complete machine |
6,Assembly form: detachable type 7, Area:50m*15m 8 Configuration:Four hoppers and two bins (double motor secondary mixing superposition type) |
Aggregate hopper, finished bin iron plate adopts 5mm,;flat belt machine, inclined belt machine channel steel adopts 18;aggregate hopper, mixer legs adopts 20 I-beam,. Flat belt and inclined belt adopt nylon belt. .
|
||||
| 2 |
Aggregate batching system
|
Aggregate hopper | 12m³ iron plate using 5mm | 4 | Beian,Shandong |
Combination type: Single bin composition Hopper width: 3300mm |
|
| Vibrator | 1.1KW | 4 | Henan Xinxiang | ||||
| Grid screen |
Grid-reinforced screen
|
4 | Beian,Shandong | ||||
| Belt scale | Weighing accuracy ±0.5-1% | 4 | Beian,Shandong | ||||
| Belt scale drum | 4KW | 4 |
Zibo Shandong |
||||
| Pressure sensor | 150Kg | 4 | Bengbu Anhui | ||||
| Belt scale carrier rollers | φ89×1080 | 1set | Beian,Shandong | ||||
| Belt scale carrier roller | φ89×1040 | 1set | Beian,Shandong | ||||
| Pressure belt pulley | 1 | Beian ,Shandong | |||||
| Dosing belt machine Frame | channel steel [18 | 1 | Beian ,Shandong | ||||
| Motorized pulley | 50100－15KW－2.5 | 1 | Beian ,Shandong | ||||
| Ring flat belt | 1000×5－47.5m nylon belt | 1 | Hebei | ||||
| Belt machine carrier rollers | φ89×375 | 1 set | Beian ,Shandong | ||||
| Belt machine carrier rollers | φ89×1150 | 1 set | Beian ,Shandong | ||||
| Vertical stick | 1 set | Beian ,Shandong | |||||
| 3 | Powder supply system | Feeding system Powder bin | 80—100T | 2 | Beian ,Shandong | ||
| Dust removal | None | optional | |||||
| Gate valve | 800×800 | 2 | Beian ,Shandong | ||||
| Gate valve hand wheel | 320 | 4 | Beian ,Shandong | ||||
| Screw conveyor | φ325×2700mm | 2 | Beian ,Shandong | ||||
| Spiral motor | 5.5KW | 2 | Beian ,Shandong | ||||
| Steel wire rope | φ6－10m | 2 | Beian ,Shandong | ||||
| Cloth bag | φ325 | 4 | Beian ,Shandong | ||||
| Spiral electronic scale | Φ325×1400mm | 2 | Beian ,Shandong | ||||
| Electronic weighing motor | 4KW | 2 | Beian ,Shandong | ||||
| Current tension sensor | 500Kg | 2 |
Bengbu, Anhui |
||||
| 4 | Operation room | Control room | 1 | Beian ,Shandong |
Control mode: Computer control
|
||
| LED light | 1 | Beian ,Shandong | |||||
| Air conditioner | 1HP (cooling and heating type) | 1 | |||||
| socket | 1 | famous brand | |||||
| 5 | water supply system | submersible pump | 2.2KW | 1 | Zibo , Shandong | water control mode: frequency regulation | |
| Water pump flow | 40m³/h | 1 | Beian , Shandong | ||||
| Pipelines and fittings | 1 | Weifang, Shandong | |||||
| 6 | Mixing device | Mixer | 2 | Beian , Shandong |
machine type: Double horizontal shaft strong Continuous type |
||
| Double motor | 37KW | 4 | motor | ||||
| Blade | High manganese alloy wear-resistant material | 60*2 | Weifang, Shandong | ||||
| Speed reducer | ZLY180 | 4 | Zibo, Shandong | ||||
| 7 | Storage device | Inclined belt machine |
Installation inclination Q=18° Frame channel :steel [18 |
1 | Beian , Shandong |
Hopper door drive Method: Pneumatic
storage bin Unloading hight:3700mm |
|
| electric drive drum | 50100－18.5KW－2.5 | 1 | Zibo, Shandong | ||||
| Annular flat belt | 1000×4－38m nylon belt | 1 | Hebei | ||||
| Belt machine carrier rollers | φ89×375 | 1 set | Beian , Shandong | ||||
| Belt machine carrier rollers | φ89×1150 | 1set | Beian , Shandong | ||||
| Vertical roll | 1set | Beian , Shandong | |||||
| Final storage bin | 8m³ (stacked) iron plate using 5mm | 1 | Beian , Shandong | ||||
| Vibrator | 1.1KW | 1 | Xinxiang, Henan | ||||
| 8 | Air circuit system | Solenoid valve | 4V310 | 2 | Zhejiang | ||
| Motor | Y132S1－2－5.5KWB3 | 1 | Beian ,Shandong | ||||
| Air compressor | 0.67/7－5.5KW | 1 | |||||
| Air cylinder | 100×250 | 4 | |||||
| 9 | Electrical control system | Electrical components | 1 | Chint Dexie |
Electrical components can be optional Adopt 485 communication connection |
||
| Control system | 1 | Beian , Shandong | |||||
| Computer host | 1 | Lenovo | |||||
| Monitor | 1 | Lenovo | |||||
| Inverter | 3.7kw | 5 | Hai Li Pu | ||||
| Inverter | 5.5kw | 2 | Hai Li Pu | ||||
| 11 | Attachments | Special tools | 1 | Beian ,Shandong | |||
| user guide | 1 | Beian ,Shandong | |||||
| Certificate of Conformity | 1 | Beian ,Shandong | |||||
Note: 1 Due to technical improvement,the origin of purchased parts and the model of technical parameters may be changed, but the functions are not worse than the existing ones;
2 The buyer needs to prepare the following facilities: the concrete foundation of the mixing station, the power supply to the power distribution cabinet of the mixing station and the water storage source of the mixing station; the mechanical oil required for the equipment, and the necessary lightning protection system in the mixing station.
Product configuration:
1,Batching supply system: This system consists of a dividing hopper, a speed-controlled frequency-controlled metering belt machine, and a belt conveyor.
2,Cement material supply system: The cement material supply system is constituted by a cement silo (cement hopper), a speed-controlled variable frequency metering impeller feeder, and a spiral electronic weighing conveyor.
3,Automatic water supply system: This system is comprised of a pressure tank, a submersible pump, a pipeline, a pressure reducing valve, a water flow meter, and a water sprinkler.
4,Mixing system: The heart of this system is the motor reducer, and it is complemented by a double horizontal shaft continuous mixer.
5, Storage bin device system: This system is composed of a double discharge storage bin, an inclined belt machine, and an air compressor.
6,Electrical system: This system is composed of an operation control cabinet, and an operation room.
7,Measuring control system: The measuring control system adopts domestic famous manufacturer electronic parts, with frequency conversion speed control and microcomputer control with both manual and automatic modes. This machine is equipped with a bulk cement silo (including a screw conveyor). If a user needs, they can equip it with a bagged cement hopper.
Stabilized soil mixing plant, also known as stabilization soil mixing station for Highway, is a professional equipment for mixing various kinds of stabilized soil. The brand name of the stabilized soil mixing plant is Beian and the model numbers are WDJ300/WDJ400/WDJ500/WDJ600/WDJ700/WDJ800.
