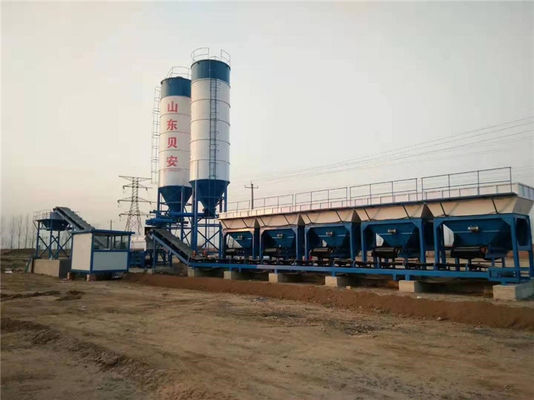

WDJ series stabilized soil mixing plant is a complete set of special equipment for continuous mixing of road base material which was developed by our company on the basis of absorbing the advantages of continuous stabilized soil mixing plant at home and abroad.
Our WBZ series stabilized soil mixing plant and graded gravel mixing plant with favorable price are both special mixing equipment developed and produced by our company to meet the construction needs of grass-roots materials for high-grade highways, urban roads, airports, docks, sports fields and other facilities by adopting the most advanced technology at home and abroad.
It can use lime, slaked lime (water content in 10-15%), soil, sand and gravel, fly ash, cement and other raw materials to produce cement stabilized sand and gravel, grey soil stabilized base material, compressible concrete and other grass-roots materials. The base materials produced by it are accurately proportioned, evenly mixed and meet the construction requirements.
WDJ300.400.500.600.700.800 type stabilized soil mixing plant main performance parameters:
| Parameter Model | WDJ300 | WDJ400 | WDJ500 | WDJ600 | WDJ700 | WDJ800 |
| Productivity | 300t/h | 400t/h | 500t/h | 600t/h | 700t/h | 800t/h |
| Measuring method | Computerized | Computerized | Computerized | Computerized | Computerized | Computerized |
| Adjustment method | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control |
| Control mode | automatic | automatic | automatic | automatic | automatic | automatic |
| Weighing accuracy (aggregate) | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Weighing accuracy (powder) | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Main motor power | 37KW | 45KW | 60KW | 75KW | 90KW | 110KW |
| Total Weight | 24t | 24t | 27t | 27t | 30t | 30t |
| Total power | 115KW | 125KW | 140KW | 155KW | 180KW | 200KW |
WDJ600 D computer measured and frequency speed controlled stabilized soil mixing plant sub-configuration table
| No. | Part Name | Specification Model | Quantity | Place of Origin | Remarks | ||
| 1 | Complete machine |
3,Maximum grain size of mixing aggregate: 60mm 4,Measuring accuracy of aggregate: ±0.5-1% 5,Measuring accuracy of powder material: ±0.5-1% 6,Assembly form: detachable type 7,Area:43m*15m 8,Configuration: four hopper and one bin (double motors) |
Aggregate hopper, finished bin iron plate adopts 5mm,;flat belt machine, inclined belt machine channel steel adopts 18;aggregate hopper, mixer legs adopts 20 I-beam,. Flat belt and inclined belt adopt nylon belt.
|
||||
| 2 | Aggregate batching system | Aggregate hopper | 12m³ iron plate using 5mm | 4 | Beian,Shandong |
Combination type: Single bin composition Hopper width: 3300mm |
|
| Vibrator | 1.1KW | 4 | Henan Xinxiang | ||||
| Grid screen |
Grid-reinforced screen
|
4 | Beian,Shandong | ||||
| Belt scale | Weighing accuracy ±0.5-1% | 4 | Beian,Shandong | ||||
| Belt scale drum | 4KW | 4 |
Zibo Shandong |
||||
| Pressure sensor | 150Kg | 4 | Bengbu Anhui | ||||
| Belt scale carrier rollers | φ89×1080 | 1set | Beian,Shandong | ||||
| Belt scale carrier roller | φ89×1040 | 1set | Beian,Shandong | ||||
| Pressure belt pulley | 1 | Beian ,Shandong | |||||
| Dosing belt machine Frame | channel steel [18 | 1 | Beian ,Shandong | ||||
| Motorized pulley | 50100－15KW－2.5 | 1 | Beian ,Shandong | ||||
| Ring flat belt | 1000×5－39.3m nylon belt | 1 | Hebei | ||||
| Belt machine carrier rollers | φ89×375 | 1 set | Beian ,Shandong | ||||
| Belt machine carrier rollers | φ89×1150 | 1 set | Beian ,Shandong | ||||
| Vertical stick | 1 set | Beian ,Shandong | |||||
| 3 | Powder supply system | Feeding system Powder bin | 80—100T | 1 | Beian ,Shandong | ||
| Dust removal | None | Beian ,Shandong | |||||
| Gate valve | 800×800 | 1 | Beian ,Shandong | ||||
| Gate valve hand wheel | 320 | 2 | Beian ,Shandong | ||||
| Screw conveyor | φ325×2700mm | 1 | Beian ,Shandong | ||||
| Spiral motor | 5.5KW | 1 | Beian ,Shandong | ||||
| Steel wire rope | φ6－10m | 1 | Beian ,Shandong | ||||
| Cloth bag | φ325 | 2 | Beian ,Shandong | ||||
| Spiral electronic scale | Φ325×1400mm | 1 | Beian ,Shandong | ||||
| Electronic weighing motor | 4KW | 1 | Beian ,Shandong | ||||
| Current tension sensor | 500Kg | 1 |
Bengbu, Anhui |
||||
| 4 | Operation room | Control room | 1 | Beian ,Shandong |
Control mode: Computer control
|
||
| Air conditioner | 1.2HP (cooling and heating type) | 1 | |||||
| 5 | water supply system | submersible pump | 2.2KW | 1 | Zibo , Shandong | water mode: frequency regulation | |
| Water pump flow | 40m³/h | 1 | Beian ,Shandong | ||||
| 6 | Mixing device | Mixer | 1 | Beian ,Shandong |
machine type: Double horizontal shaft strong Continuous type |
||
| Double motor | 37KW | 2 | motor | ||||
| Blade | High manganese alloy wear-resistant material | 60 | Weifang, Shandong | ||||
| Speed reducer | ZLY180 | 2 | Zibo, Shandong | ||||
| 7 | Storage device | Inclined belt machine |
Installation inclination Q=18° Frame channel :steel [18 |
1 | Beian ,Shandong |
Bucket door drive Method: Pneumatic
storage bin Unloading hight:3700mm
|
|
| electric drive drum | 50100－18.5KW－2.5 | 1 | Zibo, Shandong | ||||
| Annular flat belt | 1000×4－38m nylon belt | 1 | Hebei | ||||
| Belt machine carrier rollers | φ89×375 | 1 set | Beian ,Shandong | ||||
| Belt machine carrier rollers | φ89×1150 | 1set | Beian ,Shandong | ||||
| Final storage bin | 8m³ iron plate using 5mm | 1 | Beian ,Shandong | ||||
| Vibrator | 0.5KW | 2 | Xinxiang, Henan | ||||
| Electric bell | 1 | Beian ,Shandong | |||||
| 8 | Air circuit system | Solenoid valve | 4V310 | 2 | Zhejiang | ||
| Motor | Y132S1－2－5.5KWB3 | 1 | Beian ,Shandong | ||||
| Air compressor | 0.67/7－5.5KW | 1 | |||||
| Air cylinder | 100×250 | 4 | |||||
| 9 | Electrical control system | Electrical components | 1 | Chint Dexie |
Electrical components can be optional Adopt 485 communication connection |
||
| Control system | 1 | Beian , Shandong | |||||
| Computer host | 1 | Lenovo | |||||
| Monitor | 1 | Lenovo | |||||
| Inverter | 3.7kw | 4 | Hai Li Pu | ||||
| Inverter | 5.5kw | 1 | Hai Li Pu | ||||
| 11 | Attachments | Special tools | 1 | Beian ,Shandong | |||
| user guide | 1 | Beian ,Shandong | |||||
| Certificate of Conformity | 1 | Beian ,Shandong | |||||
Note: 1 Due to technical improvement,the origin of purchased parts and the model of technical parameters may be changed, but the functions are not worse than the existing ones;
2 The buyer needs to prepare the following facilities: the concrete foundation of the mixing station, the power supply to the power distribution cabinet of the mixing station and the water storage source of the mixing station; the mechanical oil required for the equipment, and the necessary lightning protection system in the mixing station.
Product configuration:
1,Batching supply system: consisting of dividing hopper, speed-controlled frequency-controlled metering belt machine, belt conveyor.
2,Cement material supply system: equipped with cement silo (cement hopper), speed-controlled variable frequency metering impeller feeder, spiral electronic weighing conveyor.
3,Automatic water supply system: pressure tank, submersible pump, pipeline, pressure reducing valve, water flow meter, water sprinkler.
4,Mixing system: motor reducer, double horizontal shaft continuous mixer.
5,Storage bin device system: double discharge storage bin, inclined belt machine, air compressor.
6,Electrical system: operation control cabinet, operation room.
7,Measuring control system: designed with domestic famous manufacturer electronic parts, frequency conversion speed control, microcomputer control manual and automatic two forms. This machine is equipped with bulk cement silo, (including screw conveyor). For bagged cement hopper, it can be equipped with another device according to the user's needs.
