300t/H Stabilized Soil Mixing Plant Fixed Mixing Plant Equipment Computerized

1 unit
MOQ
Negotiable
Price
300t/H Stabilized Soil Mixing Plant Fixed Mixing Plant Equipment Computerized
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Stabilized Soil Mixing Plant
Output Rate: 300t/h 400t/h 500t/h 600t/h 700t/h 800t/h
Measurement Method: Computer Measurement
Control Method: Automatic
Total Power: 90KW 100KW 130KW 140KW
Adjustment Method: Variable Frequency Speed Control
High Light:

300t/h Stabilized Soil Mixing Plant

,

300t/H Mixing Plant Equipment

,

Stabilized Soil Mixing Plant Computerized

Basic Infomation
Place of Origin: China
Brand Name: Beian
Model Number: WDJ300/WDJ400/WDJ500/WDJ600/WDJ700/WDJ800
Payment & Shipping Terms
Packaging Details: Bare Packing
Delivery Time: 15 days
Payment Terms: deposit, full payment before shipment
Supply Ability: 1-100 units/month
Product Description

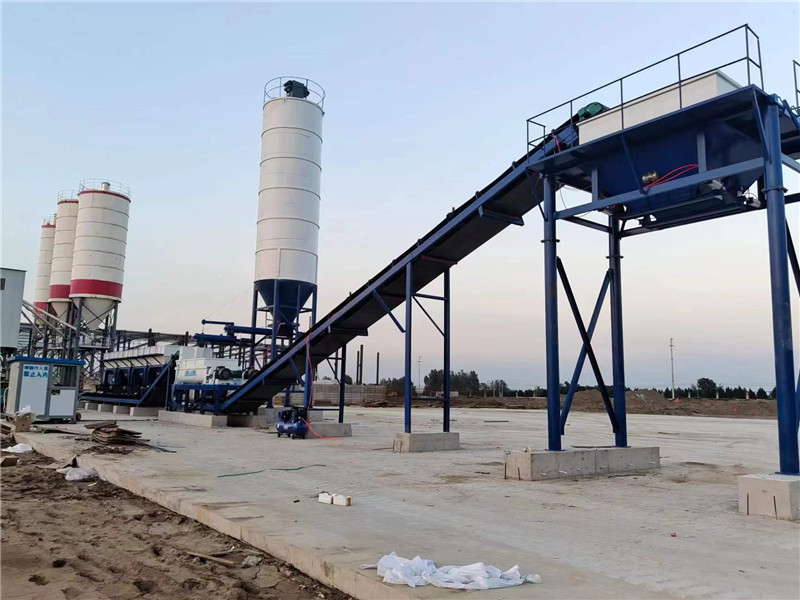

Introduction of the Stabilized soil mixing plant with vertical cement silo:

WDJ Series Stabilized Soil Mixing Plant is adapted to mix the basic materials for ordinary highways, high-grade highways, expressways, high-speed railroads and urban roads, sports fields, airports, etc. (According to the requirements of raw materials)

The machine's aggregate batching system and powder supply system adopt the domestic advanced computerized frequency-controlled belt weigher and spiral electronic weigher respectively. The computer belt weigher controls the speed of the belt weigher through its own load sensor and frequency converter, so as to realize continuous automatic quantitative feeding by a single machine. When the material proportioning needs to be changed, the operator only needs to adjust the proportioning value on its industrial control mainframe according to the adjusted proportioning amount of a certain material, and the computer belt weigher can then automatically quantitatively feed or batch the material, with simple operation and high metering accuracy.

The mixer with double motors and double reducers is continuous forced double horizontal shaft mixing, two mixing shafts equipped with cross slurry sheet, parallel and reversing each other, so that various kinds of stabilized soil materials with particle size less than 60mm can be fully mixed, the slurry sheet of the mixing shaft is made of high strength wear-resistant material, with long working life and easy to replace.

The machine is arranged in one-line or right-angle shape, with compact structure, reasonable arrangement and easy observation. Its control adopts centralized control and manual sequence start and stop.



Introduction of the Stabilized soil mixing plant with horizontal cement silo :

Cement silo is free from foundation and easy to install. Horizontal cement silo is composed of several legs, lower cone, silo body, feeding pipe, climbing ladder, safety explosion-proof valve, gravity dispersion, only need to harden below the horizontal cement tank can be placed and used, eliminating the trouble of making foundation and pre-burial, saving time and effort, low height and wide application.

The horizontal cement silo discharge cone is square cone, the silo body is corrugated board and profile framework welded together, and for vertical cement tanks, even the small tonnage of 50 tons of cement silo installed height is nearly 9 meters, while the overall height of horizontal cement tanks is low, especially suitable for use in the plant, and installation does not require the removal of plant roof. No need to do external encapsulation, saving cost. The horizontal cement tank has high strength and good airtightness, and because of the low height, it eliminates the need to do external encapsulation, which greatly saves the cost of use.







Product Description.

WDJ series stabilized soil mixing plant is a complete set of special equipment for continuous mixing of road base material, which is developed by our company on the basis of absorbing the advantages of continuous stabilized soil mixing plant at home and abroad.

Our WBZ series stabilized soil mixing plant and graded gravel mixing plant with favorable price is a special mixing equipment developed and produced by our company to meet the construction needs of grass-roots materials for high-grade highways, urban roads, airports, docks, sports fields and other facilities by adopting the first technology at home and abroad. It can use lime, slaked lime (water content in 10-15%), soil, sand and gravel, fly ash, cement and other raw materials to produce cement stabilized sand and gravel, grey soil stabilized base material, compressible concrete and other grass-roots materials. The base materials produced by it are accurately proportioned, evenly mixed and meet the construction requirements.







Application.

Stabilized soil mixing plant is used in the construction of grass-roots stabilized soil for high-grade highways, urban roads, squares and airports. It can continuously mix and produce different gradations of di-ash gravel, lime stabilized soil and industrial waste soil stabilized material.





Specification parameters.

WDJ300.400.500.600.700.800 type stabilized soil mixing plant main performance parameters:



Parameter Model WDJ300 WDJ400 WDJ500 WDJ600 WDJ700 WDJ800
Productivity 300t/h 400t/h 500t/h 600t/h 700t/h 800t/h
Measuring method Computerized Computerized Computerized Computerized Computerized Computerized
Adjustment method Variable frequency speed control Variable frequency speed control Variable frequency speed control Variable frequency speed control Variable frequency speed control Variable frequency speed control
Control mode automatic automatic automatic automatic automatic automatic
Weighing accuracy (aggregate) ±2% ±2% ±2% ±2% ±2% ±2%
Weighing accuracy (powder) ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Main motor power 37KW 45KW 60KW 75KW 90KW 110KW
Total Weight 24t 24t 27t 27t 30t 30t
Total power 115KW 125KW 140KW 155KW 180KW 200KW





Product configuration:

1, Batching supply system: dividing hopper, speed-controlled frequency-controlled metering belt machine, belt conveyor.

2, Cement material supply system: cement silo (cement hopper), speed-controlled variable frequency metering impeller feeder, spiral electronic weighing conveyor.

3, Automatic water supply system: pressure tank, submersible pump, pipeline, pressure reducing valve, water flow meter, water sprinkler.

4, Mixing system: motor reducer, double horizontal shaft continuous mixer.

5, Storage bin device system: double discharge storage bin, inclined belt machine, air compressor.

6, Electrical system: operation control cabinet, operation room.

7, Measuring control system: Adopt domestic famous manufacturer electronic parts, frequency conversion speed control, microcomputer control manual and automatic two forms. This machine is equipped with bulk cement silo, (including screw conveyor). For bagged cement hopper, it can be equipped with another device according to the user's needs.
