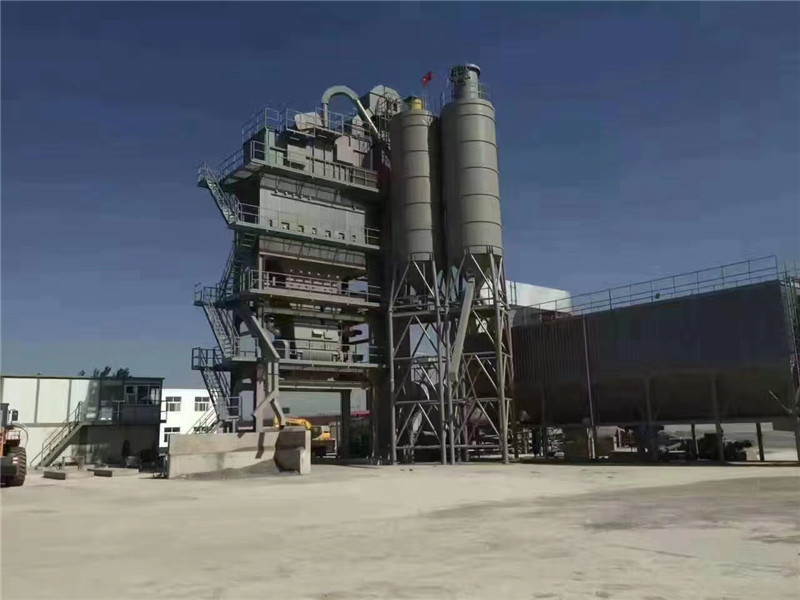

A stationary asphalt mixing plant is a type of asphalt plant that is designed to produce asphalt concrete and other related materials. It is often used in large-scale construction projects. This stationary asphalt mixing plant has an aggregate weighing accuracy of ±0.5%, a vibrating screen with 4-layer, 5-layer or 6-layer, and a hot aggregate bin with 10-30m³ capacity. It also has an asphalt weighing accuracy of ±0.25%, and fuel type options including diesel, heavy oil, natural gas, coal, and pulverized coal. It is the ideal choice for stationary asphalt plants and asphalt concrete mixing plants.
Our products feature high-level competitive advantages. Firstly, we use high-strength and wear-resistant materials to make the agitator, enhancing its service life. We also adopt the first-stage cyclone dust removal system, the second-stage water-type dust collector system and the negative pressure dust-proof design of the building in order to reduce investment costs for customers. Furthermore, our linear vibrating screen is powered by imported vibrating electric drives, resulting in improved screening efficiency and lower equipment failure rate. Additionally, our aggregate hoist uses plate chain hoisting, which increases the service life of the hoist and improves the stability of operation. Also, the optimized lifting plate structure of the drying drum makes the drying system more efficient and stable. Moreover, the whole machine follows modular design, making handling and installation faster and more convenient. Lastly, the fully automatic computer/manual control system with fault self-diagnosis feedback program makes operating the machine simpler and safer.
| Item | ||
| Production capacity (t/h) | 120 | 160 |
| Capacity per pot (kg) | 1800 | 2000 |
| Total installed capacity (kw) | 360 | 490 |
| Sand and gravel material (four kinds of material accumulation) metering accuracy | ± 0.5% | ± 0.5% |
| Powder (two kinds of material accumulation) measuring accuracy | ± 0.5% | ± 0.5% |
| Asphalt metering accuracy | ± 0.3% | ± 0.3% |
| Temperature control accuracy (℃) | ≤± 5 | ≤± 5 |
| Dust prevention efficiency (mg/Nm3) | ≤100 | ≤100 |
| Doser length × width (m) | 2.0 × 3.3 | 2.45 × 3.6 |
| Hopper capacity (m3) | 7 | 11.3 |
| Aggregate belt machine width (mm) | 500 | 650 |
| Aggregate belt machine power (kw) | 5.5 | 7.5 |
| Drying cylinder diameter × length | 1.8×6.54 | 2.2×8.0 |
| Drying cylinder power (kw) | 30 | 11×4 |
| Vibrating screen length×width(m) | 4.0×1.5 | 5×1.8 |
| Vibrating screen power (kw) | 5.5×2 | 11×2 |
| Weighing hopper stone capacity (kg) | 1500 | 2000 |
| Weighing hopper powder capacity (kg | 250 | 350 |
| Weighing hopper asphalt capacity (kg) | 200 | 300 |
| Mixing pot capacity (kg) | 1500 | 2000 |
| Mixing pot power (kw) | 37 | 75 |
Beian stationary asphalt mixing plant is ideal for asphalt production, road construction, highway maintenance, and other related applications. It provides great stability and reliability while ensuring high-quality asphalt production. It is the perfect choice for all your asphalt mixing needs.
Beian stationary asphalt mixing plant is a trusted and reliable solution for asphalt production. It is the perfect choice for all your asphalt mixing needs. With its high performance, cost-effective solution, and aggregate weighing accuracy of ±0.5%, Beian stationary asphalt mixing plant is your perfect choice!
