1. According to production capacity can be divided into: small, medium and large.
l Small size, that is, the productivity is below 40t/h;
l Medium-sized, that is, the productivity is 40-400t/h;
l Large size, that is, the productivity is above 400t/h.
2. According to the carrying method , it can be divided into: mobile type, semi-fixed type and fixed type.
l Mobile type: The silo and mixing pot have their own tires, which can be transferred with the construction site, and are suitable for county and township roads and low-grade road projects
l Semi-fixed type: The equipment is installed on several trailers and assembled at the construction site. It is mostly used for road construction.
l Fixed type: The operating site of the equipment is fixed, also known as asphalt concrete processing plant, which is suitable for centralized engineering and urban road construction.
3. According to the stirring method, it can be divided into: continuous drum type and intermittent forced type.
l Continuous drum type: It is produced in a continuous and uninterrupted mixing method, and the heating and drying of the aggregate and the mixing of the mixture are carried out continuously in the same drum.
l Forced intermittent type: The heating and drying of the aggregate and the stirring of the mixture are carried out periodically. The equipment stirs one pot and one pot separately, and each pot is stirred for 45 seconds to 60 seconds, and the output depends on the model of the equipment.
We have developed competitive advantage in our product. The agitator is made of high-strength and wear-resistant materials which can greatly improve the service life. Moreover, we aim to reduce the investment cost for customers by adopting the first-stage cyclone dust removal system,the second-stage water-type dust collector system and the negative pressure dust-proof design of the building. Besides, the linear vibrating screen driven by imported vibrating electric drives will also enhance the screening efficiency and effectively reduce the failure rate of equipment.
Additionally, we take the plate chain hoisting for the aggregate hoist, which has longer service life and increases the stability of operation. For the drying drum, we have optimized the structure of the lifting plate to makes the drying system more efficient and stable. Last but not least, we use modular design for the whole system that will allow the process of handling and installation much faster and more convenient. Besides, fully automatic computer/manual control system, with fault self-diagnosis feedback program, keeps the operation simple and safe.
| Item | ||
| Production capacity (t/h) | 120 | 160 |
| Capacity per pot (kg) | 1800 | 2000 |
| Total installed capacity (kw) | 360 | 490 |
| Sand and gravel material (four kinds of material accumulation) metering accuracy | ± 0.5% | ± 0.5% |
| Powder (two kinds of material accumulation) measuring accuracy | ± 0.5% | ± 0.5% |
| Asphalt metering accuracy | ± 0.3% | ± 0.3% |
| Temperature control accuracy (℃) | ≤± 5 | ≤± 5 |
| Dust prevention efficiency (mg/Nm3) | ≤100 | ≤100 |
| Doser length × width (m) | 2.0 × 3.3 | 2.45 × 3.6 |
| Hopper capacity (m3) | 7 | 11.3 |
| Aggregate belt machine width (mm) | 500 | 650 |
| Aggregate belt machine power (kw) | 5.5 | 7.5 |
| Drying cylinder diameter × length | 1.8×6.54 | 2.2×8.0 |
| Drying cylinder power (kw) | 30 | 11×4 |
| Vibrating screen length×width(m) | 4.0×1.5 | 5×1.8 |
| Vibrating screen power (kw) | 5.5×2 | 11×2 |
| Weighing hopper stone capacity (kg) | 1500 | 2000 |
| Weighing hopper powder capacity (kg | 250 | 350 |
| Weighing hopper asphalt capacity (kg) | 200 | 300 |
| Mixing pot capacity (kg) | 1500 | 2000 |
| Mixing pot power (kw) | 37 | 75 |

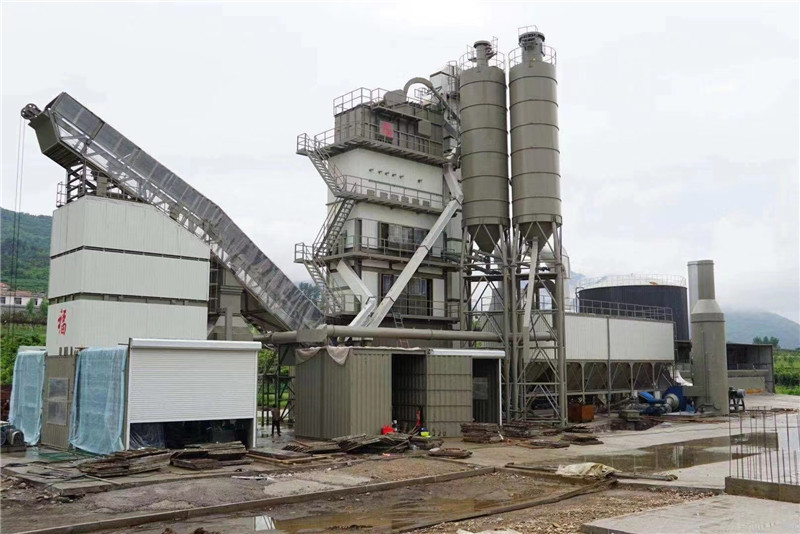

Beian Stationary Asphalt Mixing Plant is made in China and has been the top choice of asphalt concrete mixing plant for many years. It has a total power of ≤450kW and a mixer capacity of 500-4000kg/batch. The mixing cycle of 45s and fuel consumption of 5-7.5kg/t make it a highly efficient and reliable asphalt batching plant. Moreover, it is equipped with a dust collection system, including gravity dust collection, baghouse dust collection, and water dust collection, which ensures a safe and clean working environment.
Our Stationary Asphalt Mixing Plant comes with a comprehensive technical support and service package to ensure the best possible performance and reliability. We provide a wide range of services including:
