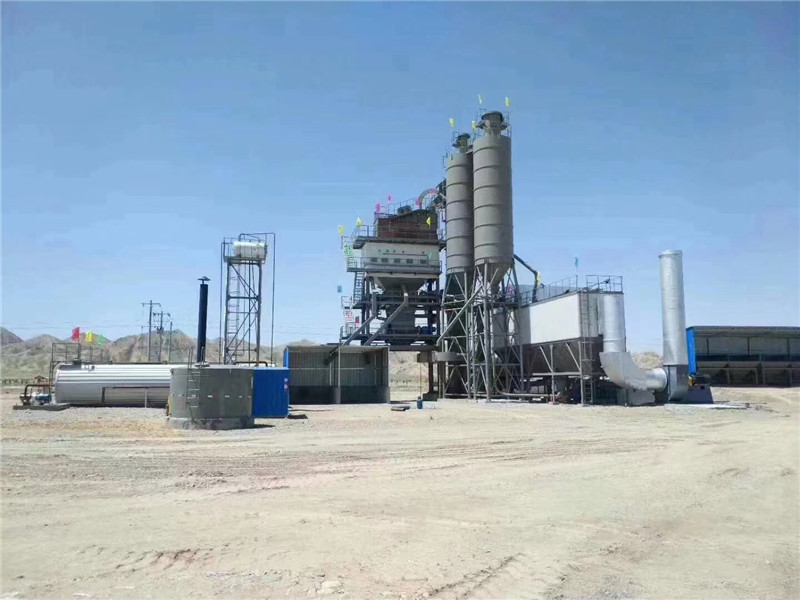

High Accuracy Stationary Asphalt Mixing Plant 160t/H For Municipal Roads Construction

1 unit
MOQ
Negotiable
Price
High Accuracy Stationary Asphalt Mixing Plant 160t/H For Municipal Roads Construction
Features Gallery Product Description Request A Quote
Features
Specifications
Total Power: Stationary Asphalt Mixing Plant
Capacity: 120t/h 160t/h
Feature: High Accuracy
Application: Municipal Roads Construction
Control System: Manual/ Semi-automatic/ Fully Automatic
Aggregate Weighing Accuracy: ±0.5%
Product Name: Stationary Asphalt Mixing Plant
High Light:

Stationary Asphalt Mixing Plant 160t/h

,

High Accuracy Stationary Asphalt Mixing Plant

,

asphalt mixing equipment 160t/H

Basic Infomation
Place of Origin: China
Brand Name: Beian
Payment & Shipping Terms
Packaging Details: Bare Packing
Delivery Time: 15 days
Payment Terms: deposit, full payment before shipment
Supply Ability: 1-100 units/month
Product Description

Product Description:

Our stationary asphalt mixing plant is designed to meet the requirements of high grade highway construction. It is composed of cold aggregate supply system, drum dryer, burning system, hot aggregate elevator, vibrating screen, weighing system, mixing tower, dust collecting system, filler supply system, bitumen supply system, electrical control system and finished asphalt storage bin.

This asphalt mixer plant is equipped with advanced technology and reliable performance, making it perfect for the construction and maintenance of high-grade highways.

1. According to production capacity can be divided into: small, medium and large.

l Small size, that is, the productivity is below 40t/h;

l Medium-sized, that is, the productivity is 40-400t/h;

l Large size, that is, the productivity is above 400t/h.

2. According to the carrying method , it can be divided into: mobile type, semi-fixed type and fixed type.

l Mobile type: The silo and mixing pot have their own tires, which can be transferred with the construction site, and are suitable for county and township roads and low-grade road projects

l Semi-fixed type: The equipment is installed on several trailers and assembled at the construction site. It is mostly used for road construction.

l Fixed type: The operating site of the equipment is fixed, also known as asphalt concrete processing plant, which is suitable for centralized engineering and urban road construction.

3. According to the stirring method, it can be divided into: continuous drum type and intermittent forced type.

l Continuous drum type: It is produced in a continuous and uninterrupted mixing method, and the heating and drying of the aggregate and the mixing of the mixture are carried out continuously in the same drum.

l Forced intermittent type: The heating and drying of the aggregate and the stirring of the mixture are carried out periodically. The equipment stirs one pot and one pot separately, and each pot is stirred for 45 seconds to 60 seconds, and the output depends on the model of the equipment.



Features:

Our products feature competitive advantages against our competitors:

One is the use of high-strength and wear-resistant materials on the agitator, which lengthens its service life.

We also have adopted the first-stage cyclone dust removal system and a second-stage water-type dust collector system, as well as a negative pressure dust-proof design of the building, all of which make it economical and practical in terms of investment costs.

In addition, the linear vibrating screen driven by imported vibrating electric drives significantly improves the screening efficiency as well as reduces the chance of machine failure.

Moreover, the aggregate hoist works with a plate chain lifting, which increases the durability of the hoist, and makes the operation more stable.

The lifting plate of the drying drum is designed for optimal structure, enabling more efficiency and stability in the drying system.

The whole machine is designed for modularity, which should also enable easier handling and faster installation.

Finally, a computer/manual control system is fully automatic, with a fault self-diagnosis feedback program to maximize safety and ease of use.



Technical Parameters:


Item
Production capacity (t/h) 120 160
Capacity per pot (kg) 1800 2000
Total installed capacity (kw) 360 490
Sand and gravel material (four kinds of material accumulation) metering accuracy ± 0.5% ± 0.5%
Powder (two kinds of material accumulation) measuring accuracy ± 0.5% ± 0.5%
Asphalt metering accuracy ± 0.3% ± 0.3%
Temperature control accuracy (℃) ≤± 5 ≤± 5
Dust prevention efficiency (mg/Nm3) ≤100 ≤100
Doser length × width (m) 2.0 × 3.3 2.45 × 3.6
Hopper capacity (m3) 7 11.3
Aggregate belt machine width (mm) 500 650
Aggregate belt machine power (kw) 5.5 7.5
Drying cylinder diameter × length 1.8×6.54 2.2×8.0
Drying cylinder power (kw) 30 11×4
Vibrating screen length×width(m) 4.0×1.5 5×1.8
Vibrating screen power (kw) 5.5×2 11×2
Weighing hopper stone capacity (kg) 1500 2000
Weighing hopper powder capacity (kg 250 350
Weighing hopper asphalt capacity (kg) 200 300
Mixing pot capacity (kg) 1500 2000
Mixing pot power (kw) 37 75

Applications:

Stationary Asphalt Mixing Plant

The Stationary Asphalt Mixing Plant, produced by Beian from China, is a reliable and efficient piece of construction equipment. It has a noise level of ≤85dB(A) and a weighing accuracy of ±0.25%. The dust collection system is designed with a gravity dust collection, baghouse dust collection or water dust collection system. The control system can be operated manually, semi-automatically or fully automatically.



Support and Services:

We offer comprehensive technical support and service for our Stationary Asphalt Mixing Plant. Our experienced technicians provide 24/7 customer service to ensure our customers receive timely service and assistance. Our service package includes:

  • Installation & commissioning: our technicians help customers install and commission the equipment in accordance with the best engineering practices.
  • Operator training: we provide operator training to ensure that customers’ personnel can operate the equipment correctly and efficiently.
  • Maintenance & repair: our technicians provide regular maintenance and repair services, as well as on-site emergency repair services.
  • Spare parts supply: we provide a variety of spare parts to ensure the normal operation of the equipment.


FAQ:

Q1: What is the Brand Name of the Stationary Asphalt Mixing Plant?

A1: The Brand Name of the Stationary Asphalt Mixing Plant is Beian.

Q2: Where is the Stationary Asphalt Mixing Plant made?

A2: The Stationary Asphalt Mixing Plant is made in China.

Q3: What features does the Stationary Asphalt Mixing Plant have?

A3: The Stationary Asphalt Mixing Plant is equipped with a reliable and powerful burner, high-efficiency heat-exchanger, advanced hot-aggregate elevator, horizontal vibrating screen, accurate weighing system and other components, which ensures excellent performance and easy operation.

Q4: What are the advantages of the Stationary Asphalt Mixing Plant?

A4: The Stationary Asphalt Mixing Plant is energy efficient and has low emissions, which makes it an environmentally friendly choice. It is also highly reliable and has a long service life.

Q5: What kind of after-sales service does Beian provide for the Stationary Asphalt Mixing Plant?

A5: Beian provides comprehensive after-sales service, including installation guidance, operation and maintenance training, spare parts supply, technical support and so on.
