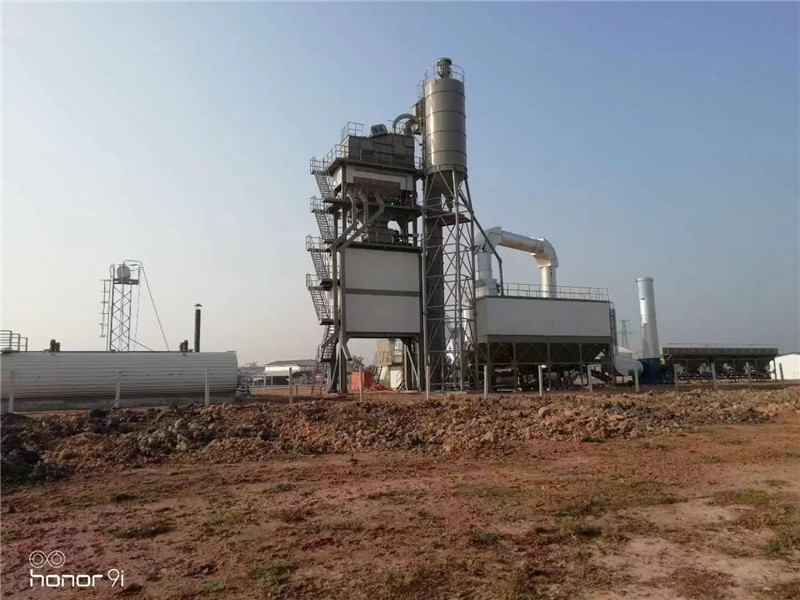

Asphalt mixing plant, also known as asphalt concrete mixing plant. It Refers to the complete set of equipment for mass production of asphalt concrete. According to the mixing method, it can be divided into forced batch type and continuous production type; according to the handling method, it can be divided into fixed type, semi-fixed type and mobile type.
Our agitator is made of high-strength and wear-resistant materials, and has a longer lifespan. The first-stage cyclone dust removal system, the second-stage water-type dust collector system and the negative pressure dust-proof design of the builing allow us to keep the costs down yet ensure holistic and effective protection at the same time. The linear vibrating screen driven by imported vibrating electric drives improve the screening efficiency and reduce the failure rate of the equipment.
The aggregate hoist is made with a plate chain hoisting, which increases the service life of the hoist and improves its operational stability. The lifting plate of the drying drum has been optimised, so the drying system is now more efficient and stable. Also, our whole machine adopts modular design, and can be handled and installed faster and more conveniently.
To top it off, we have a fully automatic computer/manual control system. All potential faults are able to be identified and been given feedback program, giving the user a simple and safe system.
| Item | ||
| Production capacity (t/h) | 120 | 160 |
| Capacity per pot (kg) | 1800 | 2000 |
| Total installed capacity (kw) | 360 | 490 |
| Sand and gravel material (four kinds of material accumulation) metering accuracy | ± 0.5% | ± 0.5% |
| Powder (two kinds of material accumulation) measuring accuracy | ± 0.5% | ± 0.5% |
| Asphalt metering accuracy | ± 0.3% | ± 0.3% |
| Temperature control accuracy (℃) | ≤± 5 | ≤± 5 |
| Dust prevention efficiency (mg/Nm3) | ≤100 | ≤100 |
| Doser length × width (m) | 2.0 × 3.3 | 2.45 × 3.6 |
| Hopper capacity (m3) | 7 | 11.3 |
| Aggregate belt machine width (mm) | 500 | 650 |
| Aggregate belt machine power (kw) | 5.5 | 7.5 |
| Drying cylinder diameter × length | 1.8×6.54 | 2.2×8.0 |
| Drying cylinder power (kw) | 30 | 11×4 |
| Vibrating screen length×width(m) | 4.0×1.5 | 5×1.8 |
| Vibrating screen power (kw) | 5.5×2 | 11×2 |
| Weighing hopper stone capacity (kg) | 1500 | 2000 |
| Weighing hopper powder capacity (kg | 250 | 350 |
| Weighing hopper asphalt capacity (kg) | 200 | 300 |
| Mixing pot capacity (kg) | 1500 | 2000 |
| Mixing pot power (kw) | 37 |
75 |
Asphalt mixing plant, also known as asphalt concrete mixing plant, refers to a complete set of equipment for mass production of asphalt concrete. It can produce asphalt mixture, modified asphalt mixture, and colored asphalt mixture. It is an important equipment for municipal roads, airports and ports.
Stationary Asphalt Mixing Plant provides a comprehensive technical support and service. Technical support includes:
