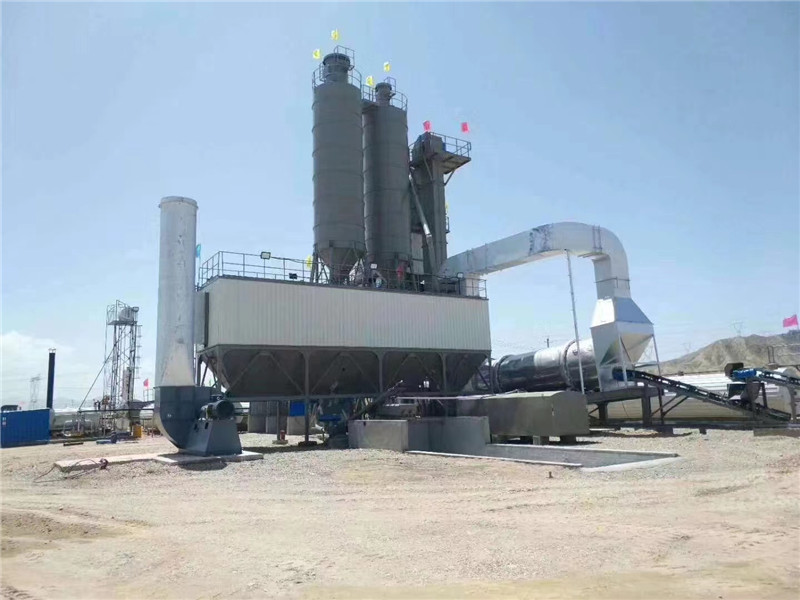

Stationary Asphalt Mixing Plant is a complete set of equipment for mass production of asphalt concrete, which is also called asphalt concrete mixing plant. It is necessary machine for the construction of highways, grade roads, municipal roads, airports and ports. Stationary Asphalt batching Plant is designed for large-scale road construction projects with high quality requirements and capacity demands. It adopts advanced technology of the world, optimized design, simple and compact structure, high reliability, low energy consumption, easy operation and maintenance. It can be operated by manual, semi-automatic or fully automatic control system.
The total power of the Stationary Asphalt Mixing Plant is ≤450kW, and the hot aggregate bin is 10-30m³. According to customer's requirements, the fuel type can be Diesel, Heavy Oil, Natural Gas, Coal or Pulverized Coal. It is equipped with advanced dust collection system, including gravity dust collection, baghouse dust collection and water dust collection.
Our company provides equipment with competitive advantages that customers can take advantage of. The agitator material is made of high-strength and wear-resistant materials, increasing the service life. Economically and practically, the first-stage cyclone dust removal system, the second-stage water-type dust collector system and the negative pressure dust-proof design of the building are adopted, which can reduce customer's investment costs. Furthermore, the linear vibrating screen driven by imported vibrating electric drives, can improve the screening efficiency and reduce the equipment failure rate. The aggregate hoist adopts plate chain hoisting, increasing the hoist' service life and improving the operation stability. In addition, the optimized structure of lifting plate of the drying drum makes the drying system more efficient and stable. The whole machine adopts modular design, making it faster and more convenient when handling and installation. Additionally, with the fully automatic computer/manual control system and fault self-diagnosis feedback program, the operation will become simple and safe.
| Item | ||
| Production capacity (t/h) | 120 | 160 |
| Capacity per pot (kg) | 1800 | 2000 |
| Total installed capacity (kw) | 360 | 490 |
| Sand and gravel material (four kinds of material accumulation) metering accuracy | ± 0.5% | ± 0.5% |
| Powder (two kinds of material accumulation) measuring accuracy | ± 0.5% | ± 0.5% |
| Asphalt metering accuracy | ± 0.3% | ± 0.3% |
| Temperature control accuracy (℃) | ≤± 5 | ≤± 5 |
| Dust prevention efficiency (mg/Nm3) | ≤100 | ≤100 |
| Doser length × width (m) | 2.0 × 3.3 | 2.45 × 3.6 |
| Hopper capacity (m3) | 7 | 11.3 |
| Aggregate belt machine width (mm) | 500 | 650 |
| Aggregate belt machine power (kw) | 5.5 | 7.5 |
| Drying cylinder diameter × length | 1.8×6.54 | 2.2×8.0 |
| Drying cylinder power (kw) | 30 | 11×4 |
| Vibrating screen length×width(m) | 4.0×1.5 | 5×1.8 |
| Vibrating screen power (kw) | 5.5×2 | 11×2 |
| Weighing hopper stone capacity (kg) | 1500 | 2000 |
| Weighing hopper powder capacity (kg | 250 | 350 |
| Weighing hopper asphalt capacity (kg) | 200 | 300 |
| Mixing pot capacity (kg) | 1500 | 2000 |
| Mixing pot power (kw) | 37 | 75 |
The technical support and service for Stationary Asphalt Mixing Plant includes:
