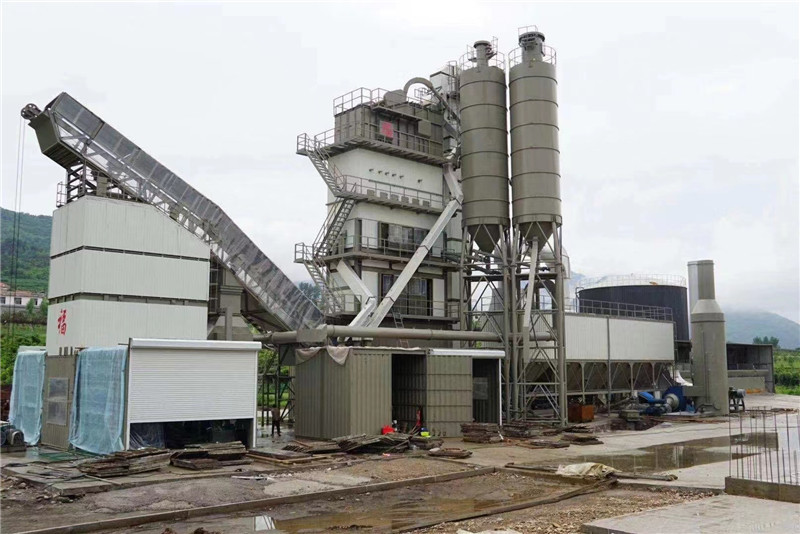

Asphalt Mixing Plant is a type of asphalt batching plant, specially designed for efficient mixing of asphalt within a short time of 30 to 45 seconds. It has a large production capacity, with high power and efficiency. This asphalt batching plant is powered by a variety of fuel types, including diesel, natural gas, coal and heavy oil. The plant is designed with advanced mixing technology for improved performance and greater mixing efficiency. Asphalt Mixing Plant is perfect for asphalt production and repair work, providing excellent quality asphalt with reliable performance. The plant is easy to use and cost-effective, making it an ideal choice for asphalt processing.
The agitator used in this machine is made from strong and wear-resistant materials, which increases the lifespan.
It is an economical and sensible choice to use a first-stage cyclone dust removal system, a second-stage water-type dust collector system, and a negative pressure dust-proof design of the building, decreasing the cost for customers.
The vibrating electric drives used in the linear vibrating screen increases the screening efficiency and reduces the occurrence of malfunctions.
The aggregate hoist is equipped with a plate chain hoisting, which extends the lifespan of the hoist and improves the balance of operation.
The innovative design of the lifting plate of the drying drum elevates the effectiveness and constancy of the drying system.
The machine is modular in design, which allows for faster and easier handling and installation.
The system is available with both manual or automatic control. A fault self-diagnosis feedback program has been built in to make the operation simpler and secure.
| Item | ||
| Production capacity (t/h) | 120 | 160 |
| Capacity per pot (kg) | 1800 | 2000 |
| Total installed capacity (kw) | 360 | 490 |
| Sand and gravel material (four kinds of material accumulation) metering accuracy | ± 0.5% | ± 0.5% |
| Powder (two kinds of material accumulation) measuring accuracy | ± 0.5% | ± 0.5% |
| Asphalt metering accuracy | ± 0.3% | ± 0.3% |
| Temperature control accuracy (℃) | ≤± 5 | ≤± 5 |
| Dust prevention efficiency (mg/Nm3) | ≤100 | ≤100 |
| Doser length × width (m) | 2.0 × 3.3 | 2.45 × 3.6 |
| Hopper capacity (m3) | 7 | 11.3 |
| Aggregate belt machine width (mm) | 500 | 650 |
| Aggregate belt machine power (kw) | 5.5 | 7.5 |
| Drying cylinder diameter × length | 1.8×6.54 | 2.2×8.0 |
| Drying cylinder power (kw) | 30 | 11×4 |
| Vibrating screen length×width(m) | 4.0×1.5 | 5×1.8 |
| Vibrating screen power (kw) | 5.5×2 | 11×2 |
| Weighing hopper stone capacity (kg) | 1500 | 2000 |
| Weighing hopper powder capacity (kg | 250 | 350 |
| Weighing hopper asphalt capacity (kg) | 200 | 300 |
| Mixing pot capacity (kg) | 1500 | 2000 |
| Mixing pot power (kw) | 37 | 75 |
Beian asphalt mixing plant is a perfect choice for various construction projects with its advanced technology, environmental protection, reliable performance and comprehensive service. It is widely used in road construction and maintenance. This asphalt mixing plant can provide aggregate sizes of 0-60mm and has a twin-shaft mixer with a mixing time of 30s-45s. It features environmental protection and high-efficiency with its aggregate moisture of ≤3%. With its reliable brand name and its place of origin in China, Beian asphalt mixing plant is definitely your best choice for the most efficient bitumen mixing plant and continuous asphalt mixing plant.
We provide technical support and service for Asphalt Mixing Plant. Our team of experts are on hand to help you with any queries you may have. Whether you need help with installation, maintenance, troubleshooting, or warranties, we are here to help. Our team is experienced in all aspects of asphalt mixing plant operation and can provide advice on best practices, optimal operating conditions, and more.
We are available 24/7 by phone, email, or chat. Our team is dedicated to providing you with the best possible service and support. We are committed to helping you get the most out of your Asphalt Mixing Plant and ensuring its smooth and efficient operation.
A1: An Asphalt Mixing Plant is a machine designed to produce hot-mixed asphalt (HMA). It is a process consisting of a combination of aggregate and asphalt, heated and then mixed at a temperature of about 150–200°C.
A2: We offer Beian Asphalt Mixing Plant, which is made in China.
A3: The components of an Asphalt Mixing Plant include an aggregate storage and conveying system, an asphalt storage and conveying system, a hot aggregate weighing and mixing system, a dryer drum, a burner, a bag filter, a control system, and an asphalt storage tank.
A4: An Asphalt Mixing Plant provides a consistent mixture of asphalt for all types of construction projects, which can significantly reduce construction costs and improve work efficiency.
A5: An Asphalt Mixing Plant works by combining aggregate and asphalt in a heated chamber, then mixing them to form a homogenous mixture. The mixture is then cooled and ready for use.
