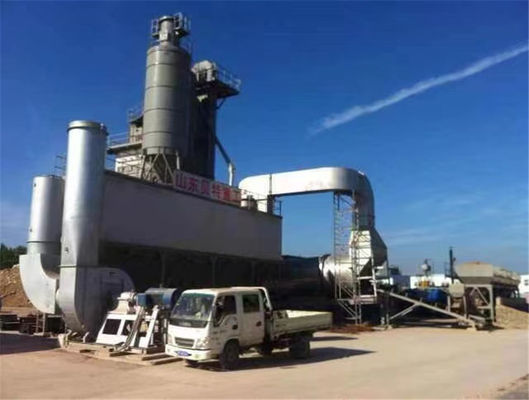

Asphalt mixing plant, also known as asphalt concrete mixing plant. It Refers to the complete set of equipment for mass production of asphalt concrete. According to the mixing method, it can be divided into forced batch type and continuous production type; according to the handling method, it can be divided into fixed type, semi-fixed type and mobile type.
We possess a comprehensive competitive advantage. The agitator we use is made of high-strength and wear-resistant materials, which increases its service life. We also adopt the first-stage cyclone dust removal system, as well as the second-stage water-type dust collector system and the negative pressure dust-proof design of the building for economic and practical purposes, while also reducing customers' investment costs. Moreover, the linear vibrating screen driven by imported vibrating electric drives enhances the screening efficiency and decreases the malfunction rate of the machine. We also utilize plate chain hoisting for the aggregate hoist, which increases the lifespan of the hoist and improves the stability of operation. The optimization of the lifting plate of the drying drum enhances the efficiency and stability of the drying system. In addition, the whole machine is structured in a modularized manner, which makes it faster and more convenient when it comes to handling and installation. Finally, the fully automatic computer/manual control system, with its integrated fault self-diagnosis feedback program, simplifies the operation and ensures its safety.
| Item | ||
| Production capacity (t/h) | 120 | 160 |
| Capacity per pot (kg) | 1800 | 2000 |
| Total installed capacity (kw) | 360 | 490 |
| Sand and gravel material (four kinds of material accumulation) metering accuracy | ± 0.5% | ± 0.5% |
| Powder (two kinds of material accumulation) measuring accuracy | ± 0.5% | ± 0.5% |
| Asphalt metering accuracy | ± 0.3% | ± 0.3% |
| Temperature control accuracy (℃) | ≤± 5 | ≤± 5 |
| Dust prevention efficiency (mg/Nm3) | ≤100 | ≤100 |
| Doser length × width (m) | 2.0 × 3.3 | 2.45 × 3.6 |
| Hopper capacity (m3) | 7 | 11.3 |
| Aggregate belt machine width (mm) | 500 | 650 |
| Aggregate belt machine power (kw) | 5.5 | 7.5 |
| Drying cylinder diameter × length | 1.8×6.54 | 2.2×8.0 |
| Drying cylinder power (kw) | 30 | 11×4 |
| Vibrating screen length×width(m) | 4.0×1.5 | 5×1.8 |
| Vibrating screen power (kw) | 5.5×2 | 11×2 |
| Weighing hopper stone capacity (kg) | 1500 | 2000 |
| Weighing hopper powder capacity (kg | 250 | 350 |
| Weighing hopper asphalt capacity (kg) | 200 | 300 |
| Mixing pot capacity (kg) | 1500 | 2000 |
| Mixing pot power (kw) | 37 | 75 |
Beian's stationary asphalt mixing plant is a reliable and durable plant solution for producing high quality asphalt concrete for roads, highways, airports, dams and other infrastructure projects. It can be used for the production of asphalt concrete, which is a composite material made up of a mineral filler, such as sand, and a bitumen binder, typically a petroleum-based product. It is used for paving roads, parking lots, and other such places.
Beian's stationary asphalt mixing plant is suitable for a wide range of infrastructure projects and provides reliable performance. It is easy to operate and maintain, and it produces high quality asphalt concrete that is durable and long-lasting.
