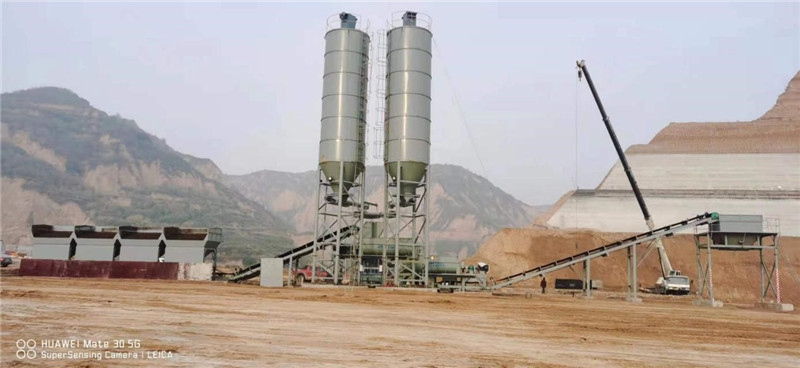

The Stabilized Soil Mixing Station is a complete set of equipment for mixing stabilized soil, which includes a cement silo, an aggregate batcher, a cement weighing range, a water weighing range, and a control system. It is ideal for large-scale construction projects and can produce up to 300-800 tons of stabilized soil per hour. The aggregate batcher, with a capacity of 3-6m³, is designed for accurate material measurement, while the cement weighing range offers a range of 0-500kg. The water weighing range can be set to 0-200kg and is controlled by a PLC system. All components are engineered for maximum efficiency and durability. The Stabilized Soil Mixing Station is the perfect choice for all your stabilized soil mixing needs.
WDJ300.400.500.600.700.800 type stabilized soil mixing plant main performance parameters:
| Parameter Model | WDJ300 | WDJ400 | WDJ500 | WDJ600 | WDJ700 | WDJ800 |
| Productivity | 300t/h | 400t/h | 500t/h | 600t/h | 700t/h | 800t/h |
| Measuring method | Computerized | Computerized | Computerized | Computerized | Computerized | Computerized |
| Adjustment method | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control |
| Control mode | automatic | automatic | automatic | automatic | automatic | automatic |
| Weighing accuracy (aggregate) | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Weighing accuracy (powder) | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Main motor power | 37KW | 45KW | 60KW | 75KW | 90KW | 110KW |
| Total Weight | 24t | 24t | 27t | 27t | 30t | 30t |
| Total power | 115KW | 125KW | 140KW | 155KW | 180KW | 200KW |
WDJ800 type D computer measured and frequency speed controlled stabilized soil mixing plant configuration table
| No. | Part Name | Specification Model | Quantity | Place of Origin | Remarks | ||
| 1 | Complete machine |
6,Assembly form: detachable type 7, Area:52m*15m 8 Configuration:Four hoppers and two bins Secondary mixing superposition type |
|
||||
| 2 |
Aggregate batching system
|
Aggregate hopper | 14m³ iron plate using 5mm | 4 | Beian,Shandong |
Combination type: Single bin composition Hopper width: 3300mm Aggregate hopper with baffle |
|
| Vibrator | 1.1KW | 4 | Henan Xinxiang | ||||
| Grid screen |
Grid-reinforced screen
|
4 | Beian,Shandong | ||||
| Belt scale | Weighing accuracy ±0.5-1% | 4 | Beian,Shandong | ||||
| Belt scale drum | 4KW | 4 |
Zibo Shandong |
||||
| Pressure sensor | 150Kg | 4 | Bengbu Anhui | ||||
| Belt scale carrier rollers | φ89×1080 | 1set | Beian,Shandong | ||||
| Belt scale carrier roller | φ89×1040 | 1set | Beian,Shandong | ||||
| Pressure belt pulley | 1 | Beian ,Shandong | |||||
| Dosing belt machine Frame | channel steel [18 | 1 | Beian ,Shandong | ||||
| Motorized pulley | 50120－22KW6－2.5 | 1 | Beian ,Shandong | ||||
| Ring flat belt | 1200×5－47.5m nylon belt | 1 | Hebei | ||||
| Belt machine carrier rollers | φ89×455 | 1set | Beian ,Shandong | ||||
| Belt machine carrier rollers | φ89×1350 | 1set | Beian ,Shandong | ||||
| Vertical roll | 1set | Beian ,Shandong | |||||
| 3 | Powder supply system | Feeding system Powder bin | 80-100 | 2 | Beian ,Shandong | ||
| Dust removal | None | 0 | optional | ||||
| Gate valve | 800×800 | 2 | Beian ,Shandong | ||||
| Gate valve hand wheel | 320 | 4 | Beian ,Shandong | ||||
| Screw conveyor | φ325×2700mm | 2 | Beian ,Shandong | ||||
| Spiral motor | 7.5KW | 2 | Beian ,Shandong | ||||
| Steel wire rope | φ6－10m | 2 | Beian ,Shandong | ||||
| Cloth bag | φ325 | 4 | Beian ,Shandong | ||||
| Spiral electronic scale | Φ325×1400mm | 2 | Beian ,Shandong | ||||
| Electronic weighing motor | 4KW | 2 | Beian ,Shandong | ||||
| Current tension sensor | 500Kg | 2 |
Bengbu, Anhui |
||||
| 4 | Operation room | Control room | 1 |
Bengbu, Anhui |
Control mode: Computer control
|
||
| Air conditioner | 1.2HP (cooling and heating type) | 1 | |||||
| 5 | water supply system | submersible pump | 3KW | 1 | Zibo , Shandong | water control mode: frequency speed regulation | |
| Water pump flow | 40m³/h | 1 | Beian , Shandong | ||||
| 6 | Mixing device | Mixer | 2 | Beian , Shandong |
machine type: Double horizontal shaft strong continuous type, double motor |
||
| Double motor | 55KW×2 | 4 | Kaiyuan | ||||
| Blade | High manganese alloy wear-resistant material | 68*2 | Weifang, Shandong | ||||
| Speed reducer | ZLY200 | 4 | Zibo, Shandong | ||||
| 7 | Storage device | Inclined belt machine |
Installation inclination Q=18° Frame channel :steel [18 |
1 | Beian ,Shandong |
Hopper door drive Method: Pneumatic
storage bin Unloading hight:3700m |
|
| electric drive drum | 50120－22KW6－2.5 | 1 | Zibo, Shandong | ||||
| Annular flat belt | 1200×5－39.3m nylon belt | 1 | Hebei | ||||
| Belt machine carrier rollers | φ89×455 | 1set | Beian ,Shandong | ||||
| Belt machine carrier rollers | φ89×1350 | 1set | Beian ,Shandong | ||||
| Vertical roll | 1set | Beian ,Shandong | |||||
| Final storage bin | 10m³ (stacked) iron plate using 5mm | 1 | Beian ,Shandong | ||||
| Vibrator | 1.1KW | 1 | Xinxiang, Henan | ||||
| Electric bell | 1 | Beian ,Shandong | |||||
| 8 | Air circuit system | Solenoid valve | 4V310 | 2 | Zhejiang | ||
| Motor | Y132S1－2－5.5KWB3 | 1 | Beian ,Shandong | ||||
| Air compressor | 0.67/7－5.5KW | 1 | |||||
| Air cylinder | 100×250 | 4 | |||||
| 9 | Electrical control system | Electrical components | 1 | Chint Dexie |
Electrical components can be optional; Adopt 485 communication connection |
||
| Control system | 1 | Beian , Shandong | |||||
| Computer host | 1 | Lenovo | |||||
| Monitor | 1 | Lenovo | |||||
| Inverter | 3.7kw | 4 | Hai Li Pu | ||||
| Inverter | 7.5kw | 2 | Hai Li Pu | ||||
| 10 | Attachments | Special tools | 1 | Beian ,Shandong | |||
| user guide | 1 | Beian ,Shandong | |||||
| Certificate of Conformity | 1 | Beian ,Shandong | |||||
Note: 1 Due to technical improvement,the origin of purchased parts and the model of technical parameters may be changed, but the functions are not worse than the existing ones;
2 The buyer needs to prepare the following facilities: the concrete foundation of the mixing station, the power supply to the power distribution cabinet of the mixing station and the water storage source of the mixing station; the mechanical oil required for the equipment, and the necessary lightning protection system in the mixing station.
The Stabilized Soil Mixing Station is an ideal choice for large-scale construction projects, such as road, bridge, dam, airport and other infrastructure projects. It provides high-efficiency and reliable mixing performance. The Stabilized Soil Mixing station with cement silo is an excellent choice for large-scale construction projects. It is easy to install and operate, ensuring a consistent and reliable mixing performance.
