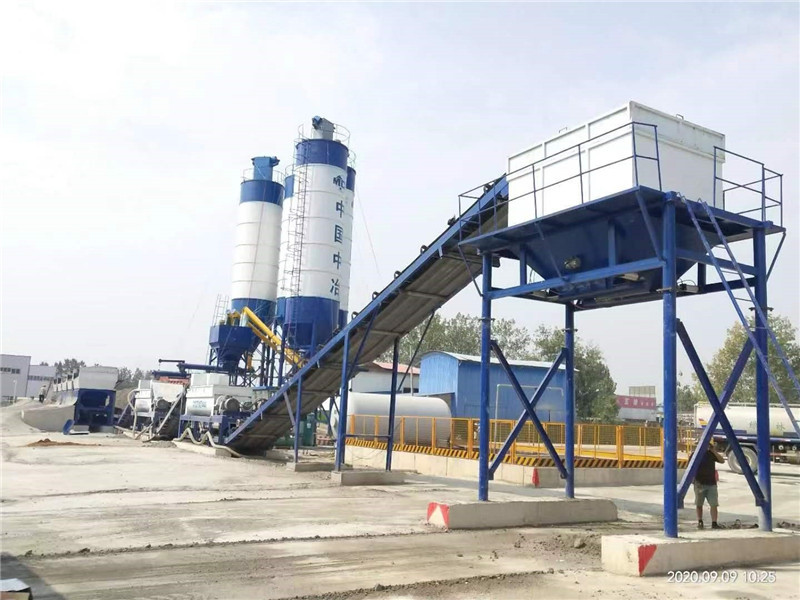

WDJ series stabilized soil mixing plant is a complete set of special equipment for continuous mixing of road base material, which is developed by our company on the basis of absorbing the advantages of continuous stabilized soil mixing plant at home and abroad.
Our WBZ series stabilized soil mixing plant and graded gravel mixing plant with favorable price is a special mixing equipment developed and produced by our company to meet the construction needs of grass-roots materials for high-grade highways, urban roads, airports, docks, sports fields and other facilities by adopting the first technology at home and abroad. It can use lime, slaked lime (water content in 10-15%), soil, sand and gravel, fly ash, cement and other raw materials to produce cement stabilized sand and gravel, grey soil stabilized base material, compressible concrete and other grass-roots materials. The base materials produced by it are accurately proportioned, evenly mixed and meet the construction requirements.
WDJ300.400.500.600.700.800 type stabilized soil mixing plant main performance parameters:
| Parameter Model | WDJ300 | WDJ400 | WDJ500 | WDJ600 | WDJ700 | WDJ800 |
| Productivity | 300t/h | 400t/h | 500t/h | 600t/h | 700t/h | 800t/h |
| Measuring method | Computerized | Computerized | Computerized | Computerized | Computerized | Computerized |
| Adjustment method | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control |
| Control mode | automatic | automatic | automatic | automatic | automatic | automatic |
| Weighing accuracy (aggregate) | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Weighing accuracy (powder) | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Main motor power | 37KW | 45KW | 60KW | 75KW | 90KW | 110KW |
| Total Weight | 24t | 24t | 27t | 27t | 30t | 30t |
| Total power | 115KW | 125KW | 140KW | 155KW | 180KW | 200KW |
WDJ800 type D computer measured and frequency speed controlled stabilized soil mixing plant configuration table
| No. | Part Name | Specification Model | Quantity | Place of Origin | Remarks | ||
| 1 | Complete machine |
6,Assembly form: detachable type 7, Area:55m*15m 8, Configuration:Four hoppers and two bins (secondary mixing intermediate belt type) |
Aggregate hopper, finished bin iron plate adopts 5mm,;flat belt machine, inclined belt machine channel steel adopts 18;aggregate hopper, mixer legs adopts 20 I-beam,. Flat belt and inclined belt adopt nylon belt.
|
||||
| 2 |
Aggregate batching system
|
Aggregate hopper | 14m³ iron plate using 5mm | 4 | Beian,Shandong |
Combination type: Single bin composition Hopper width: 3300mm Aggregate hopper with baffle |
|
| Vibrator | 1.1KW | 4 | Henan Xinxiang | ||||
| Grid screen |
Grid-reinforced screen
|
4 | Beian,Shandong | ||||
| Belt scale | Weighing accuracy ±0.5-1% | 4 | Beian,Shandong | ||||
| Belt scale drum | 4KW | 4 |
Zibo Shandong |
||||
| Pressure sensor | 150Kg | 4 | Bengbu Anhui | ||||
| Belt scale carrier rollers | φ89×1080 | 1套 | Beian,Shandong | ||||
| Belt scale carrier roller | φ89×1040 | 1套 | Beian,Shandong | ||||
| Pressure belt pulley | 1 | Beian ,Shandong | |||||
| Dosing belt machine Frame | channel steel [18 | 1 | Beian ,Shandong | ||||
| Motorized pulley | 50120－22KW－2.5 | 1 | Beian ,Shandong | ||||
| Ring flat belt | 1200×5－39.3m nylon belt | 1 | Hebei | ||||
| Belt machine carrier rollers | φ89×455 | 1set | Beian ,Shandong | ||||
| Belt machine carrier rollers | φ89×1350 | 1set | Beian ,Shandong | ||||
| Vertical roll | 1set | Beian ,Shandong | |||||
| 3 | Powder supply system | Feeding system Powder bin | 80-100 | 2 | Beian ,Shandong | ||
| Dust removal | None | 0 | optional | ||||
| Gate valve | 800×800 | 2 | Beian ,Shandong | ||||
| Gate valve hand wheel | 320 | 4 | Beian ,Shandong | ||||
| Screw conveyor | φ325×2700mm | 2 | Beian ,Shandong | ||||
| Spiral motor | 7.5KW | 2 | Beian ,Shandong | ||||
| Steel wire rope | φ6－10米 | 2 | Beian ,Shandong | ||||
| Cloth bag | φ325 | 4 | Beian ,Shandong | ||||
| Spiral electronic scale | Φ325×1400mm | 2 | Beian ,Shandong | ||||
| Electronic weighing motor | 4KW | 2 | Beian ,Shandong | ||||
| Current tension sensor | 500Kg | 2 |
Bengbu, Anhui |
||||
| 4 | Operation room | Control room | 1 |
Bengbu, Anhui |
Control mode: Computer control
|
||
| Air conditioner | 1.2HP (cooling and heating type) | 1 | |||||
| 5 | water supply system | submersible pump | 3KW | 1 | Zibo , Shandong | water control mode: frequency speed regulation | |
| Water pump flow | 40m³/h | 1 | Beian , Shandong | ||||
| 6 | Mixing device | Mixer | 2 | Beian , Shandong |
machine type: Double horizontal shaft strong continuous type, double motor |
||
| Double motor | 55KW×2 | 4 | Kaiyuan | ||||
| Blade | 高锰合金耐磨材质 | 68*2 | Weifang, Shandong | ||||
| Speed reducer | ZLY200 | 4 | Zibo, Shandong | ||||
| 7 | Storage device | Inclined belt machine |
Installation inclination Q=18° Frame channel :steel [18 |
1 | Beian ,Shandong |
Hopper door drive Method: Pneumatic
storage bin Unloading hight:3700m |
|
| electric drive drum | 50120－30KW－2.5 | 1 | Zibo, Shandong | ||||
| Annular flat belt | 1200×5－39.3m nylon belt | 1 | Hebei | ||||
| Belt machine carrier rollers | φ89×455 | 1套 | Beian ,Shandong | ||||
| Belt machine carrier rollers | φ89×1350 | 1套 | Beian ,Shandong | ||||
| Vertical roll | 1套 | Beian ,Shandong | |||||
| Final storage bin | 10m³ (stacked) iron plate using 5mm | 1 | Beian ,Shandong | ||||
| Vibrator | 1.1KW | 1 | Xinxiang, Henan | ||||
| Electric bell | 1 | Beian ,Shandong | |||||
| 8 | Air circuit system | Solenoid valve | 4V310 | 2 | Zhejiang | ||
| Motor | Y132S1－2－5.5KWB3 | 1 | Beian ,Shandong | ||||
| Air compressor | 0.67/7－5.5KW | 1 | |||||
| Air cylinder | 100×250 | 4 | |||||
| 9 | Electrical control system | Electrical components | 1 | Chint Dexie |
Electrical components can be optional; Adopt 485 communication connection |
||
| Control system | 1 | Beian , Shandong | |||||
| Computer host | 1 | Lenovo | |||||
| Monitor | 1 | Lenovo | |||||
| Inverter | 3.7kw | 4 | Hai Li Pu | ||||
| Inverter | 7.5kw | 2 | Hai Li Pu | ||||
| 10 |
Intermediate belt
|
Belt carrier rollers | φ89×455 | 1set | Beian ,Shandong | ||
| Belt carrier rollers | φ89×1350 | 1set | Beian ,Shandong | ||||
| Belt | 1200×5－19.4m nylon belt | 1 | Beian ,Shandong | ||||
| Electric drive drum | 50120－22KW6－2.5 | 1 | Beian ,Shandong | ||||
| 11 | Attachments | Special tools | 1 | Beian ,Shandong | |||
| user guide | 1 | Beian ,Shandong | |||||
| Certificate of Conformity | 1 | Beian ,Shandong | |||||
Note: 1 Due to technical improvement,the origin of purchased parts and the model of technical parameters may be changed, but the functions are not worse than the existing ones;
2 The buyer needs to prepare the following facilities: the concrete foundation of the mixing station, the power supply to the power distribution cabinet of the mixing station and the water storage source of the mixing station; the mechanical oil required for the equipment, and the necessary lightning protection system in the mixing station.
The Stabilized Soil Mixing Station is a reliable mixing equipment for road construction. It is designed to mix various types of soil and other materials to form a homogeneous mixture with a precise composition. The station is equipped with advanced control systems and automatic weighing systems to ensure accurate and efficient mixing. It also has a large capacity and can handle a wide range of materials, making it suitable for large-scale road construction projects.
The Stabilized Soil Mixing Station is a versatile and reliable mixing equipment for road construction projects. It is designed to mix various types of soil and other materials to form a homogeneous mixture with a precise composition. The station has a capacity of 50-400t/h, a range of additive weighing range from 0-50kg, and a cement weighing range from 0-500kg. The maximum aggregate size is 60mm, making it suitable for most road construction projects. With advanced control systems and automatic weighing systems, this station ensures accurate and efficient mixing.
