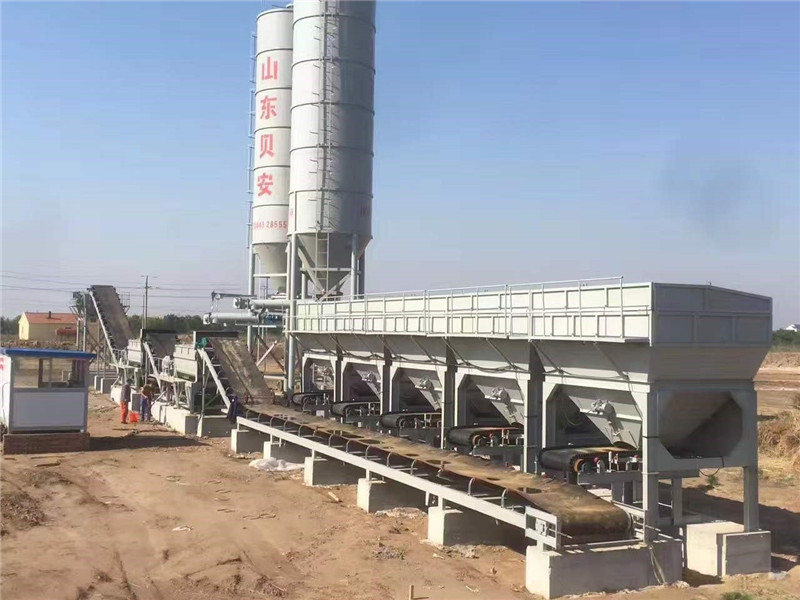

The Stabilized Soil Mixing Station is an advanced and reliable road construction equipment designed for producing stabilized soil with different proportions of cement, sand, gravel, and other additives. This mixing station is equipped with a twin-shaft forced mixer that can mix the material components at a high speed and deliver a homogeneous mixture of stabilized soil in a short cycle time. It is also equipped with an aggregate batcher to accommodate 3-6 cubic meters of material, as well as a cement weighing range of 0-500kg, and an additive weighing range of 0-50kg. The mixing process takes only 60 seconds to complete, making it a highly efficient and cost-effective solution for stabilized soil mixing.
WDJ300.400.500.600.700.800 type stabilized soil mixing plant main performance parameters:
| Parameter Model | WDJ300 | WDJ400 | WDJ500 | WDJ600 | WDJ700 | WDJ800 |
| Productivity | 300t/h | 400t/h | 500t/h | 600t/h | 700t/h | 800t/h |
| Measuring method | Computerized | Computerized | Computerized | Computerized | Computerized | Computerized |
| Adjustment method | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control |
| Control mode | automatic | automatic | automatic | automatic | automatic | automatic |
| Weighing accuracy (aggregate) | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Weighing accuracy (powder) | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Main motor power | 37KW | 45KW | 60KW | 75KW | 90KW | 110KW |
| Total Weight | 24t | 24t | 27t | 27t | 30t | 30t |
| Total power | 115KW | 125KW | 140KW | 155KW | 180KW | 200KW |
WDJ800 type D computer measured and frequency speed controlled stabilized soil mixing plant configuration table
| No. | Part Name | Specification Model | Quantity | Place of Origin | Remarks | ||
| 1 | Complete machine |
6,Assembly form: detachable type 7, Area:55m*15m 8, Configuration:Four hoppers and two bins (secondary mixing intermediate belt type) |
Aggregate hopper, finished bin iron plate adopts 5mm,;flat belt machine, inclined belt machine channel steel adopts 18;aggregate hopper, mixer legs adopts 20 I-beam,. Flat belt and inclined belt adopt nylon belt.
|
||||
| 2 |
Aggregate batching system
|
Aggregate hopper | 14m³ iron plate using 5mm | 4 | Beian,Shandong |
Combination type: Single bin composition Hopper width: 3300mm Aggregate hopper with baffle |
|
| Vibrator | 1.1KW | 4 | Henan Xinxiang | ||||
| Grid screen |
Grid-reinforced screen
|
4 | Beian,Shandong | ||||
| Belt scale | Weighing accuracy ±0.5-1% | 4 | Beian,Shandong | ||||
| Belt scale drum | 4KW | 4 |
Zibo Shandong |
||||
| Pressure sensor | 150Kg | 4 | Bengbu Anhui | ||||
| Belt scale carrier rollers | φ89×1080 | 1套 | Beian,Shandong | ||||
| Belt scale carrier roller | φ89×1040 | 1套 | Beian,Shandong | ||||
| Pressure belt pulley | 1 | Beian ,Shandong | |||||
| Dosing belt machine Frame | channel steel [18 | 1 | Beian ,Shandong | ||||
| Motorized pulley | 50120－22KW－2.5 | 1 | Beian ,Shandong | ||||
| Ring flat belt | 1200×5－39.3m nylon belt | 1 | Hebei | ||||
| Belt machine carrier rollers | φ89×455 | 1set | Beian ,Shandong | ||||
| Belt machine carrier rollers | φ89×1350 | 1set | Beian ,Shandong | ||||
| Vertical roll | 1set | Beian ,Shandong | |||||
| 3 | Powder supply system | Feeding system Powder bin | 80-100 | 2 | Beian ,Shandong | ||
| Dust removal | None | 0 | optional | ||||
| Gate valve | 800×800 | 2 | Beian ,Shandong | ||||
| Gate valve hand wheel | 320 | 4 | Beian ,Shandong | ||||
| Screw conveyor | φ325×2700mm | 2 | Beian ,Shandong | ||||
| Spiral motor | 7.5KW | 2 | Beian ,Shandong | ||||
| Steel wire rope | φ6－10米 | 2 | Beian ,Shandong | ||||
| Cloth bag | φ325 | 4 | Beian ,Shandong | ||||
| Spiral electronic scale | Φ325×1400mm | 2 | Beian ,Shandong | ||||
| Electronic weighing motor | 4KW | 2 | Beian ,Shandong | ||||
| Current tension sensor | 500Kg | 2 |
Bengbu, Anhui |
||||
| 4 | Operation room | Control room | 1 |
Bengbu, Anhui |
Control mode: Computer control
|
||
| Air conditioner | 1.2HP (cooling and heating type) | 1 | |||||
| 5 | water supply system | submersible pump | 3KW | 1 | Zibo , Shandong | water control mode: frequency speed regulation | |
| Water pump flow | 40m³/h | 1 | Beian , Shandong | ||||
| 6 | Mixing device | Mixer | 2 | Beian , Shandong |
machine type: Double horizontal shaft strong continuous type, double motor |
||
| Double motor | 55KW×2 | 4 | Kaiyuan | ||||
| Blade | 高锰合金耐磨材质 | 68*2 | Weifang, Shandong | ||||
| Speed reducer | ZLY200 | 4 | Zibo, Shandong | ||||
| 7 | Storage device | Inclined belt machine |
Installation inclination Q=18° Frame channel :steel [18 |
1 | Beian ,Shandong |
Hopper door drive Method: Pneumatic
storage bin Unloading hight:3700m |
|
| electric drive drum | 50120－30KW－2.5 | 1 | Zibo, Shandong | ||||
| Annular flat belt | 1200×5－39.3m nylon belt | 1 | Hebei | ||||
| Belt machine carrier rollers | φ89×455 | 1套 | Beian ,Shandong | ||||
| Belt machine carrier rollers | φ89×1350 | 1套 | Beian ,Shandong | ||||
| Vertical roll | 1套 | Beian ,Shandong | |||||
| Final storage bin | 10m³ (stacked) iron plate using 5mm | 1 | Beian ,Shandong | ||||
| Vibrator | 1.1KW | 1 | Xinxiang, Henan | ||||
| Electric bell | 1 | Beian ,Shandong | |||||
| 8 | Air circuit system | Solenoid valve | 4V310 | 2 | Zhejiang | ||
| Motor | Y132S1－2－5.5KWB3 | 1 | Beian ,Shandong | ||||
| Air compressor | 0.67/7－5.5KW | 1 | |||||
| Air cylinder | 100×250 | 4 | |||||
| 9 | Electrical control system | Electrical components | 1 | Chint Dexie |
Electrical components can be optional; Adopt 485 communication connection |
||
| Control system | 1 | Beian , Shandong | |||||
| Computer host | 1 | Lenovo | |||||
| Monitor | 1 | Lenovo | |||||
| Inverter | 3.7kw | 4 | Hai Li Pu | ||||
| Inverter | 7.5kw | 2 | Hai Li Pu | ||||
| 10 |
Intermediate belt
|
Belt carrier rollers | φ89×455 | 1set | Beian ,Shandong | ||
| Belt carrier rollers | φ89×1350 | 1set | Beian ,Shandong | ||||
| Belt | 1200×5－19.4m nylon belt | 1 | Beian ,Shandong | ||||
| Electric drive drum | 50120－22KW6－2.5 | 1 | Beian ,Shandong | ||||
| 11 | Attachments | Special tools | 1 | Beian ,Shandong | |||
| user guide | 1 | Beian ,Shandong | |||||
| Certificate of Conformity | 1 | Beian ,Shandong | |||||
Note: 1 Due to technical improvement,the origin of purchased parts and the model of technical parameters may be changed, but the functions are not worse than the existing ones;
2 The buyer needs to prepare the following facilities: the concrete foundation of the mixing station, the power supply to the power distribution cabinet of the mixing station and the water storage source of the mixing station; the mechanical oil required for the equipment, and the necessary lightning protection system in the mixing station.
Lime stabilized soil mixing station is a kind of equipment for road construction, which is widely used for building pavement and subgrade foundation. It is equipped with a PLC control system, high capacity, quick mixing cycle and large capacity aggregate batcher, which makes it a perfect solution for road construction projects. It can be used to mix lime stabilized soil, and produce stabilized soil with different properties. The capacity of this stabilized soil mixing station is between 50-400t/h, and the mixing cycle is only 60s. The aggregate batcher can hold up to 3-6m³. With the advanced PLC control system, it can precisely control the production of stabilized soil, and ensure the quality of the final product. In addition, the user-friendly design and operation make it easy and efficient to operate the stabilized soil mixing station.
The technical support and service for Stabilized Soil Mixing Station includes:
A1:Stabilized Soil Mixing Station is a kind of equipment for producing stabilised soil with cement, lime, fly ash, etc. It is mainly composed of mixing system, aggregate batching system, cement weighing system, water weighing system, additive weighing system, mixing conveying system and control system.
Q2:What are the advantages of Stabilized Soil Mixing Station?
A2:The advantages of Stabilized Soil Mixing Station include high efficiency, good stability, easy operation, low cost and high quality of the finished product.
Q3:What are the components of Stabilized Soil Mixing Station?
A3:The components of Stabilized Soil Mixing Station include mixing system, aggregate batching system, cement weighing system, water weighing system, additive weighing system, mixing conveying system and control system.
Q4:What materials can be made with Stabilized Soil Mixing Station?
A4:Stabilized Soil Mixing Station can be used to make stabilized soil with cement, lime, fly ash, etc.
Q5:What is the capacity of Stabilized Soil Mixing Station?
A5:The capacity of Stabilized Soil Mixing Station is up to 80-100m3/h.
