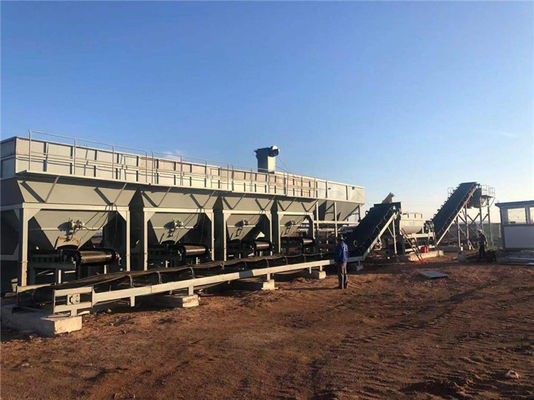

The Stabilized Soil Mixing Station is a high-performance equipment for producing stabilized soil used for road base construction. It is an ideal choice for producing high-quality stabilized soil through a combination of cement, lime, pulverized coal ash and other stabilizing agents. T
The Stabilized Soil Mixing Station with Cement Silo ensures a high-quality mixing process, making it ideal for large-scale projects. Moreover, the Lime Stabilized Soil Mixing Station enables efficient mixing of lime and other stabilizing agents in the soil. With its advanced stabilization technology, this mixing station can produce stabilized soil with superior performance.
WDJ300.400.500.600.700.800 type stabilized soil mixing plant main performance parameters:
| Parameter Model | WDJ300 | WDJ400 | WDJ500 | WDJ600 | WDJ700 | WDJ800 |
| Productivity | 300t/h | 400t/h | 500t/h | 600t/h | 700t/h | 800t/h |
| Measuring method | Computerized | Computerized | Computerized | Computerized | Computerized | Computerized |
| Adjustment method | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control |
| Control mode | automatic | automatic | automatic | automatic | automatic | automatic |
| Weighing accuracy (aggregate) | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Weighing accuracy (powder) | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Main motor power | 37KW | 45KW | 60KW | 75KW | 90KW | 110KW |
| Total Weight | 24t | 24t | 27t | 27t | 30t | 30t |
| Total power | 115KW | 125KW | 140KW | 155KW | 180KW | 200KW |
WDJ800 type D computer measured and frequency speed controlled stabilized soil mixing plant sub-configuration table
| No. | Part Name | Specification Model | Quantity | Place of Origin | Remarks | ||
| 1 | Complete machine |
6,Assembly form: detachable type 7, Area:46m*15m 8 Configuration:Four hoppers and two bins |
Aggregate hopper, finished bin iron plate adopts 5mm,;flat belt machine, inclined belt machine channel steel adopts 18;aggregate hopper, mixer legs adopts 20 I-beam,. Flat belt and inclined belt adopt nylon belt.
|
||||
| 2 |
|
Aggregate hopper | 14m³ iron plate using 5mm | 4 | Beian,Shandong |
Combination type: Single bin composition Hopper width: 3300mm Aggregate hopper with baffle |
|
| Vibrator | 1.1KW | 4 | Henan Xinxiang | ||||
| Grid screen |
Grid-reinforced screen
|
4 | Beian,Shandong | ||||
| Belt scale | Weighing accuracy ±0.5-1% | 4 | Beian,Shandong | ||||
| Belt scale drum | 4KW | 4 |
Zibo Shandong |
||||
| Pressure sensor | 150Kg | 4 | Bengbu Anhui | ||||
| Belt scale carrier rollers | φ89×1080 | 1set | Beian,Shandong | ||||
| Belt scale carrier roller | φ89×1040 | 1set | Beian,Shandong | ||||
| Pressure belt pulley | 1 | Beian ,Shandong | |||||
| Dosing belt machine Frame | channel steel [18 | 1 | Beian ,Shandong | ||||
| Motorized pulley | 50120－22KW－2.5 | 1 | Beian ,Shandong | ||||
| Ring flat belt | 1200×5－39.3m nylon belt | 1 | Hebei | ||||
| Belt machine carrier rollers | φ89×455 | 1set | Beian ,Shandong | ||||
| Belt machine carrier rollers | φ89×1350 | 1set | Beian ,Shandong | ||||
| 3 | Powder supply system | Feeding system Powder bin | 80—100T | 2 | Beian ,Shandong | ||
| Dust removal | None | optional | |||||
| Gate valve | 800×800 | 2 | Beian ,Shandong | ||||
| Gate valve hand wheel | 320 | 4 | Beian ,Shandong | ||||
| Screw conveyor | φ325×2700mm | 2 | Beian ,Shandong | ||||
| Spiral motor | 7.5KW | 2 | Beian ,Shandong | ||||
| Steel wire rope | φ6－10m | 2 | Beian ,Shandong | ||||
| Cloth bag | φ325 | 4 | Beian ,Shandong | ||||
| Spiral electronic scale | Φ325×1400mm | 2 | Beian ,Shandong | ||||
| Electronic weighing motor | 4KW | 2 | Beian ,Shandong | ||||
| Current tension sensor | 500Kg | 2 |
Bengbu, Anhui |
||||
| 4 | Operation room | Control room | 1 |
Bengbu, Anhui |
Control mode: Computer control
|
||
| Air conditioner | 1HP (cooling and heating type) | 1 | |||||
| 5 | water supply system | submersible pump | 3KW | 1 | Zibo , Shandong | water control mode: frequency speed regulation | |
| Water pump flow | 40m³/h | 1 | Beian , Shandong | ||||
| Pipelines and fittings | 1 | Weifang, Shandong | |||||
| 6 | Mixing device | Mixer | 1 | Beian , Shandong |
machine type: Double horizontal shaft strong continuous type, double motor |
||
| Double motor | 55KW×2 | 2 | Kaiyuan | ||||
| Blade | High manganese alloy wear-resistant material | 68 | Weifang, Shandong | ||||
| Speed reducer | ZLY200 | 2 | Zibo, Shandong | ||||
| 7 | Storage device | Inclined belt machine |
Installation inclination Q=18° Frame channel :steel [18 |
1 | Beian ,Shandong |
Hopper door drive Method: Pneumatic
storage bin Unloading hight:3700m |
|
| electric drive drum | 50120－30KW－2.5 | 1 | Zibo, Shandong | ||||
| Annular flat belt | 1200×5－39.3m nylon belt | 1 | Hebei | ||||
| Belt machine carrier rollers | φ89×455 | 1set | Beian ,Shandong | ||||
| Belt machine carrier rollers | φ89×1350 | 1set | Beian ,Shandong | ||||
| Vertical roll | 1set | Beian ,Shandong | |||||
| Final storage bin | 10m³ (stacked) iron plate using 5mm | 1 | Beian ,Shandong | ||||
| Vibrator | 1.1KW | 1 | Xinxiang, Henan | ||||
| Electric bell | 1 | Beian ,Shandong | |||||
| 8 | Air circuit system | Solenoid valve | 4V310 | 2 | Zhejiang | ||
| Motor | Y132S1－2－5.5KWB3 | 1 | Beian ,Shandong | ||||
| Air compressor | 0.67/7－5.5KW | 1 | |||||
| Air cylinder | 100×250 | 4 | |||||
| 9 | Electrical control system | Electrical components | 1 | Chint Dexie |
Electrical components can be optional Adopt 485 communication connection |
||
| Control system | 1 | Beian , Shandong | |||||
| Computer host | 1 | Lenovo | |||||
| Monitor | 1 | Lenovo | |||||
| Inverter | 3.7kw | 4 | Hai Li Pu | ||||
| Inverter | 7.5kw | 2 | Hai Li Pu | ||||
| 10 | Attachments | Special tools | 1 | Beian ,Shandong | |||
| user guide | 1 | Beian ,Shandong | |||||
| Certificate of Conformity | 1 | Beian ,Shandong | |||||
Note: 1 Due to technical improvement,the origin of purchased parts and the model of technical parameters may be changed, but the functions are not worse than the existing ones;
2 The buyer needs to prepare the following facilities: the concrete foundation of the mixing station, the power supply to the power distribution cabinet of the mixing station and the water storage source of the mixing station; the mechanical oil required for the equipment, and the necessary lightning protection system in the mixing station.
Stabilized Soil Mixing Station is a perfect choice for road construction, it is equipped with cement silo, which could provide efficient mixing cycle with 60s and 3.7m discharging height. The aggregate batcher with 3-6 m³ capacity ensures enough material input and stable work performance. With the compact structure and superior performance, the stabilized soil mixing station is widely used in road construction.
Our Stabilized Soil Mixing Station comes with a full range of technical support and services. We offer a team of highly experienced and knowledgeable engineers who can provide onsite technical support and services. Our team can provide assistance with installation, commissioning, maintenance, calibration, troubleshooting and repair services. We will also provide training on the proper operation and maintenance of the equipment. In addition, we provide access to our online support services, which provide detailed documentation and FAQs. We also offer a range of spare parts and components for repairs and replacements to ensure the highest level of performance for your Stabilized Soil Mixing Station.
