Stabilized Soil Mixing Station is a kind of special equipment used for mixing stabilized soil with cement silo, lime and other materials. It has a powerful mixing power of 110kw and a high capacity from 50-400t/h. It adopts PLC control system and twin-shaft forced concrete mixer, which is widely used in road construction projects. With its reliable performance, it is easy to operate and maintain. The special design of the mixing station ensures that the mixing process is fast and efficient. The lime stabilized soil mixing station is a reliable and efficient system, which is ideal for creating a mixture of cement, lime and other materials. With its excellent performance, it is the best choice for your road construction project.
WDJ300.400.500.600.700.800 type stabilized soil mixing plant main performance parameters:
| Parameter Model | WDJ300 | WDJ400 | WDJ500 | WDJ600 | WDJ700 | WDJ800 |
| Productivity | 300t/h | 400t/h | 500t/h | 600t/h | 700t/h | 800t/h |
| Measuring method | Computerized | Computerized | Computerized | Computerized | Computerized | Computerized |
| Adjustment method | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control | Variable frequency speed control |
| Control mode | automatic | automatic | automatic | automatic | automatic | automatic |
| Weighing accuracy (aggregate) | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Weighing accuracy (powder) | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Main motor power | 37KW | 45KW | 60KW | 75KW | 90KW | 110KW |
| Total Weight | 24t | 24t | 27t | 27t | 30t | 30t |
| Total power | 115KW | 125KW | 140KW | 155KW | 180KW | 200KW |

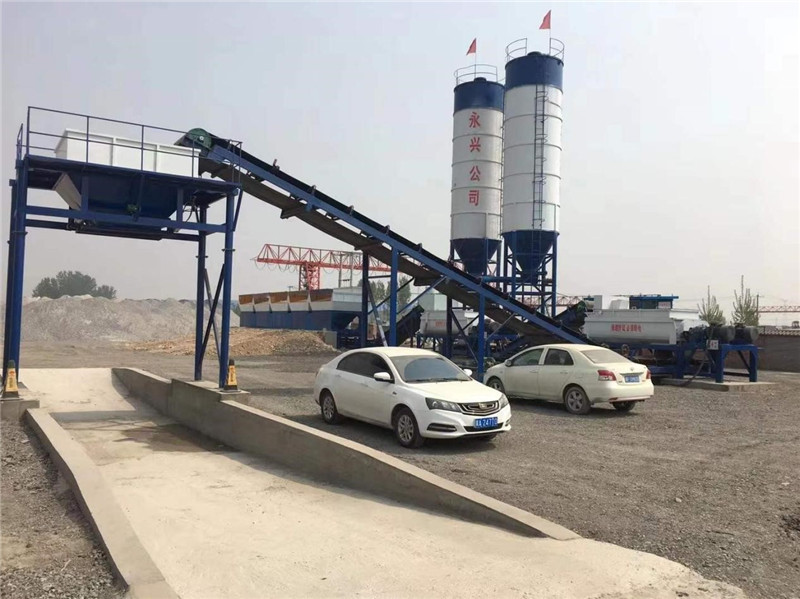

WDJ800 type D computer measured and frequency speed controlled stabilized soil mixing plant configuration table
| No. | Part Name | Specification Model | Quantity | Place of Origin | Remarks | ||
| 1 | Complete machine |
6,Assembly form: detachable type 7, Area:55m*15m 8, Configuration:Four hoppers and two bins (secondary mixing intermediate belt type) |
Aggregate hopper, finished bin iron plate adopts 5mm,;flat belt machine, inclined belt machine channel steel adopts 18;aggregate hopper, mixer legs adopts 20 I-beam,. Flat belt and inclined belt adopt nylon belt.
|
||||
| 2 |
Aggregate batching system
|
Aggregate hopper | 14m³ iron plate using 5mm | 4 | Beian,Shandong |
Combination type: Single bin composition Hopper width: 3300mm Aggregate hopper with baffle |
|
| Vibrator | 1.1KW | 4 | Henan Xinxiang | ||||
| Grid screen |
Grid-reinforced screen
|
4 | Beian,Shandong | ||||
| Belt scale | Weighing accuracy ±0.5-1% | 4 | Beian,Shandong | ||||
| Belt scale drum | 4KW | 4 |
Zibo Shandong |
||||
| Pressure sensor | 150Kg | 4 | Bengbu Anhui | ||||
| Belt scale carrier rollers | φ89×1080 | 1套 | Beian,Shandong | ||||
| Belt scale carrier roller | φ89×1040 | 1套 | Beian,Shandong | ||||
| Pressure belt pulley | 1 | Beian ,Shandong | |||||
| Dosing belt machine Frame | channel steel [18 | 1 | Beian ,Shandong | ||||
| Motorized pulley | 50120－22KW－2.5 | 1 | Beian ,Shandong | ||||
| Ring flat belt | 1200×5－39.3m nylon belt | 1 | Hebei | ||||
| Belt machine carrier rollers | φ89×455 | 1set | Beian ,Shandong | ||||
| Belt machine carrier rollers | φ89×1350 | 1set | Beian ,Shandong | ||||
| Vertical roll | 1set | Beian ,Shandong | |||||
| 3 | Powder supply system | Feeding system Powder bin | 80-100 | 2 | Beian ,Shandong | ||
| Dust removal | None | 0 | optional | ||||
| Gate valve | 800×800 | 2 | Beian ,Shandong | ||||
| Gate valve hand wheel | 320 | 4 | Beian ,Shandong | ||||
| Screw conveyor | φ325×2700mm | 2 | Beian ,Shandong | ||||
| Spiral motor | 7.5KW | 2 | Beian ,Shandong | ||||
| Steel wire rope | φ6－10米 | 2 | Beian ,Shandong | ||||
| Cloth bag | φ325 | 4 | Beian ,Shandong | ||||
| Spiral electronic scale | Φ325×1400mm | 2 | Beian ,Shandong | ||||
| Electronic weighing motor | 4KW | 2 | Beian ,Shandong | ||||
| Current tension sensor | 500Kg | 2 |
Bengbu, Anhui |
||||
| 4 | Operation room | Control room | 1 |
Bengbu, Anhui |
Control mode: Computer control
|
||
| Air conditioner | 1.2HP (cooling and heating type) | 1 | |||||
| 5 | water supply system | submersible pump | 3KW | 1 | Zibo , Shandong | water control mode: frequency speed regulation | |
| Water pump flow | 40m³/h | 1 | Beian , Shandong | ||||
| 6 | Mixing device | Mixer | 2 | Beian , Shandong |
machine type: Double horizontal shaft strong continuous type, double motor |
||
| Double motor | 55KW×2 | 4 | Kaiyuan | ||||
| Blade | 高锰合金耐磨材质 | 68*2 | Weifang, Shandong | ||||
| Speed reducer | ZLY200 | 4 | Zibo, Shandong | ||||
| 7 | Storage device | Inclined belt machine |
Installation inclination Q=18° Frame channel :steel [18 |
1 | Beian ,Shandong |
Hopper door drive Method: Pneumatic
storage bin Unloading hight:3700m |
|
| electric drive drum | 50120－30KW－2.5 | 1 | Zibo, Shandong | ||||
| Annular flat belt | 1200×5－39.3m nylon belt | 1 | Hebei | ||||
| Belt machine carrier rollers | φ89×455 | 1套 | Beian ,Shandong | ||||
| Belt machine carrier rollers | φ89×1350 | 1套 | Beian ,Shandong | ||||
| Vertical roll | 1套 | Beian ,Shandong | |||||
| Final storage bin | 10m³ (stacked) iron plate using 5mm | 1 | Beian ,Shandong | ||||
| Vibrator | 1.1KW | 1 | Xinxiang, Henan | ||||
| Electric bell | 1 | Beian ,Shandong | |||||
| 8 | Air circuit system | Solenoid valve | 4V310 | 2 | Zhejiang | ||
| Motor | Y132S1－2－5.5KWB3 | 1 | Beian ,Shandong | ||||
| Air compressor | 0.67/7－5.5KW | 1 | |||||
| Air cylinder | 100×250 | 4 | |||||
| 9 | Electrical control system | Electrical components | 1 | Chint Dexie |
Electrical components can be optional; Adopt 485 communication connection |
||
| Control system | 1 | Beian , Shandong | |||||
| Computer host | 1 | Lenovo | |||||
| Monitor | 1 | Lenovo | |||||
| Inverter | 3.7kw | 4 | Hai Li Pu | ||||
| Inverter | 7.5kw | 2 | Hai Li Pu | ||||
| 10 |
Intermediate belt
|
Belt carrier rollers | φ89×455 | 1set | Beian ,Shandong | ||
| Belt carrier rollers | φ89×1350 | 1set | Beian ,Shandong | ||||
| Belt | 1200×5－19.4m nylon belt | 1 | Beian ,Shandong | ||||
| Electric drive drum | 50120－22KW6－2.5 | 1 | Beian ,Shandong | ||||
| 11 | Attachments | Special tools | 1 | Beian ,Shandong | |||
| user guide | 1 | Beian ,Shandong | |||||
| Certificate of Conformity | 1 | Beian ,Shandong | |||||
Note: 1 Due to technical improvement,the origin of purchased parts and the model of technical parameters may be changed, but the functions are not worse than the existing ones;
2 The buyer needs to prepare the following facilities: the concrete foundation of the mixing station, the power supply to the power distribution cabinet of the mixing station and the water storage source of the mixing station; the mechanical oil required for the equipment, and the necessary lightning protection system in the mixing station.
A stabilized soil mixing station is a special equipment used in road construction projects. It can be used to produce stabilized soil with a capacity of 50-400 tons per hour, and the mixing cycle is 60 seconds. The control system is a PLC control system, and the additive weighing range is 0-50 kg, which is suitable for construction projects of various scales. Lime stabilized soil mixing station is widely used in road construction projects. It can mix various stabilized soils, such as lime stabilized soil, cement stabilized soil, etc., which is the best choice for road construction projects. The high-precision PLC control system ensures the accuracy of the mixing process. It is highly automated and efficient, and can quickly produce the required stabilized soil, which greatly saves time and labor. The stabilized soil produced by the stabilized soil mixing plant is of high quality and stable performance, which can effectively ensure the quality and safety of the road.
We provide technical support and service for our Stabilized Soil Mixing Station products. Our team of experienced engineers will help you to select the right product for your application and will be available to provide technical assistance throughout the installation, operation, and maintenance of your equipment.
We offer a full range of Stabilized Soil Mixing Station services, including:
For more information about our Stabilized Soil Mixing Station technical support and service, please contact us today.
Q1: What is a Stabilized Soil Mixing Station?
A1: A Stabilized Soil Mixing Station is a multi-functional mixing equipment used for mixing cement, fly ash, and other additives with soil, sand, or other aggregates to produce stabilized soil for construction projects.
Q2: What are the components of a Stabilized Soil Mixing Station?
A2: The components of a Stabilized Soil Mixing Station typically include a mixing tower, a mixing host, a cement silo, an aggregate batching machine, and a control system.
Q3: What are the advantages of using a Stabilized Soil Mixing Station?
A3: The biggest advantages of using a Stabilized Soil Mixing Station are that it can quickly and accurately mix large quantities of soil, sand, and other aggregates with cement and fly ash, and it can be operated easily and safely.
Q4: What industries can benefit from using a Stabilized Soil Mixing Station?
A4: A Stabilized Soil Mixing Station can be used in a variety of industries such as construction, road construction, railway construction, and dam construction.
Q5: Does a Stabilized Soil Mixing Station require regular maintenance?
A5: Yes, regular maintenance is recommended to ensure the Stabilized Soil Mixing Station operates efficiently and safely. This includes regular checks of the components, cleaning, lubrication, and any necessary repairs or replacements.
