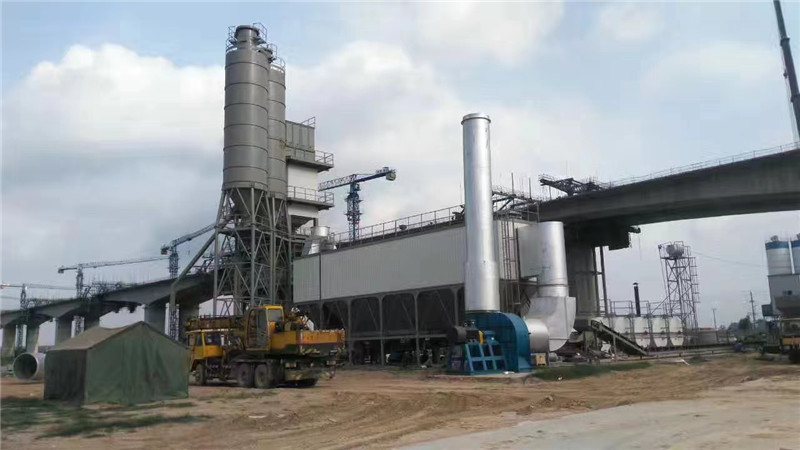

Asphalt mixing plant, also known as asphalt concrete mixing plant. It Refers to the complete set of equipment for mass production of asphalt concrete. According to the mixing method, it can be divided into forced batch type and continuous production type; according to the handling method, it can be divided into fixed type, semi-fixed type and mobile type.
1. According to production capacity can be divided into: small, medium and large.
l Small size, that is, the productivity is below 40t/h;
l Medium-sized, that is, the productivity is 40-400t/h;
l Large size, that is, the productivity is above 400t/h.
2. According to the carrying method , it can be divided into: mobile type, semi-fixed type and fixed type.
l Mobile type: The silo and mixing pot have their own tires, which can be transferred with the construction site, and are suitable for county and township roads and low-grade road projects
l Semi-fixed type: The equipment is installed on several trailers and assembled at the construction site. It is mostly used for road construction.
l Fixed type: The operating site of the equipment is fixed, also known as asphalt concrete processing plant, which is suitable for centralized engineering and urban road construction.
3. According to the stirring method, it can be divided into: continuous drum type and intermittent forced type.
l Continuous drum type: It is produced in a continuous and uninterrupted mixing method, and the heating and drying of the aggregate and the mixing of the mixture are carried out continuously in the same drum.
l Forced intermittent type: The heating and drying of the aggregate and the stirring of the mixture are carried out periodically. The equipment stirs one pot and one pot separately, and each pot is stirred for 45 seconds to 60 seconds, and the output depends on the model of the equipment.
Competitive Advantage:
Item | ||
Production capacity (t/h) | 120 | 160 |
Capacity per pot (kg) | 1800 | 2000 |
Total installed capacity (kw) | 360 | 490 |
Sand and gravel material (four kinds of material accumulation) metering accuracy | ± 0.5% | ± 0.5% |
Powder (two kinds of material accumulation) measuring accuracy | ± 0.5% | ± 0.5% |
Asphalt metering accuracy | ± 0.3% | ± 0.3% |
Temperature control accuracy (℃) | ≤± 5 | ≤± 5 |
Dust prevention efficiency (mg/Nm3) | ≤100 | ≤100 |
Doser length × width (m) | 2.0 × 3.3 | 2.45 × 3.6 |
Hopper capacity (m3) | 7 | 11.3 |
Aggregate belt machine width (mm) | 500 | 650 |
Aggregate belt machine power (kw) | 5.5 | 7.5 |
Drying cylinder diameter × length | 1.8×6.54 | 2.2×8.0 |
Drying cylinder power (kw) | 30 | 11×4 |
Vibrating screen length×width(m) | 4.0×1.5 | 5×1.8 |
Vibrating screen power (kw) | 5.5×2 | 11×2 |
Weighing hopper stone capacity (kg) | 1500 | 2000 |
Weighing hopper powder capacity (kg | 250 | 350 |
Weighing hopper asphalt capacity (kg) | 200 | 300 |
Mixing pot capacity (kg) | 1500 | 2000 |
Mixing pot power (kw) | 37 | 75 |
Asphalt mixing plant, also known as asphalt concrete mixing plant, refers to a complete set of equipment for mass production of asphalt concrete. It can produce asphalt mixture, modified asphalt mixture, and colored asphalt mixture. It is an important equipment for municipal roads, airports and ports.
