Foundation Free Mobile Soil Mixing Plant Equipment Advanced

1 unit
Foundation Free Mobile Soil Mixing Plant Equipment Advanced
Features Gallery Product Description Request A Quote
Mixing Speed: High
Product Name: Mobile Soil Mixing Plant
Output Rate: 300t/h 400t/h 500t/h 600t/h
Measurement Method: Computer Measurement
Control Method: Automation
Total Power: 90KW 100KW 130KW 140KW
Adjustment Method: Frequency
High Light:

foundation free mobile soil mixing plant


advanced mobile soil mixing plant

Basic Infomation
Place of Origin: China
Brand Name: Beian
Payment & Shipping Terms
Packaging Details: Bare Packing
Delivery Time: 15 days
Payment Terms: deposit, full payment before shipment
Supply Ability: 1-100 units/month
Product Description

Product Description:

The foundation-free mobile stabilized soil mixing plant is a kind of advanced mixing equipment developed for its convenient transportation and small movable working area.

It is able to mix cement and stabilized soil, lime-stabilized soil, gravel-stabilized soil and other base-stabilized materials, which could save customers from unnecessary expenses.

The plant is specially suitable for the mobile construction of railways, highways, bridges and other projects with relatively small quantity of stabilized soil.

Besides, Clear Road Mobile Stabilized Soil Mixing Plant has a simple operation, high productivity and low power consumption. You can select 2, 3, 4 warehouses, or special customization according to actual needs.



The introduction of foundation-free mobile stabilized soil mixing plant and horizontal cement silo:

The foundation-free mobile water-stabilized mixing plant adopts a compact design concept and a reasonable layout, which greatly reduces the equipment working area. Its advantages are simple operation, installation, debugging, and easy maintenance. This type of plant features high-sensitivity stainless steel pressure sensor which is with less shaking and better stable signal than the traditional hinge sensor. It is equipped with batching scale to ensure more accurate measurement than that of front drive. The belt weighing unit is composed of frequency speed conversion and professional computer, together with flexible and accurate measurement compensation method makes aggregate ingredients more accurate. The skirt belt is adopted to avoid the impact on the weighing sensor when the sidewall squeeze with the sand stones. Moreover, it is certified by the Technical Supervision Bureau and suitable for the construction of sub-bases such as roads, airports, railways as any grade. It can cut down costs and create higher economic benefits.

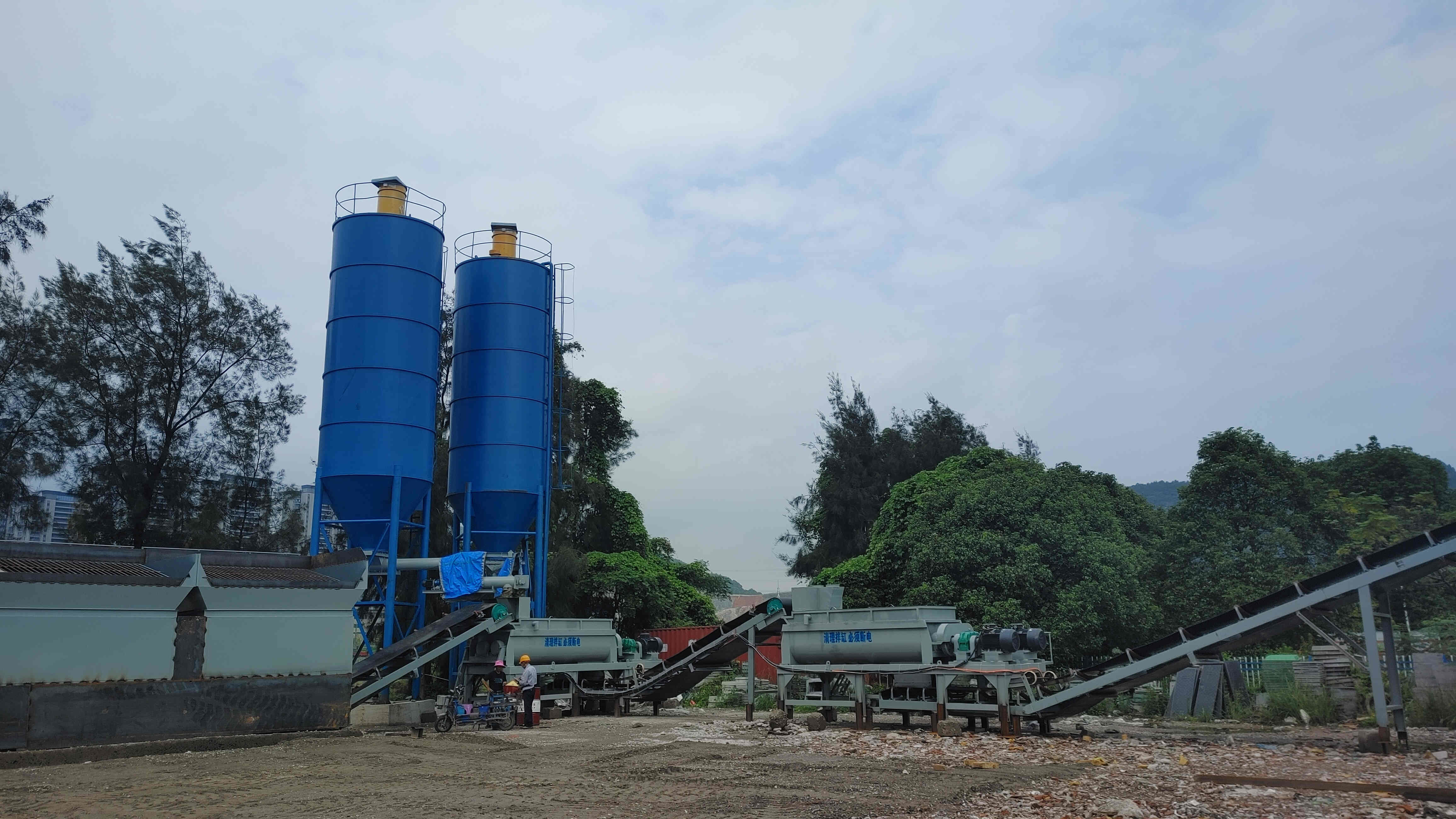

Introduction of foundation-free mobile stabilized soil mixing plant and vertical cement silo:

The silo has Quadruple sealing design to prevents slurry leakage from the shaft head, which can offers high efficiency and less loss and easy to install and maitain. The machine operation interface and working performance are designed to be more humanized and reliable, which can work stably in various terrible environments. The two-horizontal-shaft forcing mixer is featured with strong continuous operation capability, comprehensive mixing track, strong stirring movement, and fast average mixing capability. This set of equipment can be assembled on site without debugging due to its high degree of automation, strong maneuverability, simple operation and good stability. The structure is solid while the space layout is compact and reasonable, which ensures both flexibility and production capacity. With smaller occupation area and relatively easy to move between sites, the mobile water stabilization station can greatly reduce the amount of basic engineering.


Technical Parameters:


The main performance parameters of YWDJ600,500,400,300 foundation-free mobile stabilized soil mixing plant:

Parameter Model YWDJ300 YWDJ400 YWDJ500 YWDJ600
Output Rate 300t/h 400t/h 500t/h 600t/h
Measurement Method Computer Measurement Computer Measurement Computer Measurement Computer Measurement
Adjustment Method Frequency Frequency Frequency Frequency
Control Method Automation Automation Automation Automation
Weighing Accuracy(Aggregate) ±2% ±2% ±2% ±2%
Weighing Accuracy(Powder Material) ±0.5% ±0.5% ±0.5% ±0.5%
Monitor Rate 90KW 100KW 130KW 140KW
Total Weight 24t 24t 26t 26t
Total Power 90KW 100KW 130KW 140KW


YWDJ500-600YWDJ500-600 mobile stabilized soil mixing plant Sub-item configuration table

Number Part Name Specifications quantity place of origin Remark
1 Complete machine
  • Rated production capacity:gravel sand 100~500t/h
  • Total power:120KW
  • Maximum particle size of mixing aggregate:60mm
  • Aggregate measurement accuracy:±0.5-1%
  • Powder measurement accuracy:±0.5-1%
  • Assembly form:Detachable
  • Working Area:20m*15m
  • Configuration:3 hopper and 1 horizontal cement bin(with precipitator)


Aggregate hopper,the iron plate of the finished product silo adopts 5mm, the channel steel of the inclined belt conveyor adopts No. 18, the aggregate hopper and the legs of the mixer adopt 20 I beams, and the inclined belt adopts nylon belt.

The tray is made of 200*200 I beam.








Aggregate Batching System


Aggregate hopper


Iron plate adopts 5 mm model

3 Beian,Shandong Hopper width:3200mm

Vibrating equipment


1.1KW 3 Xinxiang,Henan
Grid sieve Reinforced sieve 3 Beian,Shandong
Belt scale

Measurement accuracy


3 Beian,Shandong
Belt scale roller 4KW 2 Zibo, Shandong
  5.5KW 1
Pressure Sensor 150Kg 3 Bengbu, Anhui
Belt scale idler φ89×780 1set Beian,Shandong
Belt scale idler φ89×740 1set Beian,Shandong

Powder supply


Powder bin 70—100T 1 Horizontal style
Dust removal Pulse bag 1 Beian,Shandong
Gate valve 800×800 4 Beian,Shandong
Gate valve handwheel 320 8 Beian,Shandong
Screw conveyor φ325×3600mm 2 Beian,Shandong
Screw motor 7.5KW 2 Beian,Shandong
Steel wire rope φ6-10meters 1 Beian,Shandong
Cloth bag φ325 2 Beian,Shandong
Screw electronic scale Φ325×1400mm 1 Beian,Shandong
Electronic weighing motor 4KW 1 Beian,Shandong
High speed spiral 11KW 6.2meters 1 Jinan Mikosi
4 Control system Control room   1

control method:

computer control,


water supply system


Submersible pump 2.2KW 1 Zibo, Shandong

Water mode:

frequency conversion

Pump flow 40m³/h 1 Beian,Shandong
Pipeline and accessories   1 Weifang, Shandong
6 Stirring part Blender   1 Beian,Shandong

Host type:

Double-shaft forced continuous

Motor 30KW 2 Motor No. 1 Factory
Blade High manganese alloy wear-resistant material 56 Weifang, Shandong
Reducer ZLY180 2 Zibo, Shandong
7 Storage part Inclined belt conveyor

Installation inclination


frame channel steel[18

1 Beian,Shandong

Doumen drive

Method: Pneumatic


Storage bin

Unload hight:3100mm


Motor Drum 50100-15KW-2.5 1 Zibo, Shandong
Annular flat belt



1000×5-21.5meters(nylon belt) 1 Hebei
Belt Conveyor Idler φ89×375 1set Beian,Shandong
Belt Conveyor Idler φ89×1150 1set Beian,Shandong
Vertical Idler   1set Beian,Shandong
Final storage bin


Iron plate adopts 5mm model

1 Beian,Shandong
Vibrating equipment 0.5KW 1 Xinxiang,Henan
Electric bell   1 Beian,Shandong
8 Air system Electromagnetic valve 4V310 2 Zhejiang
Motor Y132S1-2-5.5KWB3 1 Beian,Shandong
Air compressor 0.67/7-5.5KW 1


Air cylinder


100×250 2
9 Electric control system Electronics components   1 Chint Delixi

Electrical devices are optional

using 485 communication connection

Control System   1 Beian,Shandong
Host computer   1 Lenovo
Monitor   1 Lenovo
Inverter 3.7kw 2
Inverter 5.5kw7.5kw 2
11 Random accessories Specific tools   1 Beian,Shandong
Instruction   1 Beian,Shandong
Circuit diagram   1 Beian,Shandong
Certificate   1 Beian,Shandong



Note: 1 Due to technical improvement,the origin of purchased parts and the model of technical parameters may be changed, but the functions are not worse than the existing ones;

2 The buyer needs to prepare the following facilities: the concrete foundation of the mixing station, the power supply to the power distribution cabinet of the mixing station and the water storage source of the mixing station; the mechanical oil required for the equipment, and the necessary lightning protection system in the mixing station.


The mobile stabilized soil mixing plant is perfect for those needing to provide base materials in their construction projects, such as highways, city roads, airports, and sports fields. This cutting-edge equipment is capable of using a variety of raw material ingredients such as high-quality quicklime, slaked lime, soil, sandstone, fly ash, and cement. Its output is a range of base materials including cement-stabilized gravel, lime-soil stabilized materials, and compressible concrete. Mixing the ingredients uniformly, the base materials generated are precision proportioned and pure, making them ideal for engineering construction.


Support and Services:

Our Mobile Soil Mixing Plant offers a full range of technical support and services, including:

  • Installation and commissioning assistance
  • On-site technical assistance and remote troubleshooting
  • Scheduled maintenance services
  • In-depth technical training
  • Full parts and service support
