Aggregate Batching System Batching Plant Parts For Stabilized Soil Mixing Station

1 unit
MOQ
Negotiable
Price
Aggregate Batching System Batching Plant Parts For Stabilized Soil Mixing Station
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Stabilized Soil Mixing Station Parts
Total Power: ≤200KW
Combination Type: Single Bin
Feature: High Efficiency
Application: Stabilized Soil Mixing Station
Brand: Beian
High Light:

Batching System For Soil Mixing Station

,

Stabilized Soil Mixing Station Batching System

Basic Infomation
Place of Origin: China
Brand Name: Beian
Payment & Shipping Terms
Packaging Details: Bare Packing
Delivery Time: 15 days
Payment Terms: deposit, full payment before shipment
Supply Ability: 1-100 units/month
Product Description

Details

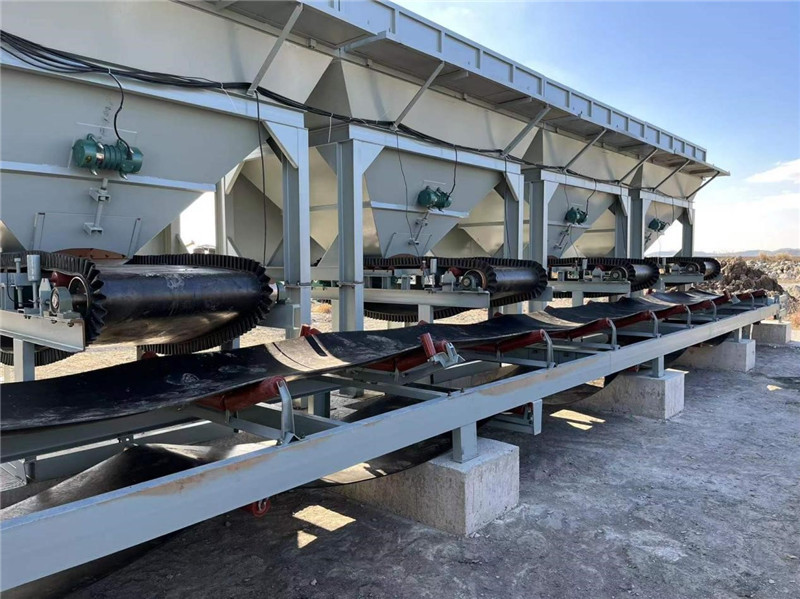

1. Aggregate ingredients meter reading- Aggregate hopper,computer belt scale

,Horizontal belt conveyor.

  • Stirring device - mixer, double motor, double reducer, stirring blade
  • Superposition secondary mixer, double motor, double reducer
  • Storage device
  • Control System-Air Conditioning Operating room, host computer, monitor, switchboard, holip inverter, etc. The YH-2000-MDBS intelligent distribution microcomputer control batching system designed by our company is designed on the basis of our company's many years of control experience and the products of various companies currently on the market. Windows 10, which is generally familiar to everyone, is selected as the operating system, which is easy to use and learn. We Just follow the prompts on the interface to master within a few minutes. At the same time, the serial interface RS485 control is adopted, and the control mode of inserting ADDA board card into the computer is discarded, which greatly simplifies the system structure and reduces the failure rate of the equipment, so that the computer only needs one twisted pair wire to connect all control frequency converter . It is enough to pass the device, so the production cycle is greatly shortened and the difficulty of maintenance is reduced.

Technical Parameters:

  Part Name Specification Model Quantity Place of Origin Remarks
Aggregate batching system Aggregate hopper 14m³ iron plate using 5mm 4 Beian,Shandong Combination type: Single bin composition
Hopper width: 3300mm
Aggregate hopper with baffle
Vibrator 1.1KW 4 Henan Xinxiang
Grid screen Grid-reinforced screen 4 Beian,Shandong
Belt scale Weighing accuracy ±0.5-1% 4 Beian,Shandong
Belt scale drum 4KW 4 Zibo
Shandong
Pressure sensor 150Kg 4 Bengbu Anhui
Belt scale carrier rollers φ89×1080 1set Beian,Shandong
Belt scale carrier roller φ89×1040 1set Beian,Shandong
Pressure belt pulley   1 Beian ,Shandong
Dosing belt machine Frame channel steel [18 1 Beian ,Shandong
Motorized pulley 5012022KW2.5 1 Beian ,Shandong
Ring flat belt 1200×539.3m nylon belt 1 Hebei
Belt machine carrier rollers φ89×455 1set Beian ,Shandong
Belt machine carrier rollers φ89×1350 1set Beian ,Shandong
