Fully Automatic Gravel Stabilized Soil Mixing Plant With Vertical Cement Silo

1 unit
Fully Automatic Gravel Stabilized Soil Mixing Plant With Vertical Cement Silo
Features Gallery Product Description Request A Quote
Product Name: Mobile Soil Mixing Plant
Mixing Efficiency: High
Mixing Capacity: Large
Mixing Type: Mobile
Output Rate: 300t/h 400t/h 500t/h 600t/h
Measurement Method: Computer Measurement
Control Method: Automation
Total Power: 90KW 100KW 130KW 140KW
Adjustment Method: Frequency
High Light:

Gravel Stabilized Soil Mixing Plant


Fully Automatic Stabilized Soil Mixing Plant


Fully Automatic stabilized soil mixing station

Basic Infomation
Place of Origin: China
Brand Name: Beian
Payment & Shipping Terms
Packaging Details: Bare Packing
Delivery Time: 15 days
Payment Terms: deposit, full payment before shipment
Supply Ability: 1-100 units/month
Product Description

Product Description:

The Foundation-Free Mobile Stabilized Soil Mixing Plant is a new type of mixing equipment, which has the advantage of being able to operate in a small working area with the ability to be disassembled and transported to another location for continued use. It is custom made to suit customers needs and save unnecessary expenses as it can mix cement and stabilized soil, lime-stabilized soil, gravel-stabilized soil, and other base-stabilized materials.

This particular product is ideal for mobile construction of railways, highways, bridges, and other projects requiring only relatively small amounts of stabilized soil. The Clear Road Mobile Stabilized Soil Mixing Plant is simple to operate with a high output rate and low power consumption.

Depending on one’s individual requirements, this equipment is available with two, three, or four warehouses or can be customized for a special need.



Introduction to Foundation-free Mobile Stabilizied Soil Mixing Plant and Cement Silo
Mixing Plant and Horizontal Cement Silo

The foundation-free mobile water-stabilized mixing plant adopts a compact design concept and a reasonable layout, which greatly reduces the equipment working area; At actual operation, it has the advantages of simple operation, installation, debugging, and easy maintenance; By the terms of spare parts, we will selected Suitable and cost-effective accessories carefully,which could cut down your costs and create higher economic benefits. It is suitable for the construction of sub-base such as roads, airports and railways as any grade.

This device has the advantage of reliable working performance, stable and accurate weighing unit, accurate batching scale measurement, and flexible and accurate compensation method. It also has practical conveyor belt, professional qualification certification and quadrupole sealing design. It is worth mentioning that the rear drive of the batching scale is adopt, which is more accurate in weighing compared with the front drive. Joint diagnosis alarm can effectively prevent system failure, ensuring safe and continued production.

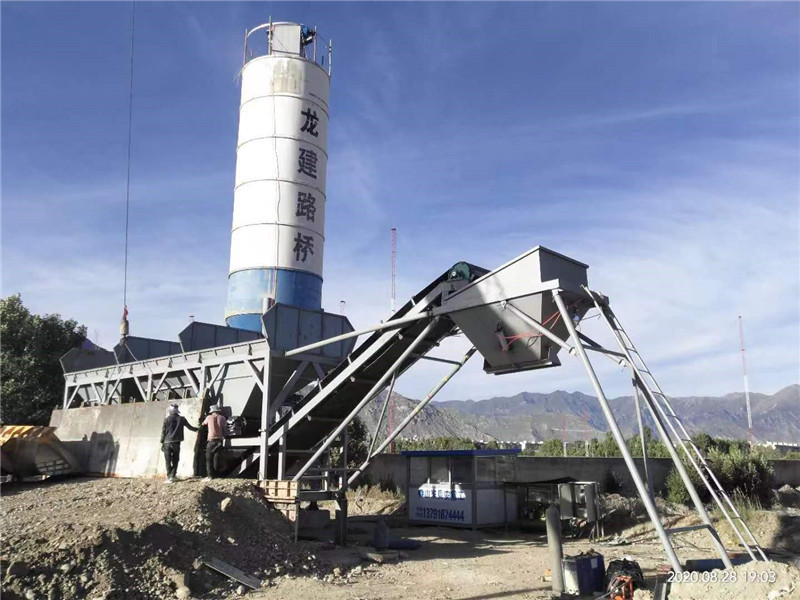

Vertical Cement Silo

The vertical cement silo can be used to store more bulk cement, and it has many advantages, such as humanized operation interface, reliable working performance, strong continuous operation capability, comprehensive mixing track, strong stirring movement, and fast average mixing capability. The vertical cement silo can concentrate almost all the processes of stable soil production such as material storage, weighing, conveying, mixing, unloading and automatic control system. In addition, the quadruple sealing design of the silo can prevent leakage of slurry from the shaft head, and the whole set of equipment can be quickly transported to the construction site and assembled on site. The degree of automation is high, the maneuverability is strong, the simple operation and the good stability, and the space layout is compact and reasonable.


Technical Parameters:


The main performance parameters of YWDJ600,500,400,300 foundation-free mobile stabilized soil mixing plant:

Parameter Model YWDJ300 YWDJ400 YWDJ500 YWDJ600
Output Rate 300t/h 400t/h 500t/h 600t/h
Measurement Method Computer Measurement Computer Measurement Computer Measurement Computer Measurement
Adjustment Method Frequency Frequency Frequency Frequency
Control Method Automation Automation Automation Automation
Weighing Accuracy(Aggregate) ±2% ±2% ±2% ±2%
Weighing Accuracy(Powder Material) ±0.5% ±0.5% ±0.5% ±0.5%
Monitor Rate 90KW 100KW 130KW 140KW
Total Weight 24t 24t 26t 26t
Total Power 90KW 100KW 130KW 140KW


YWDJ500-600 Mobile Stabilized Soil Mixing Plant



YWDJ500-600YWDJ500-600 mobile stabilized soil mixing plant Sub-item configuration table

Number Part Name Specifications quantity place of origin Remark
1 Complete machine
  • Rated production capacity:gravel sand 100~500t/h
  • Total power:120KW
  • Maximum particle size of mixing aggregate:60mm
  • Aggregate measurement accuracy:±0.5-1%
  • Powder measurement accuracy:±0.5-1%
  • Assembly form:Detachable
  • Working Area:20m*15m

Configuration:3 hopper and 1 bin

Aggregate hopper,the iron plate of the finished product silo adopts 5mm, the channel steel of the inclined belt conveyor adopts No. 18, the aggregate hopper and the legs of the mixer adopt 20 I beams, and the inclined belt adopts nylon belt.

The tray is made of 200*200 I beam.








Aggregate Batching System


Aggregate hopper


Iron plate adopts 5 mm model

3 Beian,Shandong Hopper width:3200mm

Vibrating equipment


1.1KW 3 Xinxiang,Henan
Grid sieve Reinforced sieve 3 Beian,Shandong
Belt scale

Measurement accuracy


3 Beian,Shandong
Belt scale roller 4KW 2 Zibo, Shandong
  5.5KW 1
Pressure Sensor 150Kg 3 Bengbu, Anhui
Belt scale idler φ89×780 1set Beian,Shandong
Belt scale idler φ89×740 1set Beian,Shandong

Powder supply


Powder bin 70—100T 1 Beian,Shandong
Dust removal Pulse bag No Beian,Shandong
Gate valve 800×800 1 Beian,Shandong
Gate valve handwheel 320 2 Beian,Shandong
Screw conveyor φ325×2700mm 1 Beian,Shandong
Screw motor 5.5KW 1 Beian,Shandong
Steel wire rope φ6-10meters 1 Beian,Shandong
Cloth bag φ325 2 Beian,Shandong
Screw electronic scale Φ325×1400mm 1 Beian,Shandong
Electronic weighing motor 4KW 1 Beian,Shandong
4 Control system Control room   1

control method:

computer control,


water supply system


Submersible pump 2.2KW 1 Zibo, Shandong

Water mode:

frequency conversion

Pump flow 40m³/h 1 Beian,Shandong
Pipeline and accessories   1 Weifang, Shandong
6 Stirring part Blender   1 Beian,Shandong

Host type:

Double-shaft forced continuous

Motor 30KW 2 Kaiyuan
Blade High manganese alloy wear-resistant material 56 Weifang, Shandong
Reducer ZLY180 2 Zibo, Shandong
7 Storage part Inclined belt conveyor

Installation inclination


frame channel steel[18

1 Beian,Shandong

Doumen drive

Method: Pneumatic


storage bin

Unload hight:3100mm


Motor Drum 50100-15KW-2.5 1 Zibo, Shandong
Annular flat belt



1000×5-21.5meters(nylon) 1 Hebei
Belt Conveyor Idler φ89×375 1set Beian,Shandong
Belt Conveyor Idler φ89×1150 1set Beian,Shandong
Vertical Idler   1set Beian,Shandong
Final storage bin


Iron plate adopts 5 mm model

1 Beian,Shandong
Vibrating equipment 0.5KW 1 Xinxiang,Henan
Electric bell   1 Beian,Shandong
8 Air system Electromagnetic valve 4V310 2 Zhejiang
Motor Y132S1-2-5.5KWB3 1 Beian,Shandong
Air compressor 0.67/7-5.5KW 1


Air cylinder


100×250 2
9 Electric control system Electronics components   1 Chint Delixi

Electrical devices are optional

using 485 communication connection

Control System   1 Beian,Shandong
Host computer   1 Lenovo
Monitor   1 Lenovo
Inverter 3.7kw 2
Inverter 5.5kw7.5kw 2
11 Random accessories Specific tools   1 Beian,Shandong
Instruction   1 Beian,Shandong
Circuit diagram   1 Beian,Shandong
Certificate   1 Beian,Shandong



Note: 1 Due to technical improvement,the origin of purchased parts and the model of technical parameters may be changed, but the functions are not worse than the existing ones;

2 The buyer needs to prepare the following facilities: the concrete foundation of the mixing station, the power supply to the power distribution cabinet of the mixing station and the water storage source of the mixing station; the mechanical oil required for the equipment, and the necessary lightning protection system in the mixing station.


The mobile stabilized soil mixing plant is specifically designed for the construction of base materials such as highways, city roads, airports and sports fields. Boasting a high level of technology, it utilizes quicklime, slaked lime, soil, sandstone, fly ash, cement and other raw materials to yield cement-stabilized gravel, lime-soil stabilized materials, compressible concrete and other base materials.

Not only is the proportion of the produced base materials accurate, but the uniformity of mixing is also outstanding. Its capability to serve in engineering construction makes it an ideal choice.


Support and Services:

Mobile Soil Mixing Plant Technical Support and Service
Technical Support

We provide technical support for our Mobile Soil Mixing Plant customers. Our team of experts are available to answer any questions you may have about the product. We also provide regular updates to ensure that the product is running smoothly.


We offer comprehensive service for our Mobile Soil Mixing Plant. Our technicians are available 24/7 to provide maintenance and troubleshooting services. We also provide regular inspections to ensure that the product is in good working order.


Packing and Shipping:

Packaging and Shipping of Mobile Soil Mixing Plant:

The Mobile Soil Mixing Plant is packaged using heavy-duty cardboard boxes and plastic wraps to ensure a safe delivery. The product is shipped using reliable transportation services to ensure timely delivery.
