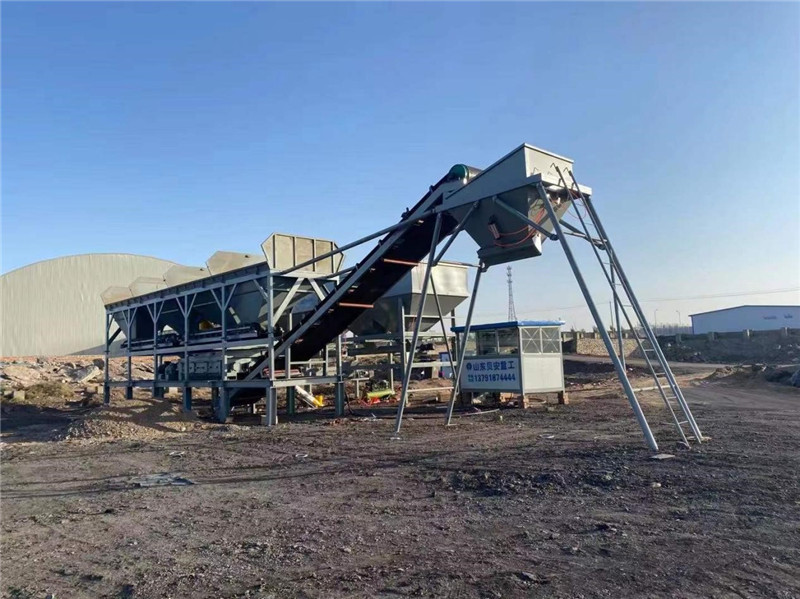

Large Capacity Electric Stabilized Soil Mixing Station Mobile Mixing Plant 100KW

1 unit
Large Capacity Electric Stabilized Soil Mixing Station Mobile Mixing Plant 100KW
Features Gallery Product Description Request A Quote
Product Name: Mobile Soil Mixing Plant
Output Rate: 300t/h 400t/h 500t/h 600t/h
Measurement Method: Computer Measurement
Control Method: Automation
Total Power: 90KW 100KW 130KW 140KW
Adjustment Method: Frequency
High Light:

Large Capacity Stabilized Soil Mixing Station


Mobile Mixing Plant 400t/H


Stabilized Soil Mixing Station 100KW

Basic Infomation
Place of Origin: China
Brand Name: Beian
Payment & Shipping Terms
Packaging Details: Bare Packing
Delivery Time: 15 days
Payment Terms: deposit, full payment before shipment
Supply Ability: 1-100 units/month
Product Description

Product Description:

Advantages of Clear Road Mobile Stabilized Soil Mixing Plant

The Clear Road Mobile Stabilized Soil Mixing Plant is an innovative mixing device with great practical value. Its mobile working zone is small and involves minimal effort in assembling and transporting to the next construction spot for continued use. Moreover, it is capable of blending various stabilized soils such as cemented, lime stabilized, sandy stabilized, and gravel stabilized materials. It has also been proven to be suitably applied for projects requiring small amounts of stabilized soil such as rail constructions, highways, bridges, and etc.

Furthermore, this mobile plant features easy operations and high efficiency at minimal power consumption. Customers can choose between 2, 3 or 4 warehouses or customise according to specific needs.



Introduction of foundation-free mobile stabilized soil mixing plant and horizontal cement silo

The foundation-free mobile water-stabilized mixing plant adopts a compact design concept and a reasonable layout, which greatly reduces the equipment working area. At actual operation, it has the advantages of simple operation, installation, debugging, and easy maintenance. We choose Suitable and cost-effective accessories to cut down the costs and create higher economic benefits. It is suitable for the construction of sub-bases such as roads, airports, railways as any grade.

The sensor used in this plant has a stable performance. The weighing unit adopts a high-sensitivity stainless steel pressure sensor than the traditional hinge sensor. It has less shaking, better stable signal and lower broken rate. And the batching scale adopts the rear drive, which is more accurate in weighing compared with the front drive. Furthermore, The natural loose edge of the working surface on the belt reduces the impact of the belt tension on the weighing sensor, thereby ensuring the weighing signal more stable and accurate.

The belt weighing unit composed of frequency speed conversion and professional computer and flexible and accurate measurement compensation method, compared with the traditional volume measurement of slip speed regulation, the former measurement compensation is more timely and flexible; The accurate compensation makes aggregate ingredients more accurate; Broken diagnosis alarm provided at any time can maintain the safe and continuous production of the entire equipment.

A skirt belt is used to avoid the impact on the weighing sensor when the sidewall squeeze with the sand stones, so as to ensure that the data of the sensor is more real and effective, and the measurement is more accurate. We also obtained the belt weighing measurement technology qualification certification issued by the Technical Supervision Bureau.

Introduction of foundation-free mobile stabilized soil mixing plant and vertical cement silo

This plant uses vertical cement silo, its structure is compact, and it concentrates almost all the processes of stable soil production such as material storage, weighing, conveying, mixing, unloading and automatic control system. The machine operation interface is humanized, the working performance is reliable, and it can still work stably in various terrible environments.

The two-horizontal-shaft forcing mixer has strong continuous operation capability, comprehensive mixing track, strong stirring movement, and fast average mixing capability. The Silo has Quadruple sealing design which can prevents slurry leakage from the shaft head, with high efficiency and less loss, and it is easy to install and maitain.

It has high degree of automation, strong maneuverability, simple operation and good stability. The structure is solid while the space layout is compact and reasonable, which ensures flexibility and production capacity at the same time. The mobile water stabilization station occupies very small area and is easy to move between sites, which greatly reduces the amount of basic engineering.


Technical Parameters:


The main performance parameters of YWDJ600,500,400,300 foundation-free mobile stabilized soil mixing plant:

Parameter Model YWDJ300 YWDJ400 YWDJ500 YWDJ600
Output Rate 300t/h 400t/h 500t/h 600t/h
Measurement Method Computer Measurement Computer Measurement Computer Measurement Computer Measurement
Adjustment Method Frequency Frequency Frequency Frequency
Control Method Automation Automation Automation Automation
Weighing Accuracy(Aggregate) ±2% ±2% ±2% ±2%
Weighing Accuracy(Powder Material) ±0.5% ±0.5% ±0.5% ±0.5%
Monitor Rate 90KW 100KW 130KW 140KW
Total Weight 24t 24t 26t 26t
Total Power 90KW 100KW 130KW 140KW


YWDJ500-600 Mobile Stabilized Soil Mixing Plant



YWDJ500-600YWDJ500-600 mobile stabilized soil mixing plant Sub-item configuration table

Number Part Name Specifications quantity place of origin Remark
1 Complete machine
  • Rated production capacity:gravel sand 100~500t/h
  • Total power:120KW
  • Maximum particle size of mixing aggregate:60mm
  • Aggregate measurement accuracy:±0.5-1%
  • Powder measurement accuracy:±0.5-1%
  • Assembly form:Detachable
  • Working Area:20m*15m

Configuration:3 hopper and 1 bin

Aggregate hopper,the iron plate of the finished product silo adopts 5mm, the channel steel of the inclined belt conveyor adopts No. 18, the aggregate hopper and the legs of the mixer adopt 20 I beams, and the inclined belt adopts nylon belt.

The tray is made of 200*200 I beam.








Aggregate Batching System


Aggregate hopper


Iron plate adopts 5 mm model

3 Beian,Shandong Hopper width:3200mm

Vibrating equipment


1.1KW 3 Xinxiang,Henan
Grid sieve Reinforced sieve 3 Beian,Shandong
Belt scale

Measurement accuracy


3 Beian,Shandong
Belt scale roller 4KW 2 Zibo, Shandong
  5.5KW 1
Pressure Sensor 150Kg 3 Bengbu, Anhui
Belt scale idler φ89×780 1set Beian,Shandong
Belt scale idler φ89×740 1set Beian,Shandong

Powder supply


Powder bin 70—100T 1 Beian,Shandong
Dust removal Pulse bag No Beian,Shandong
Gate valve 800×800 1 Beian,Shandong
Gate valve handwheel 320 2 Beian,Shandong
Screw conveyor φ325×2700mm 1 Beian,Shandong
Screw motor 5.5KW 1 Beian,Shandong
Steel wire rope φ6-10meters 1 Beian,Shandong
Cloth bag φ325 2 Beian,Shandong
Screw electronic scale Φ325×1400mm 1 Beian,Shandong
Electronic weighing motor 4KW 1 Beian,Shandong
4 Control system Control room   1

control method:

computer control,


water supply system


Submersible pump 2.2KW 1 Zibo, Shandong

Water mode:

frequency conversion

Pump flow 40m³/h 1 Beian,Shandong
Pipeline and accessories   1 Weifang, Shandong
6 Stirring part Blender   1 Beian,Shandong

Host type:

Double-shaft forced continuous

Motor 30KW 2 Kaiyuan
Blade High manganese alloy wear-resistant material 56 Weifang, Shandong
Reducer ZLY180 2 Zibo, Shandong
7 Storage part Inclined belt conveyor

Installation inclination


frame channel steel[18

1 Beian,Shandong

Doumen drive

Method: Pneumatic


storage bin

Unload hight:3100mm


Motor Drum 50100-15KW-2.5 1 Zibo, Shandong
Annular flat belt



1000×5-21.5meters(nylon) 1 Hebei
Belt Conveyor Idler φ89×375 1set Beian,Shandong
Belt Conveyor Idler φ89×1150 1set Beian,Shandong
Vertical Idler   1set Beian,Shandong
Final storage bin


Iron plate adopts 5 mm model

1 Beian,Shandong
Vibrating equipment 0.5KW 1 Xinxiang,Henan
Electric bell   1 Beian,Shandong
8 Air system Electromagnetic valve 4V310 2 Zhejiang
Motor Y132S1-2-5.5KWB3 1 Beian,Shandong
Air compressor 0.67/7-5.5KW 1


Air cylinder


100×250 2
9 Electric control system Electronics components   1 Chint Delixi

Electrical devices are optional

using 485 communication connection

Control System   1 Beian,Shandong
Host computer   1 Lenovo
Monitor   1 Lenovo
Inverter 3.7kw 2
Inverter 5.5kw7.5kw 2
11 Random accessories Specific tools   1 Beian,Shandong
Instruction   1 Beian,Shandong
Circuit diagram   1 Beian,Shandong
Certificate   1 Beian,Shandong



Note: 1 Due to technical improvement,the origin of purchased parts and the model of technical parameters may be changed, but the functions are not worse than the existing ones;

2 The buyer needs to prepare the following facilities: the concrete foundation of the mixing station, the power supply to the power distribution cabinet of the mixing station and the water storage source of the mixing station; the mechanical oil required for the equipment, and the necessary lightning protection system in the mixing station.


Mobile stabilized soil mixing plant

The mobile stabilized soil mixing plant is an ideal equipment for the construction needs of projects such as highways, city roads, airports, sports fields, etc. It is produced with high-level technology. The plant can use quicklime, slaked lime, soil, sandstone, fly ash, cement, etc. as raw materials, to produce quality base materials such as cement-stabilized gravel, lime-soil stabilized materials, compressible concrete, etc. The materials are mixed in accurate proportion, ensuring their uniformity, and can be used for engineering construction.


Support and Services:

Technical Support and Service for Mobile Soil Mixing Plant

We provide technical support and service for our Mobile Soil Mixing Plant. Our experienced engineers are available to help you with any questions or problems you may have. We offer remote assistance for installation, repair, and maintenance. We also provide 24/7 customer service and technical support over the phone and online.

Our team of experts can provide on-site support and technical training to ensure your Mobile Soil Mixing Plant is running optimally. We also offer a full range of spare parts and accessories to keep your equipment in top condition.

We are committed to providing you with the best possible service and support. If you have any questions or concerns, please don't hesitate to contact us.
