Computerized Mobile Soil Mixing Plant Equipment 120KW With Horizontal Cement Bin

1 unit
Computerized Mobile Soil Mixing Plant Equipment 120KW With Horizontal Cement Bin
Features Gallery Product Description Request A Quote
Product Name: Mobile Soil Mixing Plant
Output Rate: 300t/h 400t/h 500t/h 600t/h
Measurement Method: Computer Measurement
Control Method: Automation
Total Power: 90KW 100KW 130KW 140KW
Adjustment Method: Frequency
High Light:

Computerized Mobile Soil Mixing Plant


Mixing Plant Equipment 120KW


Mobile Soil Mixing Plant 120KW

Basic Infomation
Place of Origin: China
Brand Name: Beian
Payment & Shipping Terms
Packaging Details: Bare Packing
Delivery Time: 15 days
Payment Terms: deposit, full payment before shipment
Supply Ability: 1-100 units/month
Product Description

Product Description:

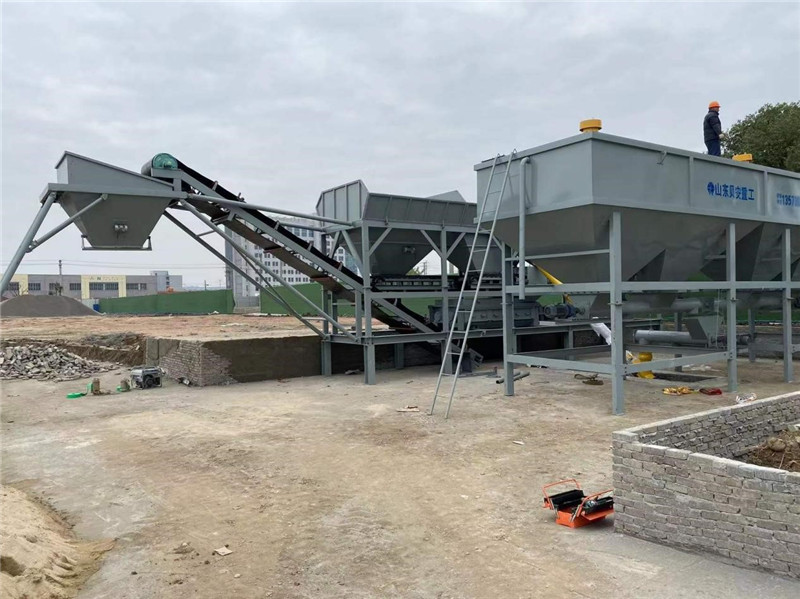

The Foundation-free Mobile Stabilized Soil Mixing Plant is a new type of mixing equipment. It is specially designed with a small movable working area that allows it to be dissembled and transported to the next destination for continued use, reducing unnecessary expenses for customers. It can accommodate multiple types of base-stabilized materials such as cement and stabilized soil, lime-stabilized soil, and gravel-stabilized soil.

The Mobile Stabilized Soil Mixing Plant is suitable for mobile construction projects for railway, highways, bridges, etc which require a relatively small amount of stabilized soil. It is a highly efficient machine which produces high output with low energy consumption and easy operation. Customers may choose between 2 warehouses, 3 warehouses, 4 warehouses of the Mixing Plant, or customize it to their existing requirements.



Introduction of Foundation-Free Mobile Stabilized Soil Mixing Plant and Cement Silos

The introduction of foundation-free mobile stabilized soil mixing plant and horizontal cement silo offer various benefits - from the use of high-sensitivity stainless steel pressure sensors that provide stable and accurate signals, to the flexible and accurate compensation methods that make aggregate ingredients more accurate.

The machine's operation interface is humanized; it can work stably in various terrible environments and it has the advantage of simple operation, installation, debugging, and easy maintenance. The two-horizontal-shaft forcing mixer is designed to have strong stirring movements, continuous operation capability, and fast average mixing capability. The silo also has a quadruple sealing design, which prevents slurry leakage from the shaft head with high efficiency and less loss.

The mobile water-stabilized mixing plant also offers more practical conveying belts and a compact design concept that reduces the equipment's working area. It has a high degree of automation, strong maneuverability, simple operation and good stability. And it also cuts down costs and creates higher economic benefits for users. It is suitable for the construction of sub-bases such as roads, airports, and railways of any grade.


Technical Parameters:


The main performance parameters of YWDJ600,500,400,300 foundation-free mobile stabilized soil mixing plant:

Parameter Model YWDJ300 YWDJ400 YWDJ500 YWDJ600
Output Rate 300t/h 400t/h 500t/h 600t/h
Measurement Method Computer Measurement Computer Measurement Computer Measurement Computer Measurement
Adjustment Method Frequency Frequency Frequency Frequency
Control Method Automation Automation Automation Automation
Weighing Accuracy(Aggregate) ±2% ±2% ±2% ±2%
Weighing Accuracy(Powder Material) ±0.5% ±0.5% ±0.5% ±0.5%
Monitor Rate 90KW 100KW 130KW 140KW
Total Weight 24t 24t 26t 26t
Total Power 90KW 100KW 130KW 140KW


YWDJ500-600YWDJ500-600 mobile stabilized soil mixing plant Sub-item configuration table

Number Part Name Specifications quantity place of origin Remark
1 Complete machine
  • Rated production capacity:gravel sand 100~500t/h
  • Total power:120KW
  • Maximum particle size of mixing aggregate:60mm
  • Aggregate measurement accuracy:±0.5-1%
  • Powder measurement accuracy:±0.5-1%
  • Assembly form:Detachable
  • Working Area:20m*15m
  • Configuration:3 hopper and 1 horizontal cement bin(with precipitator)


Aggregate hopper,the iron plate of the finished product silo adopts 5mm, the channel steel of the inclined belt conveyor adopts No. 18, the aggregate hopper and the legs of the mixer adopt 20 I beams, and the inclined belt adopts nylon belt.

The tray is made of 200*200 I beam.








Aggregate Batching System


Aggregate hopper


Iron plate adopts 5 mm model

3 Beian,Shandong Hopper width:3200mm

Vibrating equipment


1.1KW 3 Xinxiang,Henan
Grid sieve Reinforced sieve 3 Beian,Shandong
Belt scale

Measurement accuracy


3 Beian,Shandong
Belt scale roller 4KW 2 Zibo, Shandong
  5.5KW 1
Pressure Sensor 150Kg 3 Bengbu, Anhui
Belt scale idler φ89×780 1set Beian,Shandong
Belt scale idler φ89×740 1set Beian,Shandong

Powder supply


Powder bin 70—100T 1 Horizontal style
Dust removal Pulse bag 1 Beian,Shandong
Gate valve 800×800 4 Beian,Shandong
Gate valve handwheel 320 8 Beian,Shandong
Screw conveyor φ325×3600mm 2 Beian,Shandong
Screw motor 7.5KW 2 Beian,Shandong
Steel wire rope φ6-10meters 1 Beian,Shandong
Cloth bag φ325 2 Beian,Shandong
Screw electronic scale Φ325×1400mm 1 Beian,Shandong
Electronic weighing motor 4KW 1 Beian,Shandong
High speed spiral 11KW 6.2meters 1 Jinan Mikosi
4 Control system Control room   1

control method:

computer control,


water supply system


Submersible pump 2.2KW 1 Zibo, Shandong

Water mode:

frequency conversion

Pump flow 40m³/h 1 Beian,Shandong
Pipeline and accessories   1 Weifang, Shandong
6 Stirring part Blender   1 Beian,Shandong

Host type:

Double-shaft forced continuous

Motor 30KW 2 Motor No. 1 Factory
Blade High manganese alloy wear-resistant material 56 Weifang, Shandong
Reducer ZLY180 2 Zibo, Shandong
7 Storage part Inclined belt conveyor

Installation inclination


frame channel steel[18

1 Beian,Shandong

Doumen drive

Method: Pneumatic


Storage bin

Unload hight:3100mm


Motor Drum 50100-15KW-2.5 1 Zibo, Shandong
Annular flat belt



1000×5-21.5meters(nylon belt) 1 Hebei
Belt Conveyor Idler φ89×375 1set Beian,Shandong
Belt Conveyor Idler φ89×1150 1set Beian,Shandong
Vertical Idler   1set Beian,Shandong
Final storage bin


Iron plate adopts 5mm model

1 Beian,Shandong
Vibrating equipment 0.5KW 1 Xinxiang,Henan
Electric bell   1 Beian,Shandong
8 Air system Electromagnetic valve 4V310 2 Zhejiang
Motor Y132S1-2-5.5KWB3 1 Beian,Shandong
Air compressor 0.67/7-5.5KW 1


Air cylinder


100×250 2
9 Electric control system Electronics components   1 Chint Delixi

Electrical devices are optional

using 485 communication connection

Control System   1 Beian,Shandong
Host computer   1 Lenovo
Monitor   1 Lenovo
Inverter 3.7kw 2
Inverter 5.5kw7.5kw 2
11 Random accessories Specific tools   1 Beian,Shandong
Instruction   1 Beian,Shandong
Circuit diagram   1 Beian,Shandong
Certificate   1 Beian,Shandong



Note: 1 Due to technical improvement,the origin of purchased parts and the model of technical parameters may be changed, but the functions are not worse than the existing ones;

2 The buyer needs to prepare the following facilities: the concrete foundation of the mixing station, the power supply to the power distribution cabinet of the mixing station and the water storage source of the mixing station; the mechanical oil required for the equipment, and the necessary lightning protection system in the mixing station.


The mobile stabilized soil mixing plant is an ideal choice for construction of highways, city roads, airports, and sports fields, etc., due to its high level of technology. Besides, its huge range of raw material, including quicklime, slaked lime, soil, sandstone, fly ash, and cement, all ensure that the produced base materials, such as cement-stabilized gravel and lime-soil stabilized materials, are both accurate in proportion and uniform in mixing.

A further advantage of the mobile stabilized soil mixing plant is that it can guarantee top-notch engineering construction, with no wastes produced. Furthermore, it even prevents soil erosion by maintaining soil fertility.


Support and Services:

Mobile Soil Mixing Plant Technical Support and Service

We provide comprehensive technical support and service for our Mobile Soil Mixing Plant. Our team of specialist engineers and technicians provide round-the-clock assistance and can be contacted via phone, email, or through our online support portal.

We offer maintenance and repairs, as well as preventative maintenance packages, to ensure our products performance and longevity. We also provide training and on-site support to ensure our customers are fully supported and able to make the most of their Mobile Soil Mixing Plant.

Our technical support and service team are committed to providing the best possible experience for our customers and strive to ensure all enquiries are responded to promptly and efficiently.
