Large Volume Automated Stabilized Soil Mixing Plant Foundation Free Type

1 unit

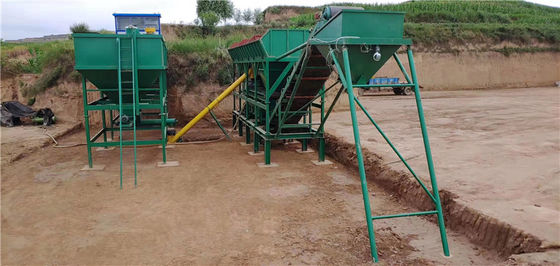

Large Volume Automated Stabilized Soil Mixing Plant  Foundation Free Type
Features Gallery Product Description Request A Quote
Mixing Efficiency: High
Product Name: Mobile Soil Mixing Plant
Output Rate: 300t/h 400t/h 500t/h 600t/h
Measurement Method: Computer Measurement
Control Method: Automation
Total Power: 90KW 100KW 130KW 140KW
Adjustment Method: Frequency
High Light:

Large Volume Stabilized Soil Mixing Plant


Automated Stabilized Soil Mixing Plant


Foundation Free mobile mixing plant

Basic Infomation
Place of Origin: China
Brand Name: Beian
Payment & Shipping Terms
Packaging Details: Bare Packing
Delivery Time: 15 days
Payment Terms: deposit, full payment before shipment
Supply Ability: 1-100 units/month
Product Description

Product Description:

The foundation-free mobile stabilized soil mixing plant is a new kind of mixing equipment with a small movable working area. It allows disassembly and transportation to the next location for continued use, with the goal of saving unnecessary expenses for customers. Furthermore, the plant is capable of mixing cement, stabilized soil, lime-stabilized soil, gravel-stabilized soil, and other base-stabilized materials. This mobile plant is suitable for constructing railways, highways, bridges, and other such construction with relatively small quantities of stabilized soil.

In addition, the Clear Road Mobile Stabilized Soil Mixing Plant has an easy-to-operate user interface and is highly efficient, with low power consumption. Depending on the customer's requirements, two, three, or four warehouses can be chosen, and special customization is also possible.



The introduction of foundation-free mobile stabilized soil mixing plant and horizontal cement silo:

1.1 Sensor with stable performance: the weighting unit adopts a high-sensitivity stainless steel pressure sensor. Compared with the traditional hinge sensor, it has less vibration, better stable signal and lower broken rate.

1.2 Batching scale with accurate measurement: The batching scale adopts the rear drive, which is more accurate in weighing compared with the front drive. The natural loose edge of the working surface on the belt reduces the impact of the belt tension on the weighting sensor, thereby ensuring the weighting signal more stable and accurate.

1.3 Flexible and accurate compensation method: The belt weighting unit composed of frequency speed conversion and professional computer and flexible and accurate measurement compensation method are adopted. Compared with the traditional volume measurement performance of slip speed regulation, the former measurement compensation is more timely and flexible; Accurate compensation makes aggregate ingredients more accurate; broken diagnosis alarm provided at any time can maintain the safe and continuous production of the entire equipment.

1.4 More practical conveying belt: The skirt belt is used to avoid the impact on the weighting sensor when the sidewall squeeze with the sand stones, so as to ensure that the data of the sensor is more real and effective, and the measurement is more accurate.

1.5 Professional qualification certification: We obtained the belt weighting measurement technology qualification certification issued by the Technical Supervision Bureau.

The foundation-free mobile water-stabilized mixing plant adopts a compact design concept and a reasonable layout, which greatly reduces the equipment working area; at actual operation, it has the advantages of simple operation, installation, debugging, and easy maintenance; by the terms of spare parts, we will selected Suitable and cost-effective accessories carefully,which could cut down your costs and create higher economic benefits. It is suitable for the construction of sub-bases such as roads, airports, railways as any grade.

Introduction of foundation-free mobile stabilized soil mixing plant and vertical cement silo:

2.1 The structure of the silo is compact, and it concentrates almost all the processes of stable soil production such as material storage, weighing, conveying, mixing, unloading and automatic control system.

2.2 The machine operation interface is humanized, the working performance is reliable, and it can still work stably in various terrible environments.

2.3 The two-horizontal-shaft forcing mixer have strong continuous operation capability, comprehensive mixing track, strong stirring movement, and fast average mixing capability.

2.4 The Silo has Quadruple sealing design,which can prevents slurry leakage from the shaft head, with high efficiency and less loss, and it is easy to install and maintain.The whole set of equipment can be quickly transported to the construction site and assembled on site, and construction can be started without debugging.

2.5 It has high degree of automation, strong maneuverability, simple operation and good stability. The structure is solid while the space layout is compact and reasonable, which ensures flexibility and production capacity at the same time. The mobile water stabilization station occupies very small area and is easy to move between sites, which greatly reduces the amount of basic engineering.


Technical Parameters:


The main performance parameters of YWDJ600,500,400,300 foundation-free mobile stabilized soil mixing plant:

Parameter Model YWDJ300 YWDJ400 YWDJ500 YWDJ600
Output Rate 300t/h 400t/h 500t/h 600t/h
Measurement Method Computer Measurement Computer Measurement Computer Measurement Computer Measurement
Measurement Method Frequency Frequency Frequency Frequency
Control Method Automation Automation Automation Automation
Weighing Accuracy(Aggregate) ±2% ±2% ±2% ±2%
Weighing Accuracy(Powder Material) ±0.5% ±0.5% ±0.5% ±0.5%
Monitor Rate 90KW 100KW 130KW 140KW
Total Weight 24t 24t 26t 26t
Total Power 90KW 100KW 130KW 140KW


YWDJ500-600YWDJ500-600 mobile stabilized soil mixing plant Sub-item configuration table

Number Part Name Specifications quantity place of origin Remark
1 Complete machine
  • Rated production capacity:gravel sand 100~500t/h
  • Total power:120KW
  • Maximum particle size of mixing aggregate:60mm
  • Aggregate measurement accuracy:±0.5-1%
  • Powder measurement accuracy:±0.5-1%
  • Assembly form:Detachable
  • Working Area:25m*15m

Configuration:4 hopper and 1 bin

Aggregate hopper,the iron plate of the finished product silo adopts 5mm, the channel steel of the inclined belt conveyor adopts No. 18, the aggregate hopper and the legs of the mixer adopt 20 I beams, and the inclined belt adopts nylon belt.

The tray is made of 200*200 I beam.








Aggregate Batching System


Aggregate hopper


Iron plate adopts 5 mm model

4 Beian,Shandong Hopper width:3200mm

Vibrating equipment


1.1KW 4 Xinxiang,Henan
Grid sieve Reinforced sieve 4 Beian,Shandong
Belt scale

Measurement accuracy


4 Beian,Shandong
Belt scale roller 4KW 2 Zibo, Shandong
  5.5KW 2
Pressure Sensor 150Kg 4 Bengbu, Anhui
Belt scale idler φ89×780 1set Beian,Shandong
Belt scale idler φ89×740 1set Beian,Shandong

Powder supply


Powder bin 70—100T 1 Beian,Shandong
Dust removal Pulse bag no Beian,Shandong
Gate valve 800×800 1 Beian,Shandong
Gate valve handwheel 320 2 Beian,Shandong
Screw conveyor φ325×2700mm 1 Beian,Shandong
Screw motor 5.5KW 1 Beian,Shandong
Steel wire rope φ6-10meters 1 Beian,Shandong
Cloth bag φ325 2 Beian,Shandong
Screw electronic scale Φ325×1400mm 1 Beian,Shandong
Electronic weighing motor 4KW 1 Beian,Shandong
4 Control system Control room   1

control method:

computer control,


water supply system


Submersible pump 2.2KW 1 Zibo, Shandong

Water mode:

frequency conversion

Pump flow 40m³/h 1 Beian,Shandong
Pipeline and accessories   1 Weifang, Shandong
6 Stirring part Blender   1 Beian,Shandong

Host type:

Double-shaft forced continuous

Motor 30KW 2


No. 1 factory

Blade High manganese alloy wear-resistant material 56 Weifang, Shandong
Reducer ZLY180 2 Zibo, Shandong
7 Storage part Inclined belt conveyor

Installation inclination


frame channel steel[18

1 Beian,Shandong

Doumen drive

Method: Pneumatic


storage bin

Unload hight:3100mm


Motor Drum 50100-15KW-2.5 1 Zibo, Shandong
Annular flat belt



1000×5-21.5meters(Nylon belt) 1 Hebei
Belt Conveyor Idler φ89×375 1set Beian,Shandong
Belt Conveyor Idler φ89×1150 1set Beian,Shandong
Vertical Idler   1set Beian,Shandong
Final storage bin


Iron plate adopts 5mm model

1 Beian,Shandong
Vibrating equipment 0.5KW 1 Xinxiang,Henan
Electric bell   1 Beian,Shandong
8 Air system Electromagnetic valve 4V310 2 Zhejiang
Motor Y132S1-2-5.5KWB3 1 Beian,Shandong
Air compressor 0.67/7-5.5KW 1


Air cylinder


100×250 2
9 Electric control system Electronics components   1 Chint Delixi

Electrical devices are optional

using 485 communication connection

Control System   1 Beian,Shandong
Host computer   1 Lenovo
Monitor   1 Lenovo
Inverter 3.7kw 2
Inverter 5.5kw7.5kw 3
11 Random accessories Specific tools   1 Beian,Shandong
Instruction   1 Beian,Shandong
Circuit diagram   1 Beian,Shandong
Certificate   1 Beian,Shandong



Note: 1 Due to technical improvement,the origin of purchased parts and the model of technical parameters may be changed, but the functions are not worse than the existing ones;

2 The buyer needs to prepare the following facilities: the concrete foundation of the mixing station, the power supply to the power distribution cabinet of the mixing station and the water storage source of the mixing station; the mechanical oil required for the equipment, and the necessary lightning protection system in the mixing station.


The mobile stabilized soil mixing plant can meet the construction requirements of various grass-root projects such as highways, city roads, airports, and sports fields. It is produced according to a high-tech standard and is able to accept various raw materials, including quicklime, slaked lime, soil, sandstone, fly ash, mortar and cement. It is capable not only of producing cement-stabilized gravel and lime-stabilized soil, but also of generating spaciousel concrete and other base materials.

Due to the accuracy of this plant's mixing materials, all of the produced base materials show a uniformity of mixing. Hence, it is a reliable machine to be used for engineering construction.


Support and Services:

Mobile Soil Mixing Plant Technical Support and Service

We offer a comprehensive technical support and service package for our Mobile Soil Mixing Plants. Our experienced team of technicians are on hand to provide advice and guidance to ensure that customers get the most out of their equipment. Our services include:

  • Installation service and commissioning
  • Regular maintenance and servicing
  • Emergency repairs
  • Operator training
  • Spare parts supply

We pride ourselves on our commitment to customer care and satisfaction. Our team is available 24/7 to provide support and advice whenever it is needed. If you have any questions or queries about our Mobile Soil Mixing Plant, please do not hesitate to contact us.
