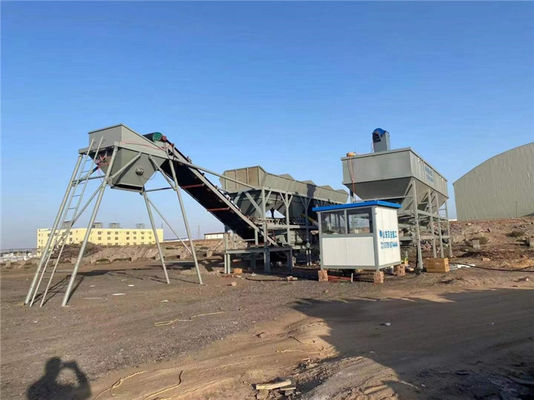

The foundation-free mobile stabilized soil mixing plant is a kind of new mixing equipment, which has the benefit of a limited movable working area and can be utilized in more places by dismantling and transporting it to the next required spot.
It can blend and produce cement and stabilized soil, lime-stabilized soil, gravel-stabilized soil and other foundation-stabilized materials, plus, it will save some unnecessary costs for customers, and is fit for mobile construction of railways, highways, bridges and other projects which requires relatively small amount of stabilized soil.
What is more, Clear Road Mobile Stabilized Soil Mixing Plant is both simple to run and energy efficient, and can alternatively provide 2, 3, 4 storage houses or can be custom made in accordance with special needs.
The foundation-free mobile water-stabilized mixing plant and horizontal cement silo together have several advanced features that make them ideal for industrial use.
Firstly, the weighing unit of the plant utilizes a high-sensitivity stainless steel pressure sensor. This is more accurate than traditional hinge sensors and lessen the likelihood of the signal shaking or becoming unstable.
Secondly, the rear drive used in the batching scale, together with the loose edges on the working surface of the belt, reduces the presence of any tension in the weighing sensor to protect the weighing signal. This leads to more accurate measurements.
Thirdly, the belt weighing unit is designed with a frequency speed converter, a professional computer, and a flexible and accurate measurement compensation method. This ensures that the measurement compensation is flexible and timely. Furthermore, accurate compensation accuracy is maintained, thus leading to high-grade aggregate ingredients.
Fourthly, the use of skirt belt in the plant prevents any type of impact on the weighing sensor due to the sand stones itself, preserving the accuracy of the statistics.
Lastly, the plant also has a professional qualification certification by the Technical Supervision Bureau. The reasonable layout, simple operation, installation, and easy maintenance create higher economic benefits.
In particular, the foundation-free mobile stabilized soil mixing plant and vertical cement silo have tremendous features that make them quite useful for industrial use. The machine operation interface is user-friendly, the structure is compact, the working reliability is high, and it is very durable. It has a strong continuous operation capability and strong stirring movement. It is also easy to install and maintain due to its Quadruple sealing design. It is highly automated and has great maneuverability as well as a reasonable space layout, enhancing its flexibility and production capacity.
The entire plant occupies a small area, is easy to move between site, and reduces the basic engineering to the greatest extent, making it fit for the construction of roads, airports, and railways. Furthermore, the cost of accessories is easy to bear, offering economic advantages to customers all across the board.
Specifications:
The main performance parameters of YWDJ600,500,400,300 foundation-free mobile stabilized soil mixing plant:
| Parameter Model | YWDJ300 | YWDJ400 | YWDJ500 | YWDJ600 |
| Output Rate | 300t/h | 400t/h | 500t/h | 600t/h |
| Measurement Method | Computer Measurement | Computer Measurement | Computer Measurement | Computer Measurement |
| Adjustment Method | Frequency | Frequency | Frequency | Frequency |
| Control Method | Automation | Automation | Automation | Automation |
| Weighing Accuracy(Aggregate) | ±2% | ±2% | ±2% | ±2% |
| Weighing Accuracy(Powder Material) | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Monitor Rate | 90KW | 100KW | 130KW | 140KW |
| Total Weight | 24t | 24t | 26t | 26t |
| Total Power | 90KW | 100KW | 130KW | 140KW |
YWDJ500-600YWDJ500-600 mobile stabilized soil mixing plant Sub-item configuration table
| Number | Part Name | Specifications | quantity | place of origin | Remark | |
| 1 | Complete machine |
Configuration:4 hopper and 1set of cement metering(without cement silo) |
Aggregate hopper,the iron plate of the finished product silo adopts 5mm, the channel steel of the inclined belt conveyor adopts No. 18, the aggregate hopper and the legs of the mixer adopt 20 I beams, and the inclined belt adopts nylon belt. The tray is made of 200*200 I beam.
|
|||
| 2 |
Aggregate Batching System
|
Aggregate hopper |
8m³ Iron plate adopts 5 mm model |
4 | Beian,Shandong | Hopper width:3200mm |
|
Vibrating equipment
|
1.1KW | 4 | Xinxiang,Henan | |||
| Grid sieve | Reinforced sieve | 4 | Beian,Shandong | |||
| Belt scale |
Measurement accuracy ±0.5-1% |
4 | Beian,Shandong | |||
| Belt scale roller | 4KW | 2 | Zibo, Shandong | |||
| 5.5KW | 2 | |||||
| Pressure Sensor | 150Kg | 4 | Bengbu, Anhui | |||
| Belt scale idler | φ89×780 | 1set | Beian,Shandong | |||
| Belt scale idler | φ89×740 | 1set | Beian,Shandong | |||
| 3 |
Powder supply system |
Powder bin | 70—100T | No | No | |
| Dust removal | Pulse bag | No | Beian,Shandong | |||
| Gate valve | 800×800 | 1 | Beian,Shandong | |||
| Gate valve handwheel | 320 | 2 | Beian,Shandong | |||
| Screw conveyor | φ325×2700mm | 1 | Beian,Shandong | |||
| Screw motor | 5.5KW | 1 | Beian,Shandong | |||
| Steel wire rope | φ6－10meters | 1 | Beian,Shandong | |||
| Cloth bag | φ325 | 2 | Beian,Shandong | |||
| Screw electronic scale | Φ325×1400mm | 1 | Beian,Shandong | |||
| Electronic weighing motor | 4KW | 1 | Beian,Shandong | |||
| 4 | Control system | Control room | 1 |
control method: computer control, |
||
| 5 |
water supply system
|
Submersible pump | 2.2KW | 1 | Zibo, Shandong |
Water mode: frequency conversion |
| Pump flow | 40m³/h | 1 | Beian,Shandong | |||
| Pipeline and accessories | 1 | Weifang, Shandong | ||||
| 6 | Stirring part | Blender | 1 | Beian,Shandong |
Host type: Double-shaft forced continuous |
|
| Motor | 30KW | 2 | Motor No. 1 factory | |||
| Blade | High manganese alloy wear-resistant material | 56 | Weifang, Shandong | |||
| Reducer | ZLY180 | 2 | Zibo, Shandong | |||
| 7 | Storage part | Inclined belt conveyor |
Installation inclination Q=30° frame channel steel[18 |
1 | Beian,Shandong |
Doumen drive Method: Pneumatic
Storage bin Unload hight:3100mm
|
| Motor Drum | 50100－15KW－2.5 | 1 | Zibo, Shandong | |||
|
1000×5－21.5meters(nylon belt) | 1 | Hebei | |||
| Belt Conveyor Idler | φ89×375 | 1set | Beian,Shandong | |||
| Belt Conveyor Idler | φ89×1150 | 1set | Beian,Shandong | |||
| Vertical Idler | 1set | Beian,Shandong | ||||
| Final storage bin |
5m³(accumulation) Iron plate adopts 5mm model |
1 | Beian,Shandong | |||
| Vibrating equipment | 0.5KW | 1 | Xinxiang,Henan | |||
| Electric bell | 1 | Beian,Shandong | ||||
| 8 | Air system | Electromagnetic valve | 4V310 | 2 | Zhejiang | |
| Motor | Y132S1－2－5.5KWB3 | 1 | Beian,Shandong | |||
| Air compressor | 0.67/7－5.5KW | 1 | ||||
|
Air cylinder
|
100×250 | 2 | ||||
| 9 | Electric control system | Electronics components | 1 | Chint Delixi |
Electrical devices are optional using 485 communication connection |
|
| Control System | 1 | Beian,Shandong | ||||
| Host computer | 1 | Lenovo | ||||
| Monitor | 1 | Lenovo | ||||
| Inverter | 3.7kw | 2 | ||||
| Inverter | 5.5kw7.5kw | 3 | ||||
| 11 | Random accessories | Specific tools | 1 | Beian,Shandong | ||
| Instruction | 1 | Beian,Shandong | ||||
| Circuit diagram | 1 | Beian,Shandong | ||||
| Certificate | 1 | Beian,Shandong | ||||
Note: 1 Due to technical improvement,the origin of purchased parts and the model of technical parameters may be changed, but the functions are not worse than the existing ones;
2 The buyer needs to prepare the following facilities: the concrete foundation of the mixing station, the power supply to the power distribution cabinet of the mixing station and the water storage source of the mixing station; the mechanical oil required for the equipment, and the necessary lightning protection system in the mixing station.
The mobile stabilized soil mixing plant is specially designed for the construction of fundamental materials such as highways, city roads, airports, and sports fields as well. It is made with highly advanced technology, thus it provides more efficiency while in operational state. Moreover, it can use a variety of raw materials such as quicklime, slaked lime, soil, sandstone, fly ash, cement and so on.
The mixing plant can produce cement-stabilized gravel, lime-soil stabilized materials, compressible concrete and other base materials with great precision. The mixture has a uniform consistency which makes it ideal for various engineering projects.
We provide technical support and services for Mobile Soil Mixing Plant. Our team of experienced technicians can provide you with the best support for the product. We offer technical assistance in the form of telephone support, online support, and email support. We also provide on-site services and maintenance. Our technicians are highly skilled and knowledgeable to ensure that your Mobile Soil Mixing Plant is running smoothly and efficiently. We also provide training and tutorials to help you understand the product better and use it effectively. If you have any questions or concerns about the product, you can always contact us for help.
The Mobile Soil Mixing Plant is packaged and shipped in a highly secure and professional manner. We use durable and strong cardboard boxes with bubble wrap and foam cushioning to ensure the product is kept safe during transit. All our shipping boxes are designed with safety and durability in mind.
Our packaging is designed to keep the Mobile Soil Mixing Plant safe and secure from any potential damages during the transportation process. We also use plastic shrink wrap to secure the product from any exterior weathering, dirt, or dust.
Each Mobile Soil Mixing Plant is carefully inspected prior to shipping to ensure the product is in perfect condition. We provide full tracking information and insurance for all our shipments, giving you peace of mind that your purchase is safe and secure.
