Foundation Free Soil Cement Mixing Plant Ready Mix Plants Small Scale

1 unit
Foundation Free Soil Cement Mixing Plant Ready Mix Plants Small Scale
Features Gallery Product Description Request A Quote
Product Name: Mobile Soil Mixing Plant
Mixing Type: Mobile
Output Rate: 300t/h 400t/h 500t/h 600t/h
Mixing Speed: High
Control Method: Automation
Total Power: 90KW 100KW 130KW 140KW
High Light:

Ready Mix Plants Small Scale


Foundation Free Soil Cement Mixing Plant


Soil Cement Mixing Plant Small Scale

Basic Infomation
Place of Origin: China
Brand Name: Beian
Payment & Shipping Terms
Packaging Details: Bare Packing
Delivery Time: 15 days
Payment Terms: deposit, full payment before shipment
Supply Ability: 1-100 units/month
Product Description

Product Description:

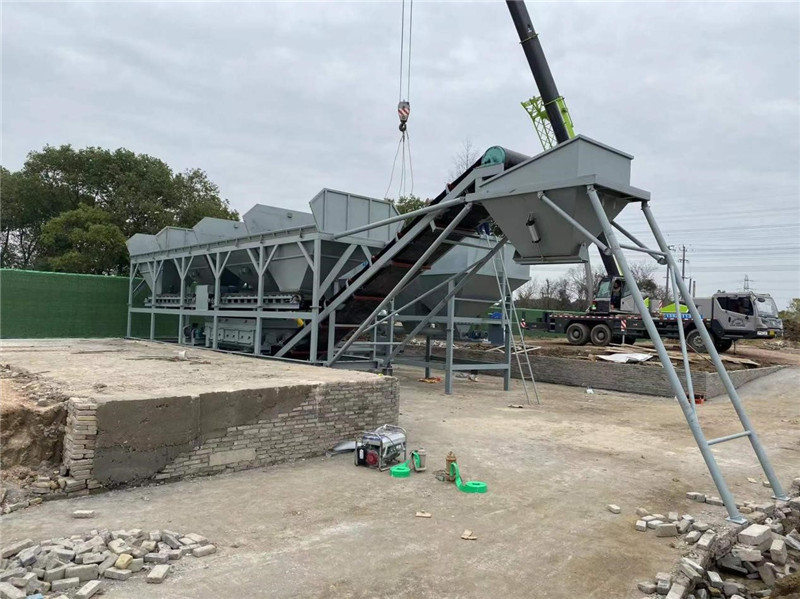

The foundation-free mobile stabilized soil mixing plant is a piece of equipment designed to mix cement and stabilized soil, lime-stabilized soil, gravel-stabilized soil and other base-stabilized materials. This type of mixing plant offers great advantages, such as ease of transportation and storage due to its small working area, and it is suitable for relatively small-scale construction of railway, highway, bridges and other projects.

Clear Road Mobile Stabilized Soil Mixing Plant has a high output and low power consumption, making it very efficient and easy to operate. Customers can choose from a variety of options based on requirements, including 2 warehouses, 3 warehouses, 4 warehouses, or custom-made models.



Introduction of foundation-free mobile stabilized soil mixing plant and horizontal cement silo

The foundation-free mobile stabilized soil mixing plant adopts a compact design concept and reasonable layout which greatly reduces the equipment working area. It is suitable for the construction of various grade sub-bases such as roads, airports, and railways. With simple operation, installation, debugging, and easy maintenance, spare parts are carefully selected to make it cost-efective and maximize the economic benefit.

The weighing unit of the mixing plant adopts a high-sensitivity stainless steel pressure sensor. Compared with the traditional hinge sensor, it has less shaking, better stable signal and lower broken rate. In addition, the batching scale adopts the rear drive which is more accurate in weighing than the front drive. The natural loose edge of the working surface on the belt can reduce the impact of belt tension on the weighing sensor, thereby ensuring weighing signal more stable and accurate. Frequency speed conversion and professional computer results in more accurate measurement with timely and flexible compensation.Broken diagnosis alarm can maintain a safe and continuous production which maximizes the effectiveness of the equipment.Furthermore, the skirt belt is used to avoid the impact on the weighing sensor when the sidewall squeeze with the sand stones. This is to make sure that the data from the sensor is more real and effective, and the measurement is more accurate. Lastly, the company has obtained the belt weighing measurement technology qualification certification issued by the Technical Supervision Bureau.

Introduction of foundation-free mobile stabilized soil mixing plant and vertical cement silo

The vertical cement silo has a structure that is compact with almost all the processes of stable soil production such as material storage, weighing, conveying, mixing, unloading and automatic control system. The machine operation interface is humanized and working performance is reliable, which can stably work in various terrible environments. The two-horizontal-shaft forcing mixer has strong continuous operation capability which provides a comprehensive mixing track with strong stirring movement and fast average mixing capability. Quadruple sealing design that prevents slurry leakage from the shaft head is highly efficient with less loss and easy to install and maitain.

The mobile water stabilization station has a high degree of automation, strong maneuverability, simple operation and good stablilty. The structure is solid while the space layout is compact and reasonable, which ensures flexibility and production capacity at the same time. It occupies very small area and is easy to move between sites, which greatly reduces the amount of basic engineering. It can be quickly transported to the construction site and assembled on site, and construction can be started without debugging.


Technical Parameters:


The main performance parameters of YWDJ600,500,400,300 foundation-free mobile stabilized soil mixing plant:

Parameter Model YWDJ300 YWDJ400 YWDJ500 YWDJ600
Output Rate 300t/h 400t/h 500t/h 600t/h
Measurement Method Computer Measurement Computer Measurement Computer Measurement Computer Measurement
Adjustment method Frequency Frequency Frequency Frequency
Control Method Automation Automation Automation Automation
Weighing Accuracy(Aggregate) ±2% ±2% ±2% ±2%
Weighing Accuracy(Powder Material) ±0.5% ±0.5% ±0.5% ±0.5%
Monitor Rate 90KW 100KW 130KW 140KW
Total Weight 24t 24t 26t 26t
Total Power 90KW 100KW 130KW 140KW


YWDJ500-600YWDJ500-600 mobile stabilized soil mixing plant Sub-item configuration table

Number Part Name Specifications quantity place of origin Remark
1 Complete machine
  • Rated production capacity:gravel sand 100~500t/h
  • Total power:130KW
  • Maximum particle size of mixing aggregate:60mm
  • Aggregate measurement accuracy:±0.5-1%
  • Powder measurement accuracy:±0.5-1%
  • Assembly form:Detachable
  • Working Area:27m*15m
  • Configuration:4 hopper and 1 horizontal cement bin(with precipitator)


Aggregate hopper,the iron plate of the finished product silo adopts 5mm, the channel steel of the inclined belt conveyor adopts No. 18, the aggregate hopper and the legs of the mixer adopt 20 I beams, and the inclined belt adopts nylon belt.

The tray is made of 200*200 I beam.








Aggregate Batching System


Aggregate hopper




4 Beian,Shandong Hopper width:3200mm

Vibrating equipment


1.1KW 4 Xinxiang,Henan
Grid sieve Reinforced sieve 4 Beian,Shandong
Belt scale

Measurement accuracy


4 Beian,Shandong
Belt scale roller 4KW 2 Zibo, Shandong
  5.5KW 2
Pressure Sensor 150Kg 4 Bengbu, Anhui
Belt scale idler φ89×780 1set Beian,Shandong
Belt scale idler φ89×740 1set Beian,Shandong

Powder supply


Powder bin 70—100T 1 Horizontal style
Dust removal Pulse bag 1 Beian,Shandong
Gate valve 800×800 4 Beian,Shandong
Gate valve handwheel 320 8 Beian,Shandong
Screw conveyor φ325×3600mm 2 Beian,Shandong
Screw motor 7.5KW 2 Beian,Shandong
Steel wire rope φ6-10meters 1 Beian,Shandong
Cloth bag φ325 2 Beian,Shandong
Screw electronic scale Φ325×1400mm 1 Beian,Shandong
Electronic weighing motor 4KW 1 Beian,Shandong
High speed spiral 11KW 6.2meters 1 Jinan Mikosi
4 Control system Control room   1

control method:

computer control,


water supply system


Submersible pump 2.2KW 1 Zibo, Shandong

Water mode:

frequency conversion

Pump flow 40m³/h 1 Beian,Shandong
Pipeline and accessories   1 Weifang, Shandong
6 Stirring part Blender   1 Beian,Shandong

Host type:

Double-shaft forced continuous

Motor 30KW 2 Motor No. 1 Factory
Blade High manganese alloy wear-resistant material 56 Weifang, Shandong
Reducer ZLY180 2 Zibo, Shandong
7 Storage part Inclined belt conveyor

Installation inclination


frame channel steel[18

1 Beian,Shandong

Doumen drive

Method: Pneumatic


Storage bin

Unload hight:3100mm


Motor Drum 50100-15KW-2.5 1 Zibo, Shandong
Annular flat belt



1000×5-21.5meters 1 Hebei
Belt Conveyor Idler φ89×375 1set Beian,Shandong
Belt Conveyor Idler φ89×1150 1set Beian,Shandong
Vertical Idler   1set Beian,Shandong
Final storage bin




1 Beian,Shandong
Vibrating equipment 0.5KW 1 Xinxiang,Henan
Electric bell   1 Beian,Shandong
8 Air system Electromagnetic valve 4V310 2 Zhejiang
Motor Y132S1-2-5.5KWB3 1 Beian,Shandong
Air compressor 0.67/7-5.5KW 1


Air cylinder


100×250 2
9 Electric control system Electronics components   1 Chint Delixi

Electrical devices are optional

using 485 communication connection

Control System   1 Beian,Shandong
Host computer   1 Lenovo
Monitor   1 Lenovo
Inverter 3.7kw 2
Inverter 5.5kw7.5kw 3
11 Random accessories Specific tools   1 Beian,Shandong
Instruction   1 Beian,Shandong
Circuit diagram   1 Beian,Shandong
Certificate   1 Beian,Shandong



Note: 1 Due to technical improvement,the origin of purchased parts and the model of technical parameters may be changed, but the functions are not worse than the existing ones;

2 The buyer needs to prepare the following facilities: the concrete foundation of the mixing station, the power supply to the power distribution cabinet of the mixing station and the water storage source of the mixing station; the mechanical oil required for the equipment, and the necessary lightning protection system in the mixing station.


Mobile Stabilized Soil Mixing Plant

The mobile stabilized soil mixing plant is a high-tech mixing equipment highly suitable for the construction of grassroots materials such as highways, city roads, airports, and sports fields. It can use many different raw materials, including quicklime, slaked lime, soil, sandstone, fly ash, and cement to produce a variety of stable base materials such as cement-stabilized gravel, lime-soil stabilized materials, compressible concrete, etc. for engineering construction.

All of the mixing is performed with a uniform proportion, ensuring accuracy in the produced materials. Moreover, the mobile stabilized soil mixing plant is capable of serving different construction services, making it highly suitable for a variety of projects.


Support and Services:

Technical Support and Services for Mobile Soil Mixing Plant

We provide a comprehensive set of services and technical support for our Mobile Soil Mixing Plant. Our team of experienced engineers is available to provide advice, troubleshoot issues, and provide assistance with installation, maintenance and repairs.

We provide pre-sales and after-sales services to ensure that our customers get the most out of their investments. Our customer service representatives are available to answer any questions, provide assistance, and provide guidance on how to use the product. We also offer online and telephone technical support to help you in the event of any problems.

We provide regular maintenance and servicing for our Mobile Soil Mixing Plant to keep it running smoothly and efficiently. Our team of experienced technicians can inspect, diagnose, and repair any issues that might arise. We also provide replacement parts and accessories for our Mobile Soil Mixing Plant.

We strive to provide the best possible customer experience and are committed to providing the highest quality of technical support and services for our Mobile Soil Mixing Plant. If you have any questions or need assistance, please contact us and we will be happy to help.


Packing and Shipping:

Packaging and Shipping
Mobile Soil Mixing Plant products are shipped in containers. They are carefully packaged with appropriate padding, boxes, and pallets to ensure that they arrive in perfect condition. The goods are securely fastened to the pallet to protect them from any damage during transport. The pallets are then shrink-wrapped to further secure the goods and are ready for shipping.
